Overview - Tension Struts

WARNING: This page is about a different variant/trim than selected.

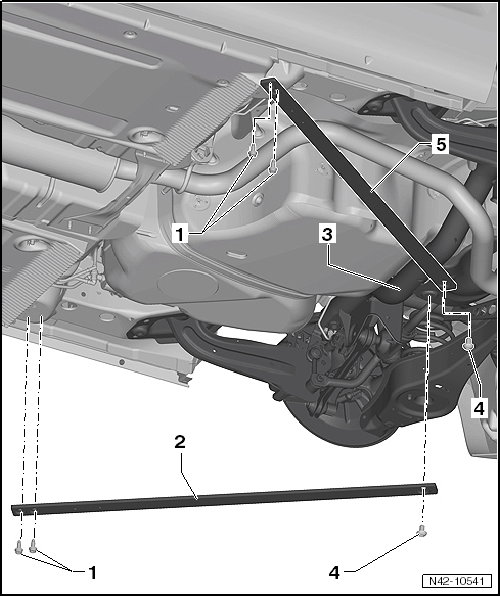

Fig 1: Identifying Tension Struts Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolt
- 40 Nm +45°
- Replace after removing .
Right Tension Strut
- Removing and installing . Refer to TENSION STRUTS, REMOVING AND INSTALLING
Subframe
Bolt
- 90 Nm +45°
- Replace after removing .
  NOTE:
  Tension strut screws to subframe should only be tightened when vehicle is resting on wheels.
Left Tension Strut
- Removing and installing . Refer to TENSION STRUTS, REMOVING AND INSTALLING
