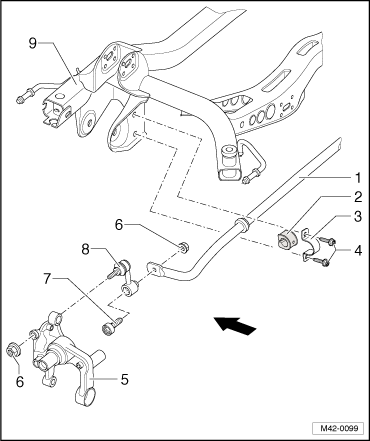

Overview - Stabilizer Bar
WARNING: This page is about a different variant/trim than selected.
- Stabilizer Bar
- There are different versions of the suspension. Refer to VEHICLE DATA LABEL
- Removing and installing . Refer to STABILIZER BAR, REMOVING AND INSTALLING
- Bearing
- Replace bearings always on both sides of vehicle
- Clamp
- Bolt
- 20 Nm + 90°
- Replace after removing .
- Tighten uniformly
- Always tighten the threaded connections in curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT, REAR AXLE, LIFTING VEHICLES WITH COIL SPRING .
- Wheel Bearing Housing
- Nut
- 45 Nm
- Replace after removing .
- Self-locking
- Bolt
- Replace after removing .
- Self-locking
- Coupling Rod
- Connects stabilizer bar to trailing arm/wheel bearing housing
- Subframe
