Headlamp Carrier Plate

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Torque Wrench 1331 5-50 Nm VAG 1331

Illustrations depict removal and installation of the left carrier plate.

The adjusting mechanisms on the carrier plate make it possible to correct the position of the headlamp.

Removal

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Remove each of the front wheels.

-- Remove the headlamp, refer to HEADLAMP .

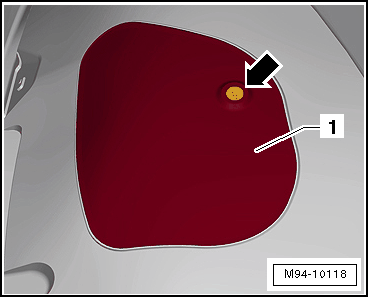

-- Remove the bolt -arrow- on the access cover -1- and remove the access cover -1-.

Fig 1: Identifying Bolt And Access Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

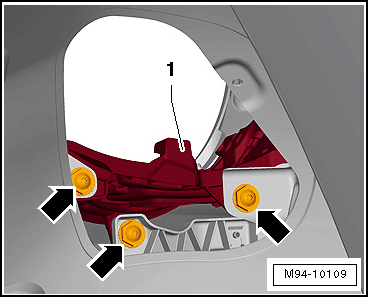

-- Remove the bolts -arrows- on the carrier plate -1-.

Fig 2: Identifying Carrier Plate And Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

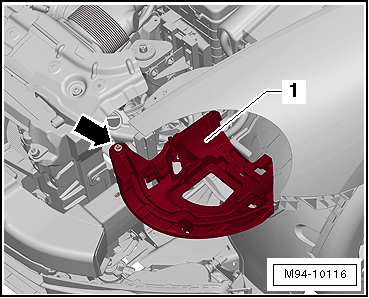

-- Remove the upper side bolt -arrow- on the carrier plate -1-.

Fig 3: Identifying Upper Side Bolt And Carrier Plate

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the carrier plate -1- forward.

Installation

Install in reverse order of removal. Note the following:

-- Install the headlamp, refer to HEADLAMP .

-- Make sure the gap around the headlamp is even all the way around, refer to HEADLAMP INSTALLED POSITION, CORRECTING .

If the gap is uneven, then adjust the headlamp installed position, refer to HEADLAMP INSTALLED POSITION, CORRECTING .

-- Check headlamp for functions.

-- Check headlamp adjustment and adjust the headlamps, refer to HEADLAMP, AIMING .

Tightening Specifications

Refer to HALOGEN HEADLAMPS OVERVIEW or HID/XENON HEADLAMPS OVERVIEW .
