Headlamp, Aiming
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
Aiming Halogen headlamps, refer to MAINTENANCE PROCEDURES (CONVERTIBLE) .
Make sure that the adjusting element for horizontal adjustment is sealed off with a plug in the North American version.

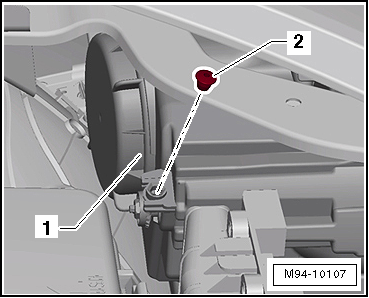

-- Remove the plugs -2- from the headlamp -1- before making the adjustment and reinstall the plug -2- after you have finished making the adjustment.
Adjust headlamps with gas-discharge bulbs: Perform a basic setting, refer to HEADLAMP, PERFORMING BASIC SETTING .
