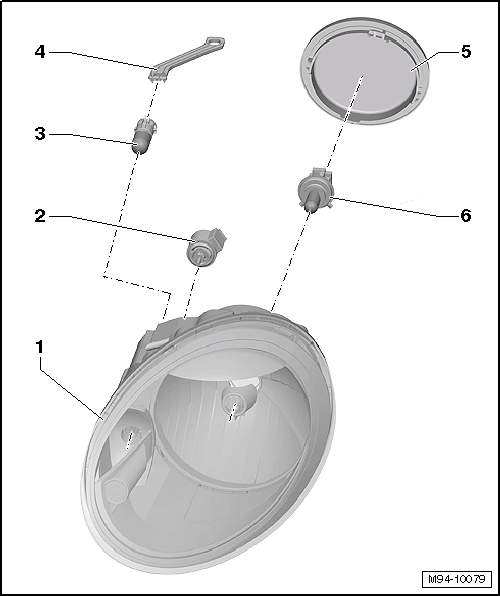

Halogen Headlamps Overview
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
- Headlamps
- Removal and installation, refer to HEADLAMP
- Carrier plate, removal and installation, refer to HEADLAMP CARRIER PLATE
- For checking the headlamp setting, refer to HEADLAMP INSTALLED POSITION, CORRECTING
- Aiming, refer to HEADLAMP, AIMING
- Left Headlamp Beam Adjustment Motor -V48- And Right Headlamp Beam Adjustment Motor -V49-
- Removal and installation, refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-
- Left Parking Lamp -M1- /Right Parking Lamp -M3-
- Bulb: 12 V/5 W
- Replacing, refer to LEFT/RIGHT SIDE MARKER LAMP BULB -M1- / -M3-
- Retainer
- Cap
- Left Low Beam Headlamp -M29- /Right Low Beam Headlamp -M31-
- Also included for the Left High Beam Headlamp -M30- and the Right High Beam Headlamp -M32-
- Bulb: H4 12 V/55 W
- Replacing, refer to LEFT/RIGHT LOW BEAM HEADLAMP BULB -M29- / -M31- AND LEFT/RIGHT HIGH BEAM HEADLAMP BULB -M30- / -M32-
No Illustration
- Carrier plate bolt tightening specification: 5 Nm
- Access cover bolt tightening specification: 2 Nm
