Removal And Installation: Headlamp

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removal and installation of the left headlamp is shown in the illustrations. Removal and installation of the right headlamp is identical.

Removal

-- Turn off the ignition and all electrical consumers and remove the ignition key.

The headlamp is locked onto the carrier plate -1- with the bracket -arrow A-.

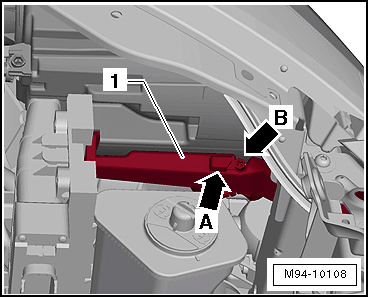

Fig 1: Identifying Carrier Plate

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Use a (Phillips® head) screwdriver to release the socket -arrow B-.

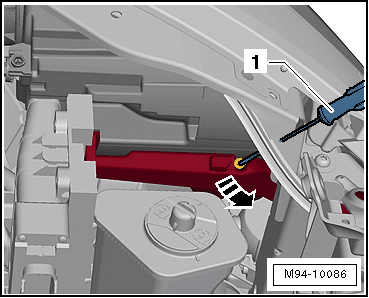

Fig 2: Turning Screwdriver 50 Degrees

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the screwdriver -1- about 50 degrees in the direction of the -arrow- in order to loosen the headlamp from the locking mechanism.

-- Remove the headlamp forward from the opening in the body.

-- Release and disconnect the connector from the headlamp.

Installation

Install in reverse order of removal. Note the following:

-- Connect and lock the connector -2- to the headlamp.

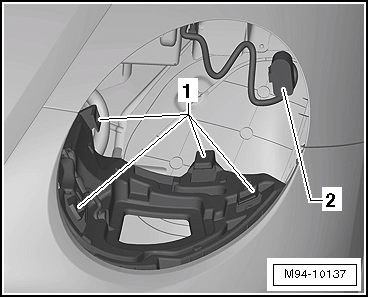

Fig 3: Identifying Guides

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the headlamp on the guides -1- and "carefully" slide it in all the way till it stops.

-- Turn the screwdriver -1- about 50 degrees in the opposite direction of the -arrow- in order to lock the headlamp.

Fig 4: Turning Screwdriver 50 Degrees

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The headlamp is locked when the audible "click" is heard.

-- Make sure the gap around the headlamp is even all the way around.

If the gap is uneven, then adjust the headlamp installed position, refer to HEADLAMP INSTALLED POSITION, CORRECTING .

-- Check headlamp for functions.

-- Check headlamp adjustment and adjust the headlamps, refer to HEADLAMP, AIMING .
