Transmission Housing Overview

WARNING: This page is about a different car, the 2014 Volkswagen Tiguan, 2013 Volkswagen Tiguan, and 2012 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

When installing the tapered roller bearing, install new shims which have the same thickness as the previous shims.

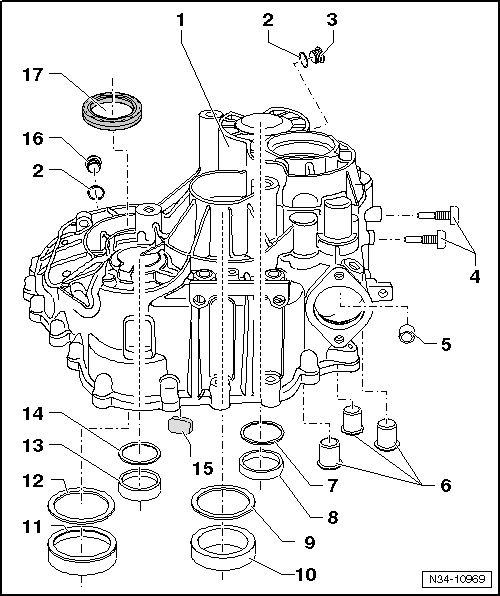

Fig 1: Installing Tapered Roller Bearing With New Shims
GWWN34-10969Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Transmission Housing
  2. Seal
    • Always replace
  3. Transmission Fluid Fill Plug
  4. Bolt
    • 35 Nm
    • Discontinued shortly after the start of production.
    • The threaded bore for the case is then closed.
  5. Bushing
    • For the gear shift shaft.
    • Removing, refer to Figure.
    • Installing, refer to Figure.
  6. Bushing
    • For the selector rod.
    • Removing, refer to Figure.
    • Installing, refer to Figure.
  7. Adjusting Shim
    • For the 3rd and 4th gear output shaft.
    • Pay attention to the thickness.
    • Will get damaged when being removed, always replace.
  8. Outer Race/Tapered Roller Bearing
    • For the 3rd and 4th gear output shaft.
    • Removing and installing, see -item 22- in 3RD AND 4TH GEAR OUTPUT SHAFT OVERVIEW .
    • When installing: install an adjusting shim -7- with the same thickness.
  9. Adjusting Shim
    • For the 1st and 2nd gear output shaft.
    • Pay attention to the thickness.
    • Will get damaged when being removed, always replace.
  10. Outer Race/Tapered Roller Bearing
    • For the 1st and 2nd gear output shaft.
    • Removing and installing, see -item 25- in 1ST AND 2ND GEAR OUTPUT SHAFT OVERVIEW .
    • When installing: install an adjusting shim -9- with the same thickness.
  11. Outer Race/Tapered Roller Bearing
  12. Adjusting Shim
  13. Outer Race/Tapered Roller Bearing
    • For the reverse gear output shaft.
    • Removing and installing, see -item 15- in REVERSE GEAR OUTPUT SHAFT OVERVIEW .
    • When installing: install an adjusting shim -14- with the same thickness.
  14. Adjusting Shim
    • For the reverse gear output shaft.
    • Pay attention to the thickness.
    • Will get damaged when being removed, always replace.
  15. Magnet
    • Secured in the transmission housing using sealing pasteAMV 188 200 03.
  16. Oil Drain Plug
    • 45 Nm
  17. Seal
