Left Stub Shaft And Seal

WARNING: This page is about a different car, the 2014 Volkswagen Tiguan, 2013 Volkswagen Tiguan, and 2012 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Slide Hammer-Complete Set VW 771
Additional Part For VW 771 VW 771/37
Torque Wrench (5-50 Nm) V.A.G 1331
Counter Hold Tool T10371
Thrust Piece 3305
Tensioning Strap T10038
Sealing Grease for Seal G 052 128 A1
Grease for Clutch Plate Splines G 000 100

Removing

-- Lift the vehicle.

-- Remove the noise insulation under the engine/transmission assembly. Refer to Description and Operation .

-- Remove the ball joint nuts -arrows- from the control arm.

Fig 1: Identifying Lower Control Arm And Bolts

Courtesy of AUDI OF AMERICA, LLC

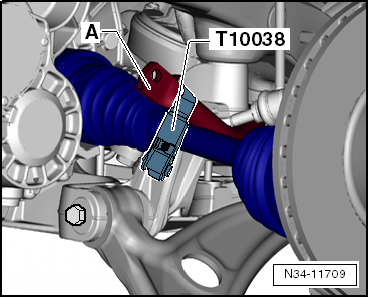

-- Remove the left drive axle from the transmission and secure it to the stabilizer bar -A-. Refer to Removal and Installation .

Fig 2: Removing Circlip And O-Ring From Stub Shaft

Courtesy of AUDI OF AMERICA, LLC

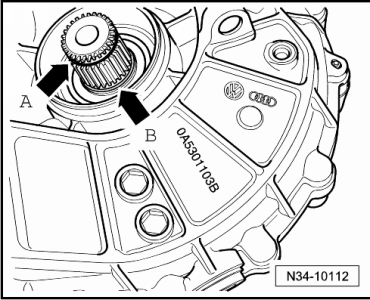

-- Remove the circlip -arrow A- and the O-ring -arrow B- from the stub shaft.

Fig 3: Identifying Stub Shaft Circlip and O-ring

Courtesy of AUDI OF AMERICA, LLC

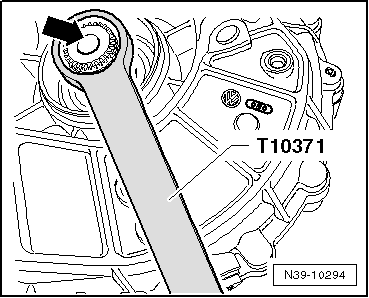

-- Counter hold the stub shaft using the counter hold tool T10371 and remove the bolt -arrow-.

Fig 4: Removing Stub Shaft Bolt With Special Tool T10371

Courtesy of AUDI OF AMERICA, LLC

-- Place a drip tray under the transmission.

-- Remove the stub shaft.

-- Remove the stub shaft using the slide hammer VW 771 and additional part For VW 771 VW 771/37.

Installing

-- Lightly lubricate the outer circumference of the new seal and install it using thrust piece 3305.

Fig 5: Driving Left Flanged Shaft Seal In Onto Stop

Courtesy of AUDI OF AMERICA, LLC

-- Fill half of the volume between the sealing and dust lips with sealing grease for seal G 052 128 A1.

-- Counter hold the stub shaft using the counter hold tool T10371 and tighten the bolt -arrow- to specification, see -item 20- in DIFFERENTIAL OVERVIEW .

Fig 6: Removing Stub Shaft Bolt With Special Tool T10371

Courtesy of AUDI OF AMERICA, LLC

-- Then, install a new circlip -arrow A- and a new O-ring -arrow B-.

Fig 7: Identifying Stub Shaft Circlip and O-ring

Courtesy of AUDI OF AMERICA, LLC

-- Lubricate the stub shaft splines with grease for clutch plate splines G 000 100.

-- Install the left drive axle. Refer to REMOVAL AND INSTALLATION .

-- Check the transmission fluid level. Refer to TRANSMISSION FLUID LEVEL, CHECKING .

-- Install the noise insulation under the engine/transmission. Refer to Description And Operation .
