Differential, Adjusting

WARNING: This page is about a different car, the 2014 Volkswagen Tiguan, 2013 Volkswagen Tiguan, and 2012 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Magnetic Plate 50 mm Dia. 385/17
Dial Gauge Holder VW 387
Thrust Plate VW 401
Thrust Plate VW 402
Punch VW 408 A
Thrust Disc VW 412
Crown Wheel Adjustment Device VW 521
Thrust Piece T10266
Assembly Device 3291
Thrust Pad VW 472/1
Kukko Extractor 56-70 mm 21/8
Kukko Support 22/2

The differential must be adjusted, when the

Differential housing

is replaced.

-- Installing the outer race/tapered roller bearing without a adjustment shim into the clutch housing.

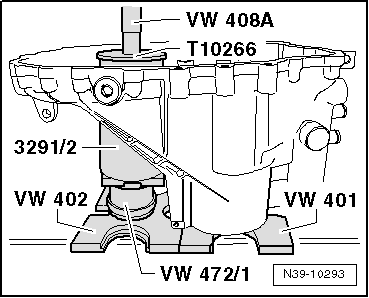

Fig 1: Installing Outer Race/Tapered Roller Bearing Into Clutch Housing

Courtesy of AUDI OF AMERICA, LLC

-- Install the tapered roller bearing outer race with a 0.65 mm adjustment shim into the transmission housing.

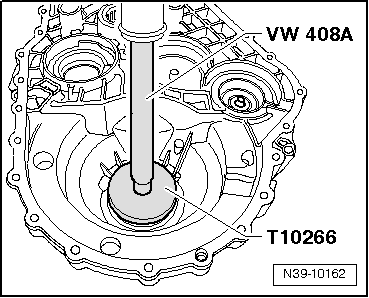

Fig 2: Installing Outer Race/Tapered Roller Bearing Into Transmission Housing

Courtesy of AUDI OF AMERICA, LLC

-- Insert the differential into the clutch housing.

-- Position the transmission housing and tighten the 5 bolts to specification.

-- Install the locking sleeve VW 521/4 on the differential housing (transmission housing side) with the shell VW 521/13.

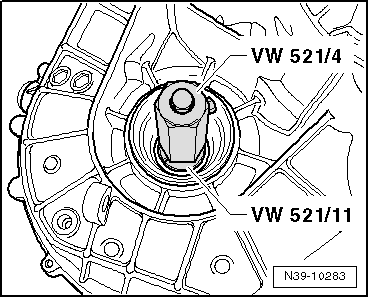

Fig 3: Identifying Special Tools - VW 521/4 VW 521/13

Courtesy of AUDI OF AMERICA, LLC

-- Install the dial gauge holder VW 387 on the clutch housing and set the gauge with 1 mm pretension to "0".

-- Swivel the transmission in the assembly stand with the clutch housing upward.

-- Push the differential toward the clutch housing and rotate eight times at the same time.

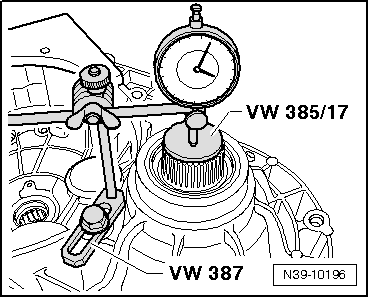

Fig 4: Identifying Shim Using Dial Gauge VW 521/4

Courtesy of AUDI OF AMERICA, LLC

-- Move the differential up and down, and read the play on the dial gauge and note. (example: 0.70 mm).

Determine the shim according to the table, refer to DIFFERENTIAL, ADJUSTING .

The measurement must be performed as shown in the figure otherwise the measured value will be wrong.

Shim, Determining

-- Remove the transmission housing.

-- Remove the tapered roller bearing outer race from the clutch housing.

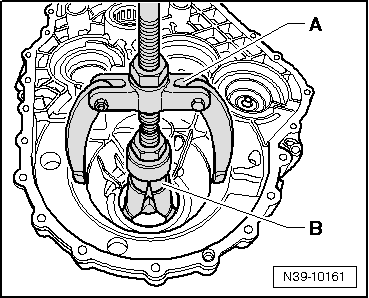

Fig 5: Removing Outer Race/Tapered Roller Bearing From Clutch Housing

Courtesy of AUDI OF AMERICA, LLC

A - Support, for example, 22/2

B - Extractor 56-70 mm, for example 21/8

-- First place the washer into the clutch housing.

NOTE:

Note the installed position of the washer, the shoulder on the inner diameter points toward the seal.

-- Then, place the shim of the determined thickness (in the example: 0.95 mm).

The following adjusting shims are available:

Bearing Play	Adjusting Shim
Measured value (mm)	Thickness (mm)
0.359 ••• 0.430 0.431 ••• 0.480 0.481 ••• 0.530	0.65 0.70 0.75
0.531 ••• 0.580 0.581 ••• 0.630 0.631 ••• 0.680	0.80 0.85 0.90
0.681 ••• 0.730 0.731 ••• 0.780 0.781•••0.830	0.95 1.00 1.05
0.831 ••• 0.880 0.881 ••• 0.930 0.931 ••• 0.980	1.10 1.15 1.20
0.981 ••• 1.030 1.031 ••• 1.080 1.081 ••• 1.130	1.25 1.30 1.35
1.131 ••• 1.250	1.40

NOTE:

For the correct shims, refer to the Parts Information.

If the measured shim thickness is larger than those listed in the table, then install two shims that add up to the necessary thickness.

Tolerance variations make it possible to find the exact shim thickness required.

Fig 6: Installing Outer Race/Tapered Roller Bearing Into Clutch Housing

Courtesy of AUDI OF AMERICA, LLC

-- Install the outer race again and tighten the transmission housing.
