Overview - Output Shaft 2

WARNING: This page is about a different variant/trim than selected.

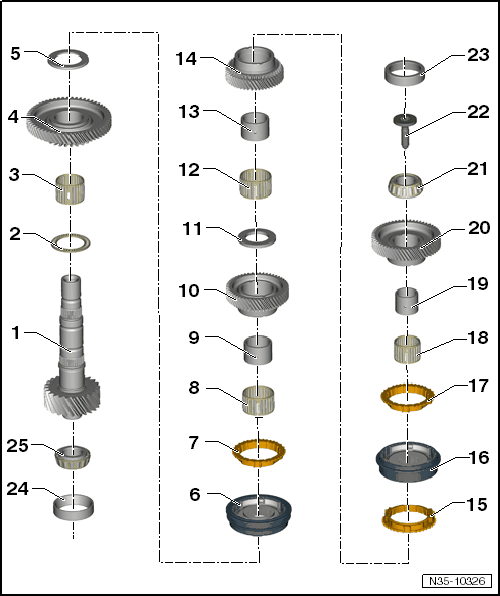

Fig 1: Exploded View Of Output Shaft 2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Output Shaft 2
Axial Needle Bearing
Needle Bearing
Reverse Drive Gear
Washer
Locking Collar and 6th Gear Synchronizer Hub
- Disassembling and Assembling. Refer to LOCKING COLLARS AND SYNCHRONIZER HUB FOR OUTPUT SHAFT 2, DISASSEMBLING AND ASSEMBLING .
Synchronizer Ring
Needle Bearing
Needle Bearing Sleeve
6th Gear Wheel
Washer
- To press in the output shaft the shaft is assembled up to this washer.
Needle Bearing
Needle Bearing Sleeve
7th Gear Wheel
Synchronizer Ring
Locking Collar and Synchronizer Hub for 5th and 7th Gears
- Disassembling and Assembling. Refer to LOCKING COLLARS AND SYNCHRONIZER HUB FOR OUTPUT SHAFT 2, DISASSEMBLING AND ASSEMBLING .
Synchronizer Ring
Needle Bearing
Needle Bearing Sleeve
5th Gear Wheel
Bearings
- Always replace the bearing from a shaft together.
Bolt
- Removing. Refer to OUTPUT SHAFT 2, DISASSEMBLING .
- Installing. Refer to OUTPUT SHAFT 2, ASSEMBLING .
- Always replace after removing.
- 60 Nm +90°
Bearing Shell
- Removing and Installing. Refer to TRANSMISSION HOUSING, SERVICING .
  - The bearing shells may not be interchanged. The are paired with the bearing.
Bearing Shell
- Removing and Installing. Refer to CLUTCH HOUSING, SERVICING .
  - The bearing shells may not be interchanged. The are paired with the bearing.
Bearings
- Always replace the bearing from a shaft together.
- Removing. Refer to Removing the Output Shaft 2 Bearing .
- Installing. Refer to Installing the Output Shaft 2 Bearing .
