Removing The Output Shaft 2 Bearing

WARNING: This page is about a different variant/trim than selected.

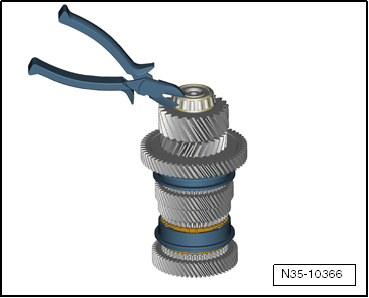

GWWN35-10366Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- First destroy the bearing cage.

NOTE:

So that the shaft does not fall downward when pressing in place suitable material under the press. It is also possible to hold the shaft by hand.

-- Remove the bearing inner race.

GWWN35-10348Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
