Locking Collars And Synchronizer Hub For Output Shaft 2, Disassembling And Assembling

WARNING: This page is about a different variant/trim than selected.
NOTE:

Before disassembling mark the installation position and direction of all components to each other.

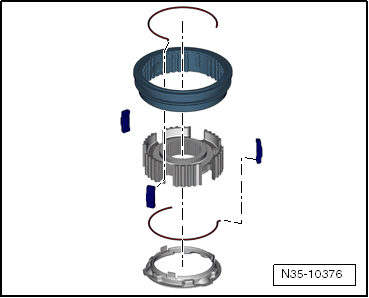

Fig 1: Exploded View Of Locking Collar And Synchronizer Hub For 6th Gear Wheel
GWWN35-10376Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Fig 2: Exploded View Of Locking Collar And Synchronizer Hub For 7th And 5th Gear Wheel
GWWN35-10377Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
