Rear Window Wiper System Overview

Refer to the Owner's Manual.

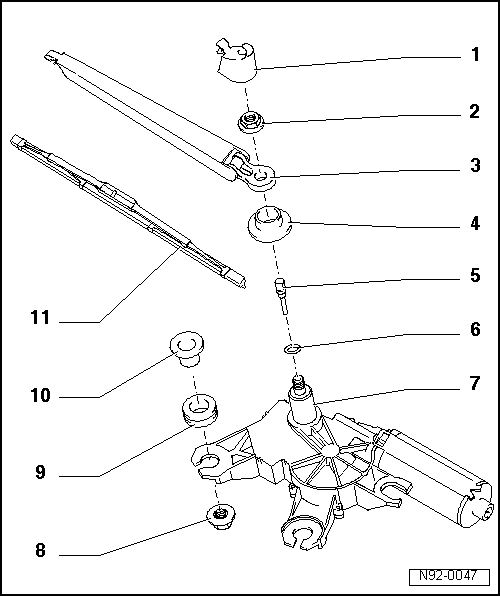

Fig 1: Identifying Rear Window Washer System Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Cap
2. Nut SW 13
   • 12 Nm
3. Wiper Arm
   • Removal and installation, refer to REAR WINDOW WIPER ARM .
   • Adjusting park position, refer to REAR WINDOW WIPER BLADE PARK POSITION, ADJUSTING .
4. Gasket
5. Spray Nozzle
   • Removing and installing, refer to REAR WINDOW WASHER SPRAY NOZZLE .
   • Adjusting, refer to REAR WINDOW WASHER SPRAY NOZZLE, ADJUSTING .
6. Sealing Ring
7. Rear Window Wiper Motor -V12-
   • Removing and installing, refer to REAR WINDOW WIPER MOTOR -V12- .
8. M6 Nut With Washer
   • 8 Nm
9. Rubber Ring
10. Spacer
11. Windshield Wiper
    • Removing and installing, refer to REAR WINDOW WIPER .
