Rear Window Wiper Blade Park Position, Adjusting

Special tools and workshop equipment required

• Torque Wrench V.A.G 1331

The distance -a- between wiper blade and lower edge of windshield must be 23 mm (0.9 inch).

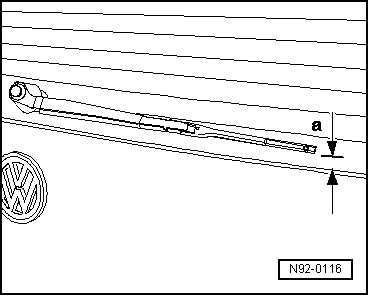

Fig 1: Identifying Gap Between Wiper Rubber And Lower Edge Of Windshield

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- If necessary, set end position of rear window wiper by offsetting wiper arm.

Remove wiper arm. Refer to REAR WINDOW WIPER ARM .

-- Tighten all threaded connections to the specification shown in TIGHTENING SPECIFICATIONS .
