Rear Window Wiper Motor -V12-

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

CAUTION:

Follow the procedure in the Repair Instructions when disconnecting and connecting the battery. Refer to 2.0L, 2.5L: BATTERY, DISCONNECTING AND CONNECTING or 3.2L: BATTERY, DISCONNECTING AND CONNECTING .

Removing

-- Remove the rear window wiper arm. Refer to REAR WINDOW WIPER ARM .

-- Remove the lower rear lid trim panel. Refer to Removal and Installation .

-- Disconnect electrical connection -1-.

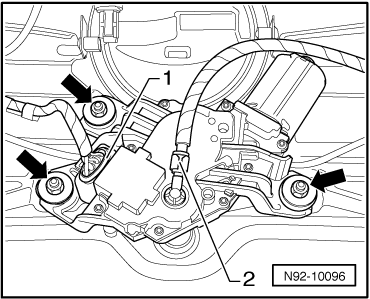

Fig 1: Identifying Motor For Rear Window Wiper V12 Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Rotate the clip on the hose connection to release -2-.

-- Remove the hose connection from the rear window wiper motor.

-- Remove nuts -arrows-.

-- Carefully remove the rear window wiper motor from the rear lid.

Installing

Installation is performed in the reverse order of removal. Note the following:

-- Check seal for correct fitting in rear window opening. Marking -1- of seal must align with marking -2- on rear window.

Fig 2: Identifying Seal Marking And Rear Window Marking

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Connect battery. Refer to 2.0L, 2.5L BATTERY, CONNECTING or 3.2L BATTERY, CONNECTING .
