Rear Window Wiper

WARNING: This page is about a different variant/trim than selected.

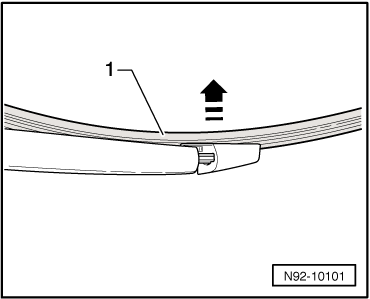

Fig 1: Identifying Aero Windshield Wipers Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Removing

NOTE:

Joint-free windshield wipers are very flexible. Grasp wiper blade only in area of wiper blade mount to lift them off rear window.

-- Fold up wiper arm.

-- Remove the cap -1- from the wiper arm to release windshield wiper -arrow-.

-- Remove wiper blade -1- from wiper arm -arrow-.

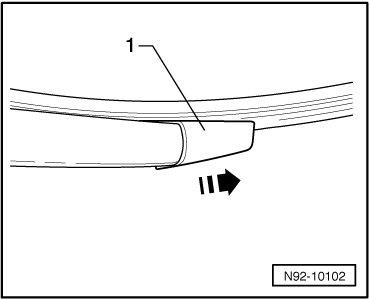

Fig 2: Identifying Direction To Remove Wiper Blade From Wiper Arm

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

Install in reverse order of removal.
