Output Shaft: Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2008 Volkswagen Jetta, 2007 Volkswagen Jetta, and 2006 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- PunchVW 407
- Thrust DiscVW 412
- Thrust PadVW 512
- Taper Roller Bearing PullerV.A.G 1582
- Attachment to VAG 1582V.A.G 1582/4
- Attachment to VAG 1582V.A.G 1582/5
- Thrust PlateVW 402
- Driving Sleeve32 - 111
- PunchVW 408 A
- PunchVW 409
- Support ChannelsVW 457
- SleeveVW 519
- Thrust RingVW 429
- Tube 60 mm Dia.VW 415 A
- Thrust PadVW 447 H
- Thrust TubeVW 454
- Thrust TubeVW 455
- Mounting Universal Joint41-501
- Kukko Extractor 37-46 mm21/6
- Kukko Separating Tool 22-115 mm17/2
- Kukko Support22/2
- Inductive HeaterVAS 6414
NOTE:
Disassemble the output shaft as follows: place the separating device under the 2nd gear -item 21- and remove it as described. Refer to Removing the Synchronizer and 3rd/4th Gear Locking Collar, 2nd, 3rd and 4th Gears with the Needle Bearing Sleeve and Output Shaft . Remove the lock ring -item 17-. Remove the locking collar and the 1st/2nd gear synchronizer hub as described in. Refer to Removing the Locking Collar with the Synchronizer Hub and Bearing Mount .
Replace both tapered roller bearings together.
Wearing safety gloves, warm the bearing inner races, the gears and the synchronizer hubs to approximately 100 °C (212 °F) using the VAS 6414 before installing them.

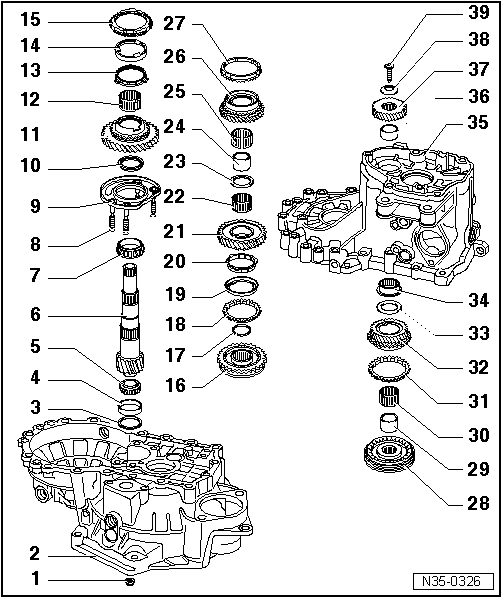

- Nut
- 25 Nm + 90° (1/4) additional turn.
- 4 nuts for the bearing mount.
- Always replace.
- Clutch Housing
- Adjusting Shim
- For the output shaft.
- Adjustment overview, refer to ADJUSTMENT OVERVIEW .
- Small Outer Race/Tapered Roller Bearing
- Removing, refer to Removing the Small Outer Race/Tapered Roller Bearing .
- Installing, refer to Installing the Small Outer Race/Tapered Roller Bearing .
- Bearing Inner Race/Small Tapered Roller Bearing
- Removing, refer to Removing the Bearing Inner Race/Small Taper Roller Bearing .
- Installing, refer to Installing the Bearing Inner Race/Small Tapered Roller Bearing .
- Output Shaft
- Adjusting, refer to OUTPUT SHAFT, ADJUSTING .
- Bearing Inner Race/Large Tapered Roller Bearing
- Removing, refer to Removing the Bearing Inner Race/Large Tapered Roller Bearing .
- Installing, refer to Installing the Bearing Inner Race/Large Tapered Roller Bearing .
- Seal
- Place the four seals on the bearing mount bolts.
- Always replace.
- Bearing Mount
- With the large outer race/tapered roller bearing and bolts.
- Replace the outer race only together with the large tapered roller bearing and bearing mount.
- Thrust Washer
- The collar on the thrust washer faces the tapered roller bearing.
- 1st Gear
- Needle Bearing
- For the 1st gear.
- Synchronizer Ring
- (Inner race for 1st gear).
- Installed position, refer to Installed Position of the Inner Race, the Outer Race and the 1st Gear Synchronizer Ring
- Checking for wear, refer to Checking the Inner Race for 1st Gear and 2nd Gear for Wear .
- Check for scoring.
- 1st Gear Outer Race
- Installed position, refer to Installed Position of the Inner Race, the Outer Race and the 1st Gear Synchronizer Ring .
- Checking for wear, refer to Checking 1st Gear and 2nd Gear synchronizing Ring for Wear .
- Replace if there are grooves or scoring.
- 1st Gear Synchronizer Ring
- Installed position, refer to Installed Position of the Inner Race, the Outer Race and the 1st Gear Synchronizer Ring .
- Checking for wear, refer to Checking 1st Gear and 2nd Gear synchronizing Ring for Wear .
- Locking Collar with Synchronizer Hub for 1st and 2nd Gears
- After removing the locking ring -item 17-, remove with the bearing mount. Refer to Removing the Locking Collar with the Synchronizer Hub and Bearing Mount
- Disassembling, refer to Disassembling and Assembling Locking Collar and Synchronizer Hub for 1st and 2nd Gears .
- Assembling operating sleeve/synchronizer hub, refer to Disassembling and Assembling Locking Collar and Synchronizer Hub for 1st and 2nd Gears , Assembly: Locking Collar/Synchronizer Hub for 1st and 2nd Gears together with Locking Pieces that are Hollow on the Inside and Assembly: Locking Collar/Synchronizer Hub for 1st and 2nd Gears together with Locking Pieces that are not Hollow .
- Installed position, refer to Installed Position: Locking Collar/Synchronizer Hub for 1st and 2nd Gears .
- Installing, refer to Installing the Locking Collar/Synchronizer Hub for 1st and 2nd Gears .
- Lock Ring
- 2nd Gear Synchronizer Ring
- Checking for wear, refer to Checking 1st Gear and 2nd Gear synchronizing Ring for Wear .
- Insert it so that the holes engage into engagement pieces of locking collar -item 16-.
- 2nd Gear Outer Race
- Insert into synchronizer ring -item 18-.
- Installed position, refer to Installed Position of 2nd Gear Outer Race .
- Replace if there are grooves or scoring.
- Synchronizer Ring
- (Inner race for 2nd gear).
- Checking for wear, refer to Checking 1st Gear and 2nd Gear synchronizing Ring for Wear .
- Check for scoring.
- Installed position, refer to Installed Position: Synchronizer Ring -A- (2nd Gear Inner Race) .
- 2nd Gear
- Installed position, refer to Installed Position: 2nd Gear .
- Needle Bearing
- For the 2nd gear.
- Thrust Washer
- Sleeve for the 3rd Gear Needle Bearing
- Remove with the 2nd gear, refer to Removing the Synchronizer and 3rd/4th Gear Locking Collar, 2nd, 3rd and 4th Gears with the Needle Bearing Sleeve and Output Shaft .
- Installing, refer to Installing the Sleeve for the 3rd Gear Needle Bearing .
- Needle Bearing
- For the 3rd gear.
- 3rd Gear
- 3rd Gear Synchronizer Ring
- Checking for wear, refer to Checking 3rd/4th Gear Synchronizing Ring for Wear .
- Locking Collar with Synchronizer Hub for 3rd and 4th Hears
- Remove with the 2nd gear -item 21- and 3rd gear -item 26-. Refer to Removing the Synchronizer and 3rd/4th Gear Locking Collar, 2nd, 3rd and 4th Gears with the Needle Bearing Sleeve and Output Shaft .
- Disassembling, refer to Disassembling and Assembling Locking Collar and Synchronizer Hub for 3rd/4th Gears .
- Assembling operating sleeve/synchronizer hub Disassembling and Assembling Locking Collar and Synchronizer Hub for 3rd/4th Gears , Assembly: Locking Collar/Synchronizer Hub for 3rd and 4th Gears together with Locking Pieces that are Hollow on the Inside and Assembly: Locking Collar/Synchronizer Hub for 3rd and 4th Gears together with Locking Pieces that are not Hollow .
- Installed position: locking collar/synchronizer hub, refer to Installed Position: Locking Collar/Synchronizer Hub for 3rd and 4th Gears
- Installing, refer to Installing the Synchronizer Hub with Locking Collar for 3rd and 4th Gears .
- Sleeve
- For the 4th gear needle bearing.
- Removing with the locking collar and the 3rd/4th gear synchronizer hub -item 28-. Refer to Removing the Synchronizer and 3rd/4th Gear Locking Collar, 2nd, 3rd and 4th Gears with the Needle Bearing Sleeve and Output Shaft .
- Installing, refer to Installing the Sleeve for the 4th Gear Needle Bearing .
- Needle Bearing
- For the 4th gear.
- 4th Gear Synchronizer Ring
- Checking for wear, refer to Checking 3rd/4th Gear Synchronizing Ring for Wear .
- 4th Gear
- Thrust Washer
- Needle Bearing
- For the output shaft.
- Removing and installing, see -item 2- TRANSMISSION HOUSING AND CLUTCH HOUSING => Needle Bearing .
- Transmission Housing
- Sleeve
- For the needle bearing/output shaft.
- Removing, refer to Removing the Synchronizer and 3rd/4th Gear Locking Collar, 2nd, 3rd and 4th Gears with the Needle Bearing Sleeve and Output Shaft .
- Installing, refer to Installing the Sleeve for the Needle Bearing/Output Shaft .
- 5th Gear
- Removing individually, refer to TRANSMISSION HOUSING COVER AND 5TH GEAR .
- Remove with the transmission housing. Refer to TRANSMISSION .
- Plate Spring
- Installed position, refer to 5TH GEAR, INSTALLING => Installed Position of Plate Springs for 5th Gear Synchronizer Hub and Drive Gear Bolts .
- Bolt
- See -item 4- TRANSMISSION HOUSING AND 5TH GEAR COVER => Bolt .
- Always replace
- Removing and installing TRANSMISSION .
