Rear Axle Component Identification & Servicing: Notes
CAUTION:
DO NOT attempt to straighten or weld rear axle beam or stub axles.

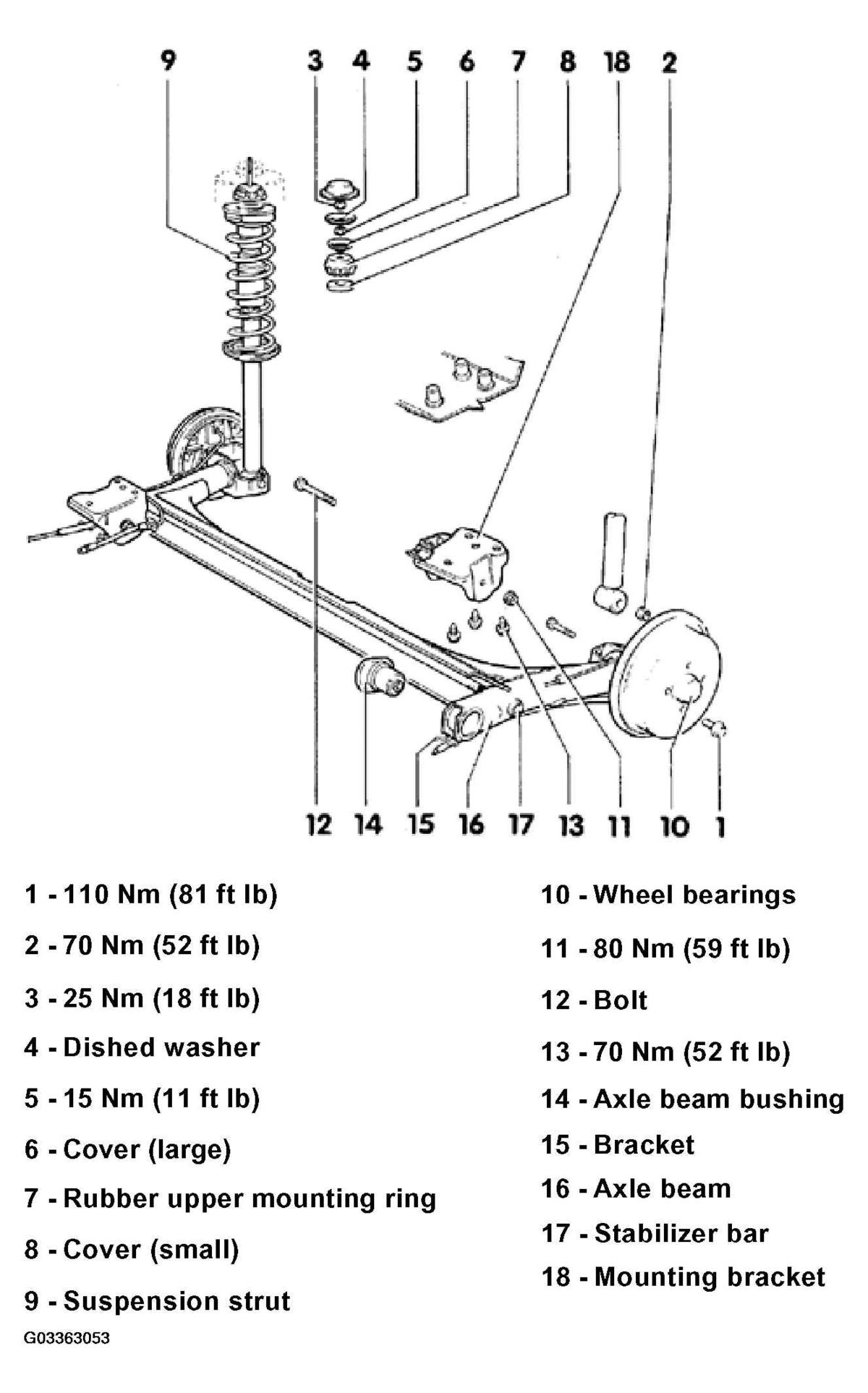

The following list pertains to Fig 1 .
- - 110 N.m (81 ft lb)
- - 70 N.m (52 ft lb)
- When tightening, axle beam must be in horizontal position (vehicle not loaded)
- - 25 N.m (18 ft lb)
- - Dished washer
- - 15 N.m (11 ft lb)
- - Cover (large)
- - Rubber upper mounting ring
- - Cover (small)
- - Suspension strut
- Removing and installing. See Removing And Installing Suspension Strut
- Disassembling and assembling. See SUSPENSION STRUT, DISASSEMBLING AND ASSEMBLING
- - Wheel bearings
- Servicing. See WHEEL BEARINGS AND AXLE (DRUM BRAKES), SERVICING
- - 80 N.m (59 ft lb)
- Use only self-locking nut with captive washer
- When tightening, axle beam must be in horizontal position (vehicle unloaded)
- - Bolt
- Install from center of vehicle
- - 70 N.m (52 ft lb)
- If threads in cap nut are damaged, drill out and re-tap. See REAR AXLE BEAM MOUNT, REPAIRING
- - Axle beam bushing
- Pressing out. See Pressing Out Axle Beam Bushing
- Pressing in. See Pressing In Axle Beam Bushing
- - Bracket
- For parking brake cable
- - Axle beam
- Keep contact surface and threaded holes for stub axles free of paint and dirt
- Preload axle beam bushings when installing. See Installing Rear Axle Beam
- Running production changes. See CHANGES TO REAR TRACK, GOLF AND JETTA 08.93 (FROM M.Y. 1994) and CHANGES TO BRAKE LINE AND CABLE MOUNTING
- - Stabilizer bar
- Diameter. See STABILIZER BAR SPECIFICATIONS, REAR
- - Mounting bracket
- Position on axle beam. See Position Of Mounting Bracket On Axle Beam
- With bracket for mounting brake pressure regulator
- Do not loosen when removing rear axle beam
