Pressing Out Axle Beam Bushing

  1. a - Bridge
  2. b - Separator, Kukko 17-2 or equivalent
  3. c - Puller, Kukko 15-2 or equivalent
    • Remove any corrosion in area of bushing before pressing out.

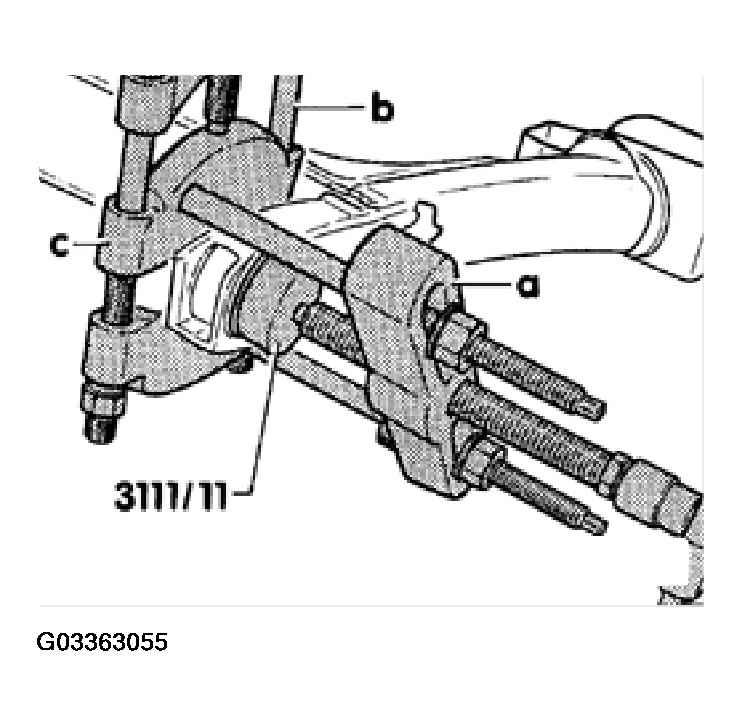

      Fig 1: Pressing Out Axle Beam Bushing
      G03363055
