Pressing In Axle Beam Bushing

  1. a - Bridge
  2. b - Separator, Kukko 17-2 or equivalent
  3. c - Puller, Kukko 15-2

    Cylindrical part of bushing must protrude from axle by 8.0 mm +/- 1.0 mm (0.32 +/- 0.04 in.)

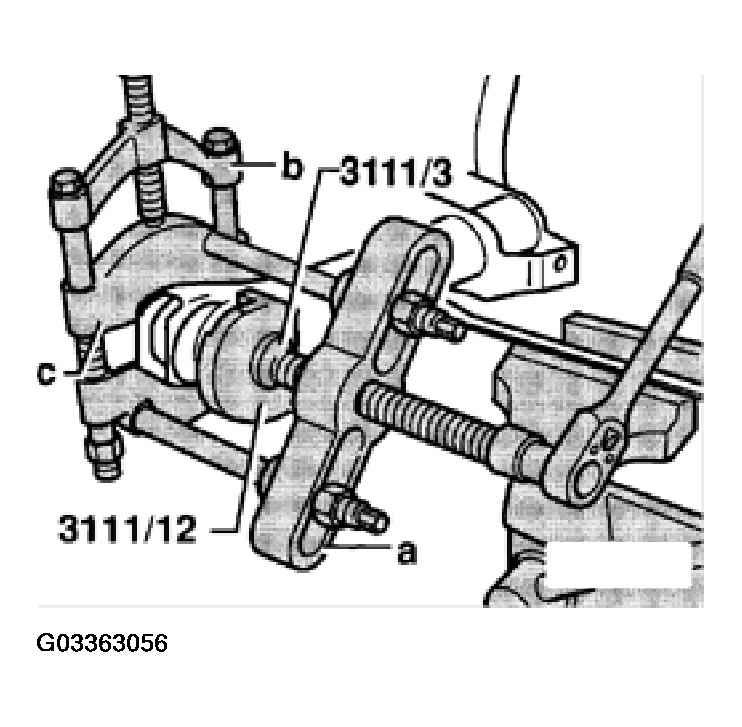

    Fig 1: Pressing In Axle Beam Bushing
    G03363056
