Installing Rear Axle Beam
CAUTION:
The rear axle mounts must be under tension when installed.
- Install all mounting bolts but do not tighten.
- Align right-hand mounting bracket so bolts are in center of elongated holes.

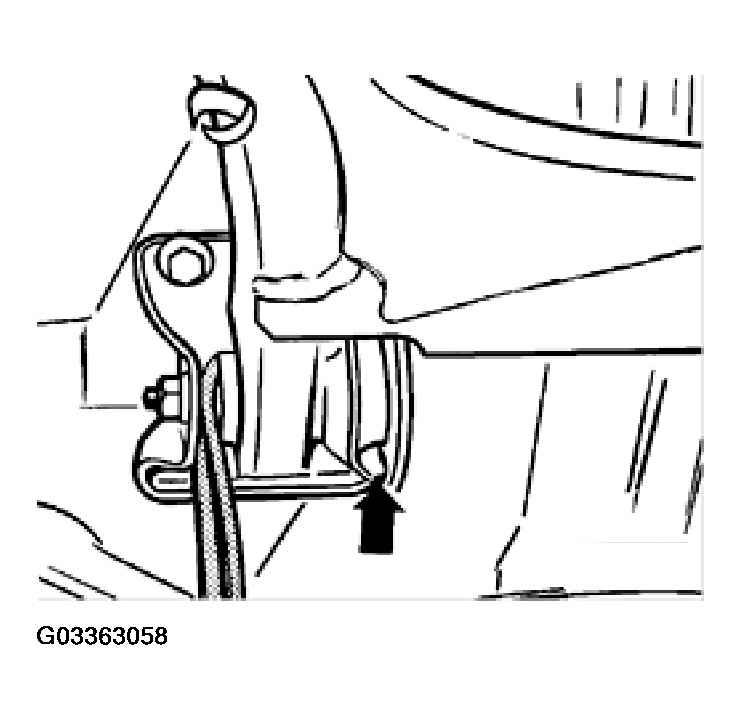

- On left-hand side press mounting bracket against axle beam pushing with a lever until gap on inside (arrow) is minimal.
- Tighten all bolts to specified torque. See REAR AXLE, SERVICING .
