Installation [11/2018 - 08/2020]: Procedure

WARNING: This page is about a different variant/trim than selected.

INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY

Push in the direction indicated by the arrow shown in the illustration and insert the guide to set the instrument panel safety pad assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

Install the instrument panel safety pad assembly with the 5 bolts <B>, nut <E> and 2 clips <D>.

Attach the clamp.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Bolt <B>		Nut <E>
	Clip <D>	-	-

for Automatic Air Conditioning System:

Attach the claw to install the cooler (room temp. sensor) thermistor.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the steering column assembly with 2 nuts for the instrument panel reinforcement assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 36 N.m (367 kgf/cm, 27 ft.lbf)

w/ Interior Illumination:

Connect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Connect each connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Navigation System
*B	w/ Navigation System or Telematics Transceiver

Install the 2 bolts <C>.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Bolt <C>

Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

Connect the connector and attach the guide.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Connect the airbag connector.

NOTE:

When handling the airbag connector, take care not to damage the airbag wire harness.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Dual Type	*B	for Single Type
	Slide in this Direction	-	-

INSTALL LOWER STEERING COLUMN COVER
Refer to PROCEDURE - Step 3
INSTALL HAZARD WARNING SIGNAL SWITCH ASSEMBLY
Refer to PROCEDURE - Step 1
INSTALL FRONT NO. 2 SPEAKER ASSEMBLY
Refer to PROCEDURE - Step 1

INSTALL NO. 2 SPEAKER HOLE COVER

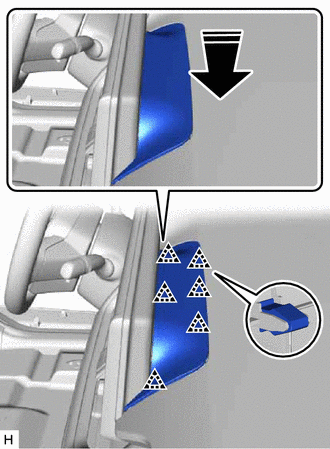

Insert the guide in direction indicated by the arrow shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

Attach the clip to install the No. 2 speaker hole cover as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL FRONT PILLAR GARNISH RH
HINT:

Use the same procedure described for the LH side.

Refer to PROCEDURE - Step 37 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 38 [02/2019 - 08/2020]

INSTALL INSTRUMENT SIDE PANEL RH

Attach the guide as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

Attach the clip to install the instrument side panel RH as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH

Attach the clip to install the No. 2 instrument cluster finish panel garnish as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

Attach the clip to install the lower No. 2 instrument panel finish panel as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

Install the 3 screws <A> and 2 bolts <B>.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Bolt <B>
	Screw <A>

INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY

With the glove compartment door assembly in the assembly position, attach the hinge horizontally.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Assembly Position
*b	Closed Position
	Install in this Direction

NOTE:

Attach the hinges from the top will deform the hinges. Be sure to install the glove compartment door assembly horizontally.

Slightly bend the stoppers (A) and (B) in the directions indicated by the arrows in the illustration and attach the stoppers to install the glove compartment door assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Glove Compartment Door Stopper Sub-assembly
*a	Stopper
	Install in this Direction

Attach the claw to install the glove compartment door stopper sub-assembly.

INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

w/ Foot light:

Attach the clamp and connect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Even if there is no foot light, if there is a connector, connect the connector and attach the clamp.

Insert the guide in the direction indicated by the arrow shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

Lift up in the installation direction, attach the claw in the order shown in the illustration to install the No. 2 instrument panel under cover sub-assembly.

Fig 1: Identifying No. 2 Instrument Panel Under Cover Sub-Assembly Claw Attaching Sequence
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL COWL SIDE TRIM BOARD RH

Attach the clamp and clip to install the cowl side trim board RH in the direction indicated by the arrow shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

Install the cap nut.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL FRONT DOOR SCUFF PLATE RH
HINT:

Use the same procedure described for the LH side.

Refer to PROCEDURE - Step 43 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 44 [02/2019 - 08/2020]
INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
1. Install the front door opening trim weatherstrip RH.
INSTALL FRONT NO. 2 SPEAKER ASSEMBLY
Refer to PROCEDURE - Step 1

INSTALL NO. 1 SPEAKER HOLE COVER

Insert the guide in direction indicated by the arrow shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

Attach the clip to install the No. 1 speaker hole cover as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL FRONT PILLAR GARNISH LH
Refer to PROCEDURE - Step 37 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 38 [02/2019 - 08/2020]
INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to PROCEDURE - Step 1

INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

w/ Smart Key System:
Connect the connector.

Attach the clip to install the lower instrument panel finish panel assembly as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL FUSE BOX OPENING COVER

for HV Model:
Connect the connector.

Attach the clamp.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

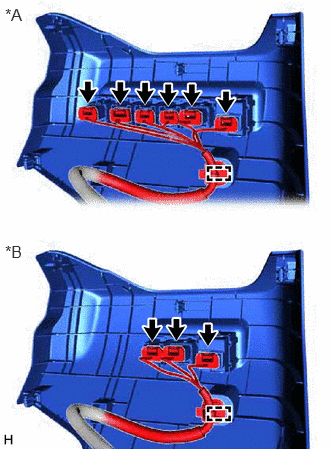

*A	for 6 Switch Type
*B	for 3 Switch Type

Connect each connector.

Attach the clip to install the fuse box opening cover as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Bolt <B>

Install the bolt <B>.

INSTALL FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY (for Gasoline Model)

Attach the guide and claw to install the fuel lid lock open lever sub-assembly in the direction indicated by the arrow as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Attach the guide and claw to install the hood lock control lever sub-assembly in the direction indicated by the arrow shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this direction

INSTALL INSTRUMENT SIDE PANEL LH

Attach the guide as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

Attach the clip to install the instrument side panel LH as shown in the illustration.

Install in this Direction

INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
1. Install the front door opening trim weatherstrip LH.

INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

w/ Foot light:

Attach the claw to install the DLC3.
Attach the clamp and connect the connector.

w/o Foot Light:

Attach the claw to install the DLC3.

HINT:

Even if there is no foot light, if there is a connector, connect the connector and attach the clamp.

Insert the guide in the direction indicated by the arrow shown in the illustration.

Install in this Direction

Lift up in the direction indicated by the arrow shown in the illustration to attach the guide and claw to install the No. 1 instrument panel under cover sub-assembly.

Install in this Direction

Install the 3 screws <A>.

Screw <A>

INSTALL COWL SIDE TRIM BOARD LH

Attach the guide and clip to install the cowl side trim board LH in the direction indicated by the arrow shown in the illustration.

Install in this Direction

Install the cap nut.

INSTALL FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 43 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 44 [02/2019 - 08/2020]

INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Connect each connector.

Attach the clip to install the lower center instrument panel finish panel.

Install in this Direction

INSTALL AIR CONDITIONING CONTROL ASSEMBLY
Refer to PROCEDURE - Step 1
INSTALL COMBINATION METER ASSEMBLY
Refer to PROCEDURE - Step 1

INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

Attach the clip to install the instrument cluster finish panel assembly.

Install in this Direction

Attach the claw and guide.

Install in this Direction

INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH

Attach the guide and clip to install the instrument cluster finish panel garnish as shown in the illustration.

Install in this Direction

INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET
Refer to PROCEDURE - Step 3

INSTALL CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL

Attach the clip to install the center upper instrument cluster finish panel.

Install in this Direction

INSTALL CONSOLE BOX ASSEMBLY
Refer to INSTALLATION [11/2018 - 12/2021]
CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
- for A25A-FKS:
  Refer to PROCEDURE - Step 2
- for A25A-FXS:
  Refer to PROCEDURE - Step 2
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [11/2018 - 02/2019] , or refer to INITIALIZATION [02/2019 - 10/2019] , or refer to INITIALIZATION [10/2019 - 06/2020] , or refer to INITIALIZATION [06/2020 - 08/2020]
INSTALL BATTERY HOLE COVER (for HV Model)
Refer to PROCEDURE - Step 3
INSTALL REAR NO. 2 FLOOR BOARD (for HV Model)
Refer to PROCEDURE - Step 4
INSTALL DECK BOARD ASSEMBLY (for HV Model)
Refer to PROCEDURE - Step 5
CHECK SRS WARNING LIGHT
1. w/ Occupant Classification System:
  Refer to OPERATION CHECK [11/2018 - 02/2019] , or refer to OPERATION CHECK [02/2019 - 08/2020]
2. w/o Occupant Classification System:
  Refer to OPERATION CHECK [11/2018 - 08/2020]
PERFORM DIAGNOSTIC SYSTEM CHECK
1. w/ Occupant Classification System:
  Refer to DTC CHECK / CLEAR [11/2018 - 08/2020]
2. w/o Occupant Classification System:
  Refer to DTC CHECK / CLEAR [11/2018 - 08/2020]
PERFORM SYSTEM INITIALIZATION AND CALIBRATION
Refer to CAUTION / NOTICE / HINT , or refer to CAUTION / NOTICE / HINT , or refer to REMOVAL [10/2019 - 08/2020]
