Installation [11/2018 - 10/2022]: Procedure
WARNING: This page is about a different variant/trim than selected.
- INSTALL NO. 1 RADIO RECEIVER BRACKET
- Install the No. 1 radio receiver bracket with the 2 screws.
Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- INSTALL NO. 2 RADIO RECEIVER BRACKET
- Install the No. 2 radio receiver bracket with the 2 screws.
Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET
- Connect each connector.

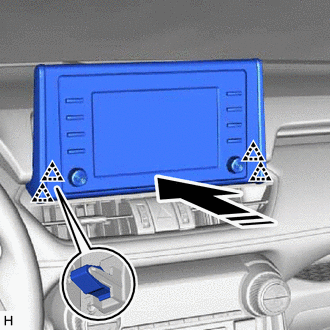

- Attach the clip to install the radio and display receiver assembly with bracket.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 |
Install in this Direction |

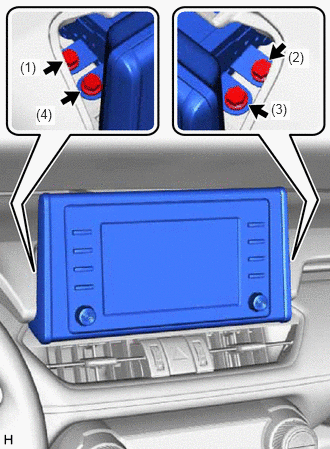

- Install the 4 bolts in the order shown in the illustration.
Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- INSTALL CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL
Refer to PROCEDURE - Step 34 [11/2018 - 08/2020]
, or refer to PROCEDURE - Step 33 [08/2020 - 10/2022]
