Installation [11/2018 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

INSTALL FRONT NO. 2 SPEAKER ASSEMBLY

NOTE:

Do not touch the cone part of the front No. 2 speaker assembly.

for LH Side:

Tighten the 2 screws in the order shown in the illustration to install the front No. 2 speaker assembly.

Torque: 12.5 N.m (127 kgf/cm, 9 ft.lbf)

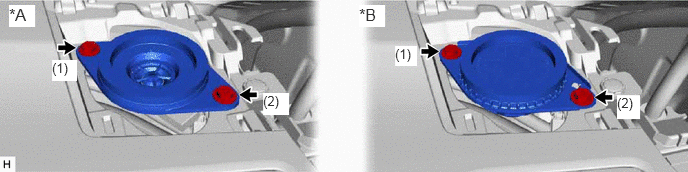

Fig 1: Front No. 2 Speaker Assembly (For LH Side) Screws Tightening Sequence

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for 6 Speakers

for 9 Speakers

for RH Side:

Tighten the 2 screws in the order shown in the illustration to install the front No. 2 speaker assembly.

Torque: 12.5 N.m (127 kgf/cm, 9 ft.lbf)

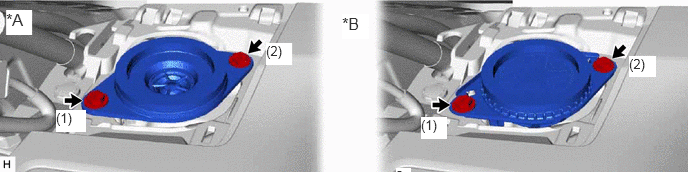

Fig 2: Front No. 2 Speaker Assembly (For RH Side) Screws Tightening Sequence

for 6 Speakers

for 9 Speakers

INSTALL NO. 1 SPEAKER HOLE COVER
Refer to PROCEDURE - Step 16 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 15 [08/2020 - 10/2022] , or refer to PROCEDURE - Step 15 [10/2022 - ]
INSTALL FRONT PILLAR GARNISH LH
Refer to PROCEDURE - Step 17 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 16 [08/2020 - 10/2022] , or refer to PROCEDURE - Step 16 [10/2022 - ]
INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
Refer to PROCEDURE - Step 24 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 23 [08/2020 - 10/2022] , or refer to PROCEDURE - Step 23 [10/2022 - ]
