Installation [02/2019 - 08/2020]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL BATTERY HOLE COVER (for HV Model)
    1. Attach the claw to install the battery hole cover.
      GTY944128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

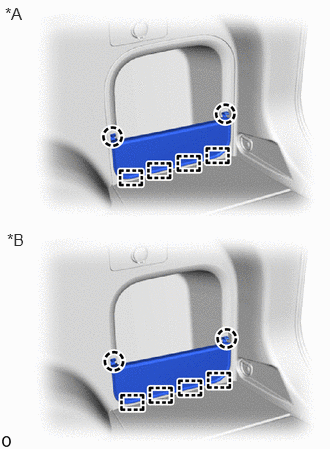

  2. INSTALL DECK TRIM POCKET COVER PLATE (except Partition Net)
    1. Attach the guide and claw to install the deck trim pocket cover plate.
      GTY840041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for HV Model
      *B for Gasoline Model
  3. INSTALL ROOM PARTITION NET ASSEMBLY (w/ Partition Net)
    1. Attach the guide and claw to install the room partition net assembly.
      GTY905254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for HV Model
      *B for Gasoline Model
  4. INSTALL REAR NO. 2 SIDE RAIL SPACER LH
    1. Attach the claw to install the rear No. 2 side rail spacer LH.
      GTY919516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL REAR NO. 2 SIDE RAIL SPACER RH

    HINT:

    Use the same procedure described for the LH side.

  6. INSTALL ROOF HEADLINING ASSEMBLY (for Normal Roof)

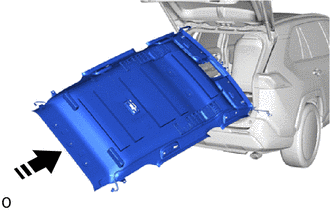

    1. Insert the roof headlining assembly into the cabin from the back door.
      NOTE:
      • Installation of the roof headlining assembly must be performed by multiple people to prevent deformation of the roof headlining assembly.
      • Check that the corners of the roof headlining are not folded, twisted or otherwise deformed and that none of the mounted parts have fallen off.
      • Make sure that the roof headlining does not get caught on anything as it may become bent or damaged.
      • Do not damage the roof headlining or vehicle interior.
      GTY912060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Attach the claw to install the visor holder base.
      GTY919488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the opposite side.

    3. Install 5 new clips.
      GTY919514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. w/o EC Mirror, w/o Pre-collision System:
      1. Connect the connector.
        GTY879587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ Rain Sensor or w/ Humidity Sensor
    5. w/o EC Mirror, w/ Pre-collision System:
      1. Connect each connector.
        GTY909075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ Rain Sensor or w/ Humidity Sensor
    6. w/ EC Mirror, w/o Pre-collision System:
      1. Connect each connector.
        GTY932422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ Rain Sensor or w/ Humidity Sensor
    7. w/ EC Mirror, w/ Pre-collision System:
      1. Connect each connector.
        GTY900499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ Rain Sensor or w/ Humidity Sensor
    8. w/ Digital Inner Mirror:
      1. Connect each connector.
        GTY884247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ Rain Sensor or w/ Humidity Sensor
    9. for Rear Pillar LH Side:
      1. Connect the connector.
        GTY919517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. for Rear Pillar RH Side:
      1. Connect the connector.
        GTY944120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    11. for Front Pillar LH Side:
      1. Remove the protective cover installed to the front pillar LH.
      2. Attach the wire harness clamp.
        GTY919503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Connect the 2 connectors.
      4. Install the protective cover to the front pillar LH.
    12. for Front Pillar RH Side:
      1. Remove the protective cover installed to the front pillar RH.
      2. Attach the wire harness clamp.
        GTY919504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Connect the connector.
      4. Install the protective cover to the front pillar RH.

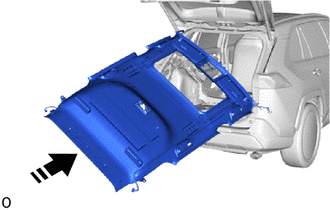

  7. INSTALL ROOF HEADLINING ASSEMBLY (for Moon Roof)
    1. Insert the roof headlining assembly into the cabin from the back door.
      NOTE:
      • Installation of the roof headlining assembly must be performed by multiple people to prevent deformation of the roof headlining assembly.
      • Check that the corners of the roof headlining are not folded, twisted or otherwise deformed and that none of the mounted parts have fallen off.
      • Make sure that the roof headlining does not get caught on anything as it may become bent or damaged.
      • Do not damage the roof headlining or vehicle interior.
      GTY907084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Attach the claw to install the visor holder base.
      GTY919488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the opposite side.

    3. Install 3 new clips.
      GTY919515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the connector.
      GTY919487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. w/o EC Mirror, w/o Pre-collision System:
      1. Connect the connector.
        GTY879587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ Rain Sensor or w/ Humidity Sensor
    6. w/o EC Mirror, w/ Pre-collision System:
      1. Connect each connector.
        GTY909075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ Rain Sensor or w/ Humidity Sensor
    7. w/ EC Mirror, w/o Pre-collision System:
      1. Connect each connector.
        GTY932422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ Rain Sensor or w/ Humidity Sensor
    8. w/ EC Mirror, w/ Pre-collision System:
      1. Connect each connector.
        GTY900499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ Rain Sensor or w/ Humidity Sensor
    9. w/ Digital Inner Mirror:
      1. Connect each connector.
        GTY884247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ Rain Sensor or w/ Humidity Sensor
    10. for Rear Pillar LH Side:
      1. Connect the connector.
        GTY919517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    11. for Rear Pillar RH Side:
      1. Connect the connector.
        GTY944120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    12. for Front Pillar LH Side:
      1. Remove the protective cover installed to the front pillar LH.
      2. Attach the wire harness clamp.
        GTY919503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Connect the 2 connectors.
      4. Install the protective cover to the front pillar LH.
    13. for Front Pillar RH Side:
      1. Remove the protective cover installed to the front pillar RH.
      2. Attach the wire harness clamp.
        GTY919504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Connect the connector.
      4. Install the protective cover to the front pillar RH.
  8. INSTALL ROOF HEADLINING ASSEMBLY (for Panoramic Moon Roof)
    1. Insert the roof headlining assembly into the cabin from the back door.
      NOTE:
      • Installation of the roof headlining assembly must be performed by multiple people to prevent deformation of the roof headlining assembly.
      • Check that the corners of the roof headlining are not folded, twisted or otherwise deformed and that none of the mounted parts have fallen off.
      • Make sure that the roof headlining does not get caught on anything as it may become bent or damaged.
      • Do not damage the roof headlining or vehicle interior.

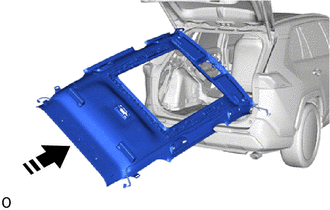

      GTY905229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Attach the claw to install the visor holder base.
      GTY919488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the opposite side.

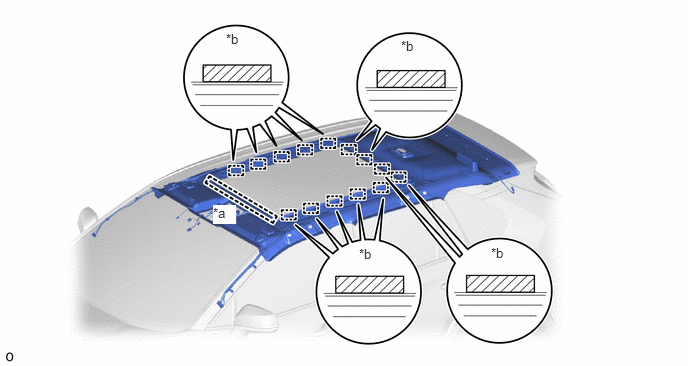

    3. Attach the guide and fastener to install the roof headlining assembly.
      GTY854387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Guide *b Fastener
    4. Install 3 new clips.
      GTY919515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the 2 connectors.
      GTY944116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. w/o EC Mirror, w/ Pre-collision System:
      1. Connect each connector.
        GTY909075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ Rain Sensor or w/ Humidity Sensor
    7. w/ EC Mirror, w/o Pre-collision System:
      1. Connect each connector.
        GTY932422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ Rain Sensor or w/ Humidity Sensor
    8. w/ EC Mirror, w/ Pre-collision System:
      1. Connect each connector.
        GTY900499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ Rain Sensor or w/ Humidity Sensor
    9. w/ Digital Inner Mirror:
      1. Connect each connector.
        GTY884247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ Rain Sensor or w/ Humidity Sensor
    10. for Rear Pillar LH Side:
      1. Connect the connector.
        GTY919517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    11. for Rear Pillar RH Side:
      1. Connect the connector.
        GTY944120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    12. for Front Pillar LH Side:
      1. Remove the protective cover installed to the front pillar LH.
      2. Attach the wire harness clamp.
        GTY919503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Connect the 2 connectors.
      4. Install the protective cover to the front pillar LH.
    13. for Front Pillar RH Side:
      1. Remove the protective cover installed to the front pillar RH.
      2. Attach the wire harness clamp.
        GTY919504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Connect the connector.
      4. Install the protective cover to the front pillar RH.

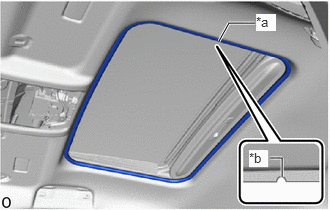

  9. INSTALL SUN ROOF OPENING TRIM MOULDING (for Moon Roof)
    GTY917716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Sun Roof Opening Trim Moulding Fabric Cover
    *b Cutout of the Roof Headlining Assembly
    1. Install the sun roof opening trim moulding as shown in the illustration.
  10. INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER (w/ EC Mirror, w/o Pre-collision System)

    Refer to PROCEDURE - Step 4

  11. INSTALL NO. 1 FORWARD RECOGNITION COVER (w/ Pre-collision System)

    Refer to PROCEDURE - Step 3

  12. INSTALL NO. 2 FORWARD RECOGNITION COVER (w/ Pre-collision System)

    Refer to PROCEDURE - Step 4

  13. INSTALL RAIN SENSOR COVER (w/ Rain Sensor)

    Refer to PROCEDURE - Step 3

  14. INSTALL PROTECTOR (w/ Humidity Sensor)

    HINT:

    Use the same procedure as for the rain sensor cover.

    Refer to PROCEDURE - Step 3

  15. INSTALL NO. 1 ROOM LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  16. INSTALL MAP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  17. INSTALL ASSIST GRIP ASSEMBLY

    HINT:

    Use the same procedure for all assist grip assemblies.

    1. Install the 2 clips to the assist grip sub-assembly.
      GTY919481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Temporarily install the 2 assist grip covers to the assist grip sub-assembly as shown in the illustration.

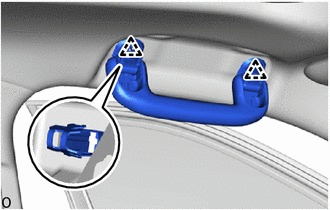

    3. Attach the clip to install the assist grip sub-assembly.
      GTY919480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Attach the claw to install the 2 assist grip covers.
      NOTE:

      Check that the 2 clips are securely attached.

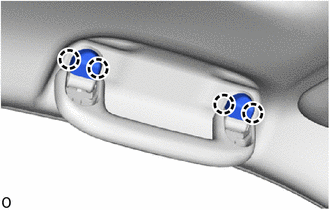

      GTY919479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL REAR ASSIST GRIP ASSEMBLY LH

    HINT:

    Use the same procedure as for the assist grip assembly.

  19. INSTALL REAR ASSIST GRIP ASSEMBLY RH

    HINT:

    Use the same procedure as for the assist grip assembly.

  20. INSTALL VISOR HOLDER

    HINT:

    Use the same procedure for the opposite side.

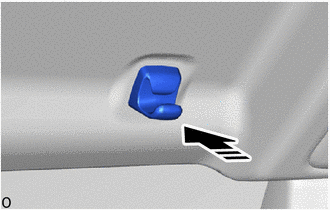

    1. Push in the end of the visor holder to install the visor holder.
      GTY935215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  21. INSTALL VISOR ASSEMBLY LH
    1. Set the visor assembly LH into place by aligning it upward with the connector and screw fastening hole.
      NOTE:
      • When setting the part into place, move it straight upward so as not to damage the connector.
      • Hold the visor assembly with one hand so that it does not drop.

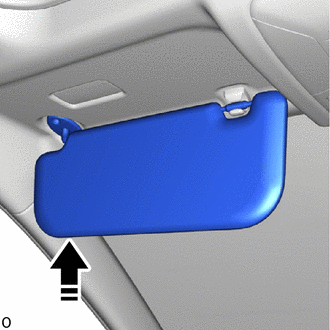

      GTY858926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Connect the visor assembly LH to the visor holder LH to set it into place.
    3. except "TORX" Type:
      GTY944169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the visor assembly LH with the 2 screws.
    4. for "TORX" Type:
      1. Using a T25 "TORX" socket wrench, install the visor assembly LH with the 2 "TORX" screws.
  22. INSTALL VISOR ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  23. INSTALL INNER ROOF SIDE GARNISH ASSEMBLY LH
    1. When reusing the inner roof side garnish assembly LH:
      1. Install 8 new clips to the inner roof side garnish assembly LH.
        GTY862060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Clip A *b Clip B
        *c Clip C - -
    2. Attach the clip to install the inner roof side garnish assembly LH.
      GTY879642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip A *b Clip B
      *c Clip C - -
  24. INSTALL INNER ROOF SIDE GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

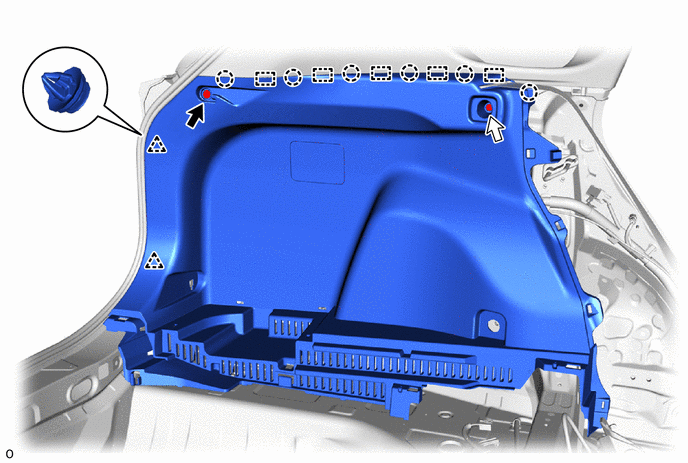

  25. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH
    1. Attach the guide, claw and clip to install the deck trim side panel assembly LH.
    2. except "TORX" Screw:
      1. Install the screw.
    3. for "TORX" Screw:
      1. Using a T30 "TORX" socket wrench, install the "TORX" screw.
    4. Install the clip.
      GTY864810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Clip Screw or "TORX" Screw
  26. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH

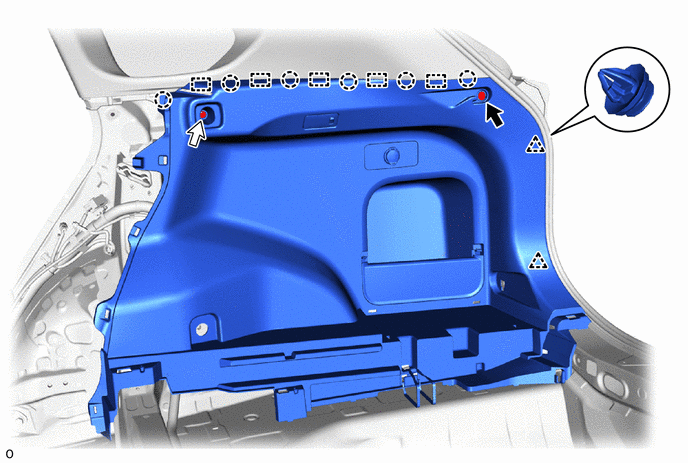

    1. Connect each connector.
    2. Attach the guide, claw and clip to install the deck trim side panel assembly RH.
    3. except "TORX" Screw:
      1. Install the screw.
    4. for "TORX" Screw:
      1. Using a T30 "TORX" socket wrench, install the "TORX" screw.
    5. Install the clip.
      GTY872771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Clip Screw or "TORX" Screw
  27. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY

    HINT:

    Use the same procedure for the opposite side.

    1. Attach the guide to install the luggage hold belt striker assembly with the bolt.
      GTY919538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL TETHER ANCHOR BRACKET SET

    HINT:

    Use the same procedure for the opposite side.

    1. Tighten the bolt to install the tether anchor bracket set.
      GTY919550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

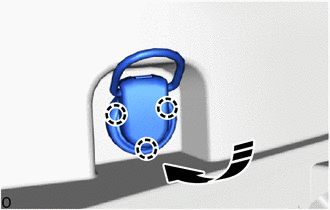

    2. Attach the claw as shown in the illustration.
      GTY869483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  29. INSTALL REAR SEAT SIDE GARNISH LH

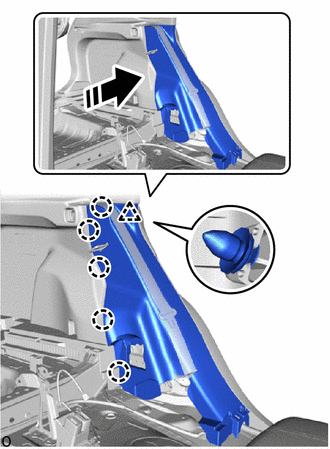

    1. Attach the claw and clip to install the rear seat side garnish LH as shown in the illustration.
      GTY922857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

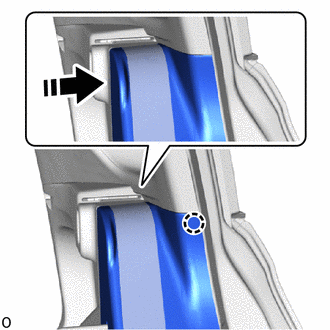

    2. Attach the claw as shown in the illustration.
      GTY908540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  30. INSTALL REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  31. INSTALL CENTER PILLAR GARNISH LH
    1. When reusing the center pillar garnish LH:
      1. Install a new clip.
        GTY913464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

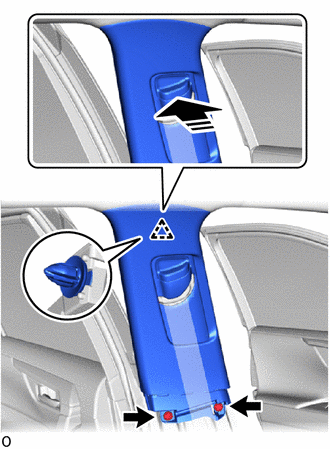

    2. Attach the clip to install the center pillar garnish LH as shown in the illustration.
      GTY913589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Install the 2 clips.
  32. INSTALL CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  33. INSTALL LOWER CENTER PILLAR GARNISH LH

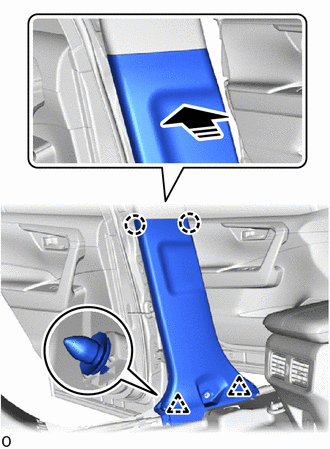

    1. Attach the clip and claw to install the lower center pillar garnish LH as shown in the illustration.
      GTY895191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  34. INSTALL LOWER CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  35. INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH
    1. Install the front seat outer belt assembly LH with the bolt.
      GTY944117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

  36. INSTALL FRONT SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  37. INSTALL OUTER LAP BELT ANCHOR COVER

    HINT:

    Use the same procedure for both outer lap belt anchor covers.

    1. Attach the guide and claw to install the outer lap belt anchor cover.
      GTY919491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. INSTALL FRONT PILLAR GARNISH LH

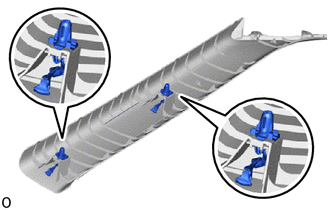

    1. Install new 2 front pillar garnish clips to the front pillar garnish LH.
      GTY919552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Make sure that the position and direction of the front pillar garnish clip is correct when installing.

    2. Peel off the adhesive tape and remove the protective cover.

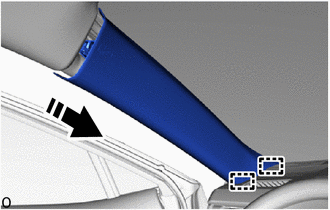

    3. Insert the guide in the direction indicated by the arrow shown in the illustration.
      GTY903416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

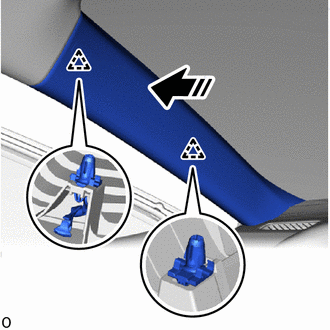

    4. Push in the direction indicated by the arrow shown in the illustration to attach the clip to install the front pillar garnish LH.
      GTY895026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  39. INSTALL FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  40. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 1

  41. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure described for the LH side.

  42. INSTALL COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 26

  43. INSTALL COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedure described for the LH side.

  44. INSTALL FRONT DOOR SCUFF PLATE LH

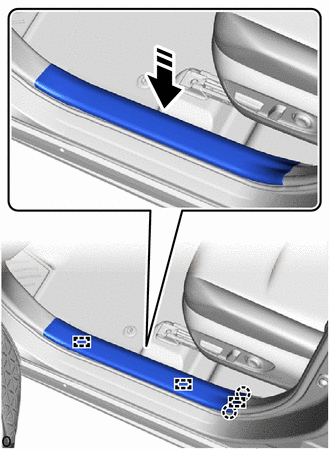

    1. Attach the claw and align the guide in the direction indicated by the arrow shown in the illustration.
      GTY844429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

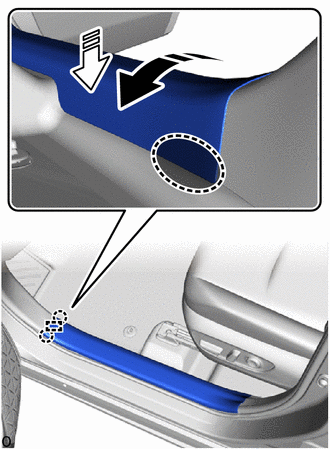

    2. Push in the installation direction (1) shown in the illustration to attach the claw on the vehicle exterior side and align the guide.
      GTY839392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Install in this Direction (1)
      Install in this Direction (2)
    3. Place your hand at the position shown in the illustration and attach the claw while pulling in the installation direction (2) to install the front door scuff plate LH.
  45. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure described for the LH side.

  46. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to INSTALLATION [11/2018 - ]

  47. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure described for the LH side.

  48. INSTALL REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE
    1. Attach the claw and clip to install the rear No. 1 floor mat support side plate with the 2 screws.
      GTY919536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  50. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

    Refer to PROCEDURE - Step 1

  51. INSTALL REAR SEATBACK HINGE SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 7

  52. INSTALL REAR SEATBACK HINGE SUB-ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

    Refer to PROCEDURE - Step 7

  53. INSTALL BATTERY SERVICE COVER BOARD (for HV Model)

    Refer to PROCEDURE - Step 5

  54. INSTALL NO. 3 BATTERY SERVICE COVER BOARD (for HV Model)

    Refer to PROCEDURE - Step 8

  55. INSTALL NO. 2 BATTERY SERVICE COVER BOARD (for HV Model)

    Refer to PROCEDURE - Step 6

  56. INSTALL REAR SEATBACK ASSEMBLY RH

    Refer to PROCEDURE - Step 10

  57. INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR)

    Refer to PROCEDURE - Step 4

  58. INSTALL REAR SEATBACK ASSEMBLY LH

    Refer to PROCEDURE - Step 12

  59. INSTALL REAR FLOOR FINISH PLATE
    1. Attach the claw and clip to install the rear floor finish plate.
      GTY919537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  60. INSTALL REAR DOOR SCUFF PLATE LH
    1. for Gasoline Model:

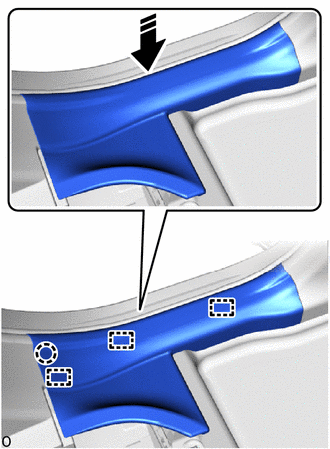

      1. Attach the claw and align the guide in the direction indicated by the arrow shown in the illustration.
        GTY921961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Install in this Direction

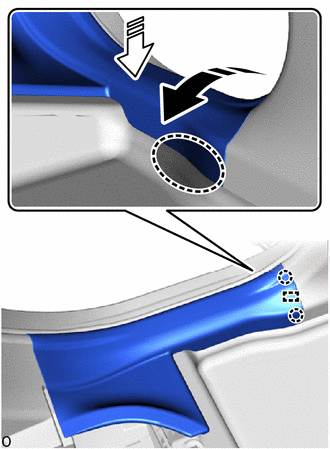

      2. Push in the installation direction (1) shown in the illustration to attach the claw on the vehicle exterior side and align the guide.
        GTY916780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Place Hand Here
        Install in this Direction (1)
        Install in this Direction (2)
      3. Place your hand at the position shown in the illustration and attach the claw while pulling in the installation direction (2) to install the rear door scuff plate LH.
    2. for HV Model:

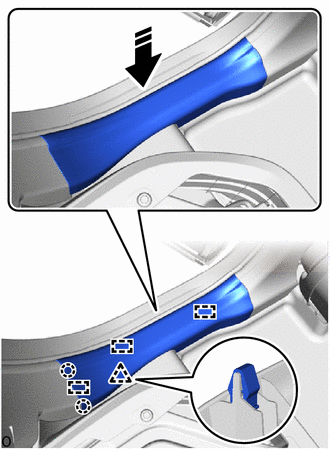

      1. Attach the claw and clip and align the guide in the direction indicated by the arrow shown in the illustration.
        GTY856030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Install in this Direction

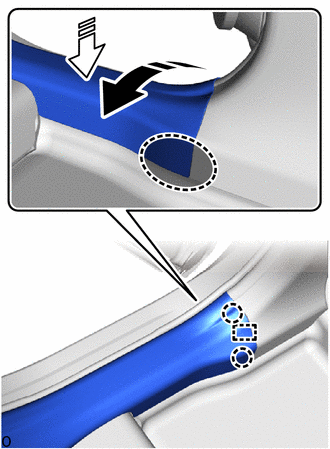

      2. Push in the installation direction (1) shown in the illustration to attach the claw on the vehicle exterior side and align the guide.
        GTY854175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Place Hand Here
        Install in this Direction (1)
        Install in this Direction (2)
      3. Place your hand at the position shown in the illustration and attach the claw while pulling in the installation direction (2) to install the rear door scuff plate LH.
  61. INSTALL REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure described for the LH side.

  62. INSTALL REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 13

  63. INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 14

  64. INSTALL SPARE WHEEL COVER STOPPER
    1. Install the spare wheel cover stopper.
      GTY919541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  65. INSTALL REAR NO. 3 FLOOR BOARD
    1. Attach the guide and clip to install the rear No. 3 floor board.
      GTY919540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  66. INSTALL REAR NO. 2 FLOOR BOARD
    1. Attach the guide and clip to install the rear No. 2 floor board.
      GTY919539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  67. INSTALL DECK BOARD ASSEMBLY
    1. Install the deck board assembly.
      GTY919543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  68. INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)
    1. Install the tonneau cover assembly.
      GTY919529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  69. INSPECT SEAT HEATER SYSTEM (w/ Seat Heater System)

    Refer to OPERATION CHECK [11/2018 - ]

scientia non olet · About LEMON Manuals
