Disassembly [12/2022 - ]: Procedure

  1. REMOVE REAR CENTER ULTRASONIC SENSOR (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 2

  2. REMOVE REAR CORNER ULTRASONIC SENSOR (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 3

  3. REMOVE REAR SIDE ULTRASONIC SENSOR (w/ Advanced Park)

    Refer to PROCEDURE - Step 4

  4. REMOVE REAR CENTER ULTRASONIC SENSOR RETAINER (w/ Parking Support Brake System)
    Refer to PROCEDURE - Step 5
  5. REMOVE REAR CORNER ULTRASONIC SENSOR RETAINER (w/ Parking Support Brake System)
    Refer to PROCEDURE - Step 6
  6. REMOVE REAR SIDE ULTRASONIC SENSOR RETAINER (w/ Advanced Park)
    Refer to PROCEDURE - Step 7
  7. REMOVE LICENSE PLATE LIGHT SUB-ASSEMBLY
    Refer to PROCEDURE - Step 1
  8. REMOVE BACK-UP LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  9. REMOVE BACK-UP LIGHT ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  10. REMOVE REAR SIDE MARKER LIGHT ASSEMBLY LH (w/ Side Marker Light)
    Refer to PROCEDURE - Step 2
  11. REMOVE REAR SIDE MARKER LIGHT ASSEMBLY RH (w/ Side Marker Light)
    1. Use the same procedure as for the LH side.

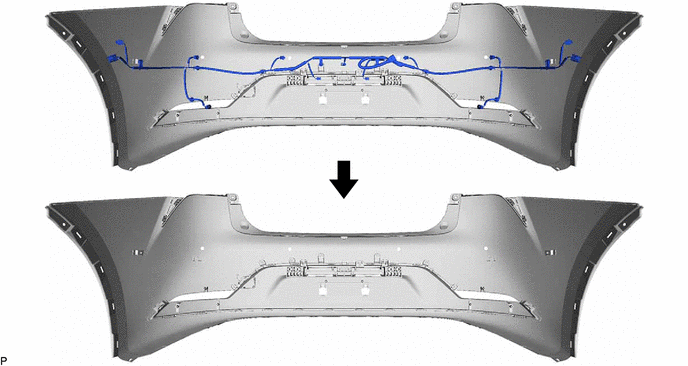

  12. REMOVE NO. 3 LUGGAGE ROOM WIRE

    HINT:

    The illustrations are representative examples, and details may differ.

    1. GTY1156016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

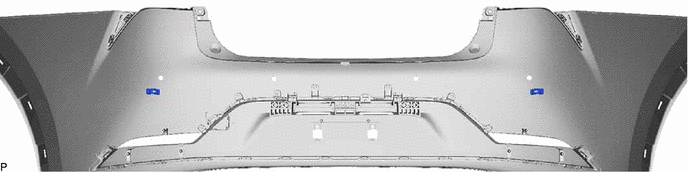

  13. REMOVE REAR ULTRASONIC SENSOR CLIP
    1. w/o Side Marker Light:
      GTY1147942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

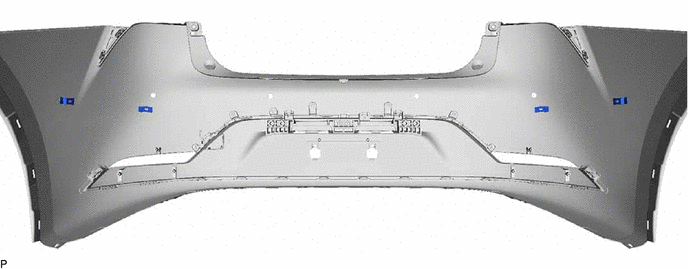

    2. w/ Side Marker Light:
      GTY1139455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE REAR BUMPER PAD

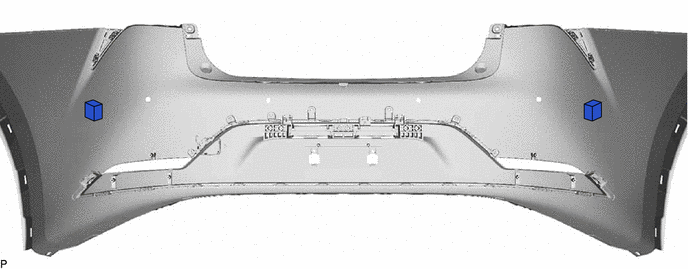

    1. GTY1139456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

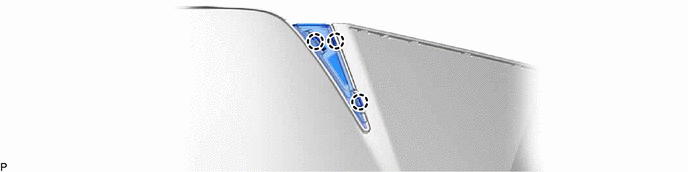

  15. REMOVE REAR BUMPER CORNER EXTENSION LH
    1. GTY1156034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE REAR BUMPER CORNER EXTENSION RH
    1. Use the same procedure as for the LH side.

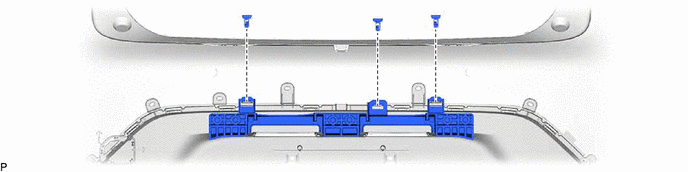

  17. REMOVE NO. 2 REAR BUMPER ENERGY ABSORBER (w/ No. 2 Rear Bumper Energy Absorber)
    1. GTY1156035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE REAR BUMPER COVER

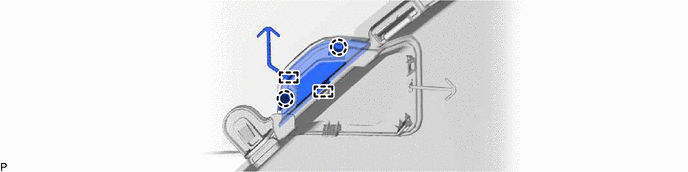

    1. GTY1156036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

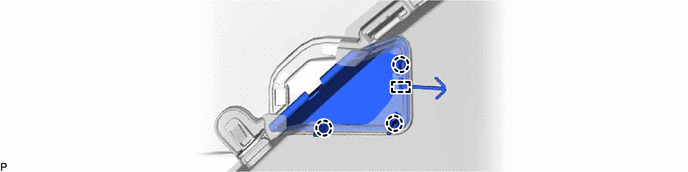

  19. REMOVE REAR BUMPER LOWER COVER
    1. GTY1156037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

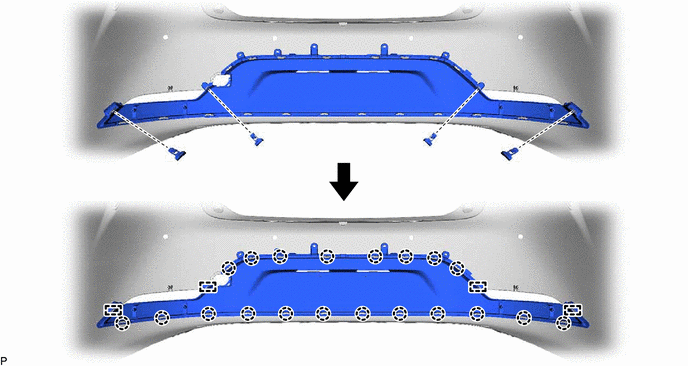

  20. REMOVE REAR BUMPER CENTER GUARD
    1. GTY1156038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

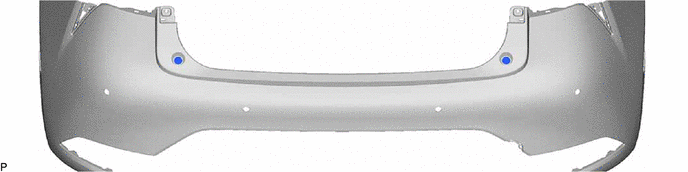

  21. REMOVE SEAL TAPE
    1. GTY1156029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE REAR COMBINATION LIGHT SUB-ASSEMBLY LH
    Refer to PROCEDURE - Step 2
  23. REMOVE REAR COMBINATION LIGHT SUB-ASSEMBLY RH
    1. Use the same procedure as for the LH side.

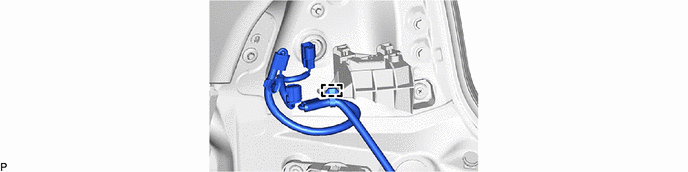

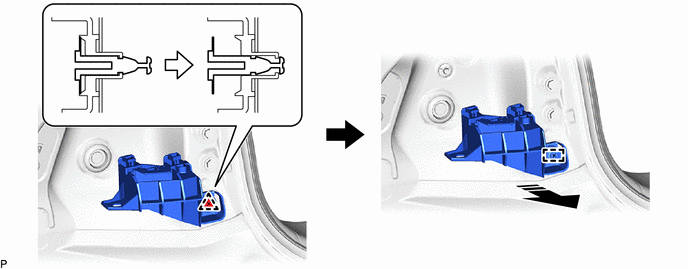

  24. REMOVE REAR BUMPER UPPER RETAINER LH

    HINT:

    Perform this procedure only when replacement of the rear bumper upper retainer is necessary.

    1. GTY1155838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY1156385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  25. REMOVE REAR BUMPER UPPER RETAINER RH
    1. Use the same procedure as for the LH side.

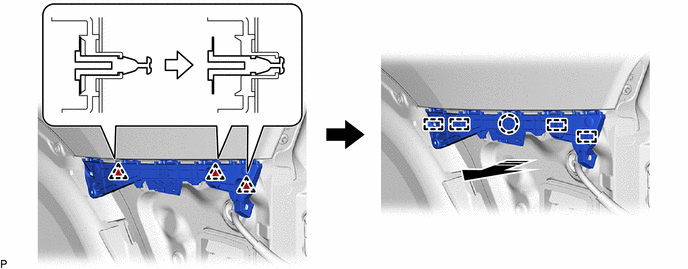

  26. REMOVE REAR BUMPER SIDE RETAINER LH

    HINT:

    Perform this procedure only when replacement of the rear bumper side retainer LH is necessary.

    1. GTY1150617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  27. REMOVE REAR BUMPER SIDE RETAINER RH
    1. Use the same procedure as for the LH side.
  28. REMOVE REAR BUMPER SIDE SEAL LH

    HINT:

    Perform this procedure only when replacement of the rear bumper side seal LH is necessary.

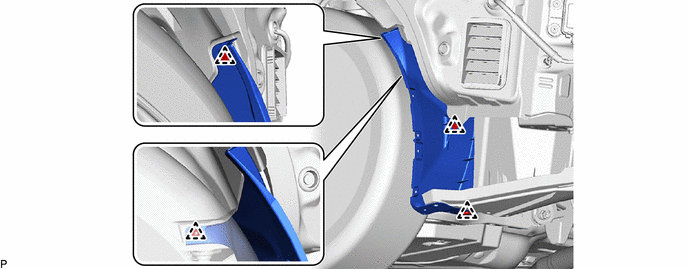

    1. GTY1155841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE REAR BUMPER SIDE SEAL RH
    1. Use the same procedure as for the LH side.

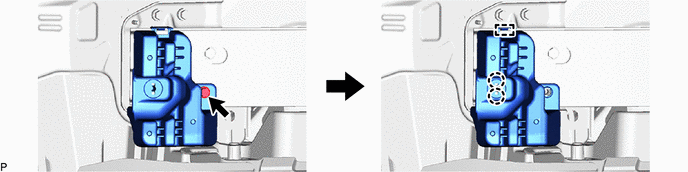

  30. REMOVE REAR BUMPER ARM REINFORCEMENT LH (for Type A)

    HINT:

    Perform this procedure only when replacement of the rear bumper arm reinforcement LH is necessary.

    1. GTY1155842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE REAR BUMPER ARM REINFORCEMENT RH (for Type A)
    1. Use the same procedure as for the LH side.

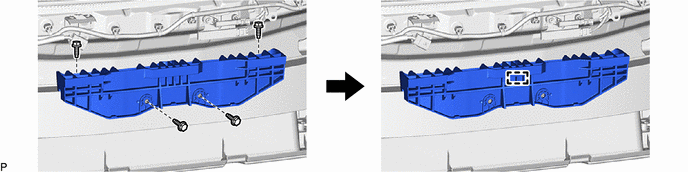

  32. REMOVE REAR BUMPER ENERGY ABSORBER (for Type A)

    HINT:

    Perform this procedure only when replacement of the rear bumper energy absorber is necessary.

    1. GTY1139417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

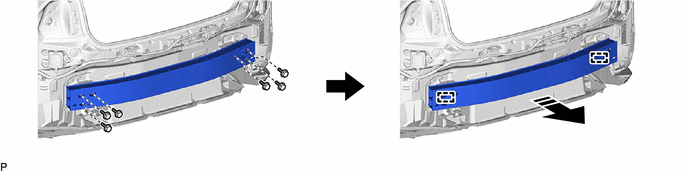

  33. REMOVE REAR BUMPER REINFORCEMENT SUB-ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the rear bumper reinforcement sub-assembly is necessary.

    1. for Type A:
      GTY1144213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

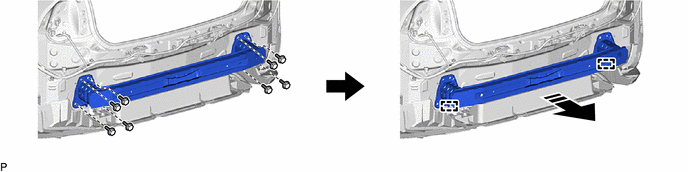

    2. for Type B:
      GTY1149147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

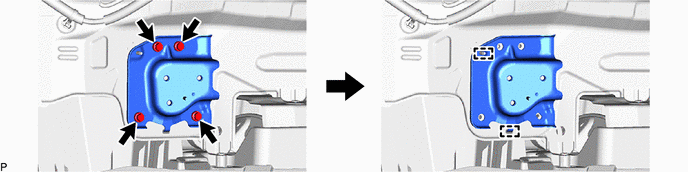

  34. REMOVE REAR BUMPER ARM LH (for Type A)

    HINT:

    Perform this procedure only when replacement of the rear bumper arm LH is necessary.

    1. GTY1155820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE REAR BUMPER ARM RH (for Type A)
    1. Use the same procedure as for the LH side.
