Removal [12/2022 - ]: Procedure

  1. REMOVE REAR COMBINATION LIGHT COVER

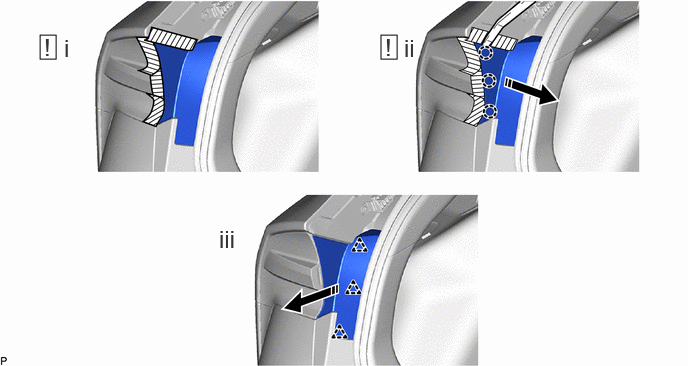

    1. GTY1159473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape Remove in this Direction
      1. Apply protective tape around the rear combination light cover as shown in the illustration.
      2. Using a moulding remover, disengage the 3 claws as shown in the illustration.
      3. Disengage the 3 clips as shown in the illustration to remove the rear combination light cover.
  2. REMOVE REAR COMBINATION LIGHT SUB-ASSEMBLY

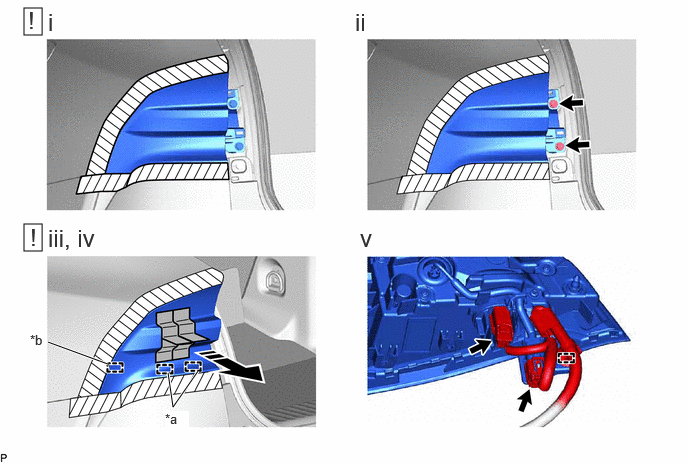

    1. GTY1146084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Guide *b Pin
      Protective Tape Tape
      Remove in this Direction - -
      1. Apply protective tape around the rear combination light sub-assembly as shown in the illustration.
      2. Remove the 2 screws.
      3. As shown in the illustration, arrange and attach tape to the rear combination light sub-assembly to make a handle for pulling.
        NOTE:

        Make sure to attach the tape firmly to the top and bottom surfaces of the protrusion.

      4. Pull the rear combination light sub-assembly toward the rear of the vehicle as shown in the illustration to disengage the pin and 2 guides and separate the rear combination light sub-assembly.
        NOTE:

        To prevent the rear combination light sub-assembly from falling when disengaging the pin and 2 guides, make sure to hold the rear combination light sub-assembly.

      5. Disengage the clamp and disconnect the 2 connectors to remove the rear combination light sub-assembly.
