Removal [12/2022 - ]: Procedure

  1. REMOVE REAR BUMPER ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

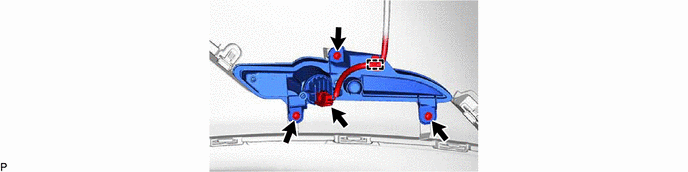

  2. REMOVE BACK-UP LIGHT ASSEMBLY
    1. GTY1147005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
