Removal [12/2022 - ]: Procedure

Refer to REMOVAL [12/2022 - ]

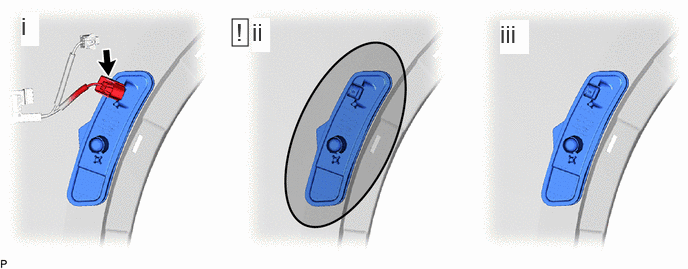

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Heated Area

   -

   -

   1. Disconnect the connector.
   2. Heat the adhesive of the rear bumper assembly and rear side marker light assembly using a heat light at the specified temperature for 3 to 5 minutes.

      Standard Value

      Part	Temperature
      Rear Bumper Assembly	40 to 60°C (104 to 140°F)
      Rear Side Marker Light Assembly

      WARNING:

      • Do not touch the heat light and heated parts.
      • Touching the heat light may result in burns.
      • Touching heated parts for a long time may result in burns.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Heated Part
      *b	Heat Light

      NOTE:

      Do not heat the rear bumper assembly and rear side marker light assembly excessively.

   3. Remove the rear side marker light assembly.

1. When reusing the rear side marker light assembly:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
