Removal [12/2022 - ]: Procedure

  1. REMOVE LICENSE PLATE LIGHT SUB-ASSEMBLY

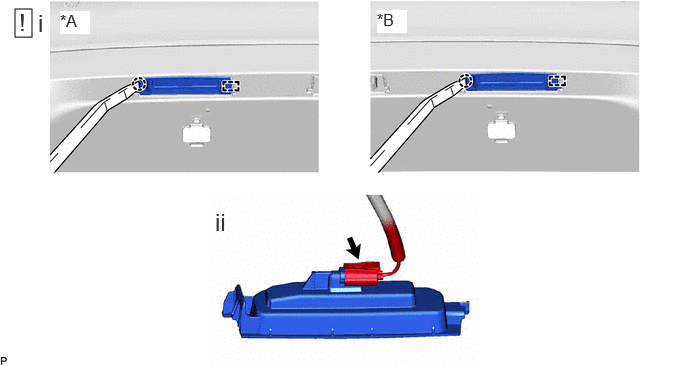

    1. GTY1147260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for LH Side *B for RH Side
      1. Using a moulding remover, disengage the claw and guide as shown in the illustration.
      2. Disconnect the connector to remove the license plate light sub-assembly.
