Removal [02/2024 - ]: Procedure

  1. PRECAUTION

    Refer to PRECAUTION [02/2024 - ]

  2. READ VALUE USING GTS
    Refer to PROCEDURE - Step 2
  3. REMOVE SERVICE PLUG GRIP

    Refer to REMOVAL [02/2024 - ]

  4. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Refer to REMOVAL [02/2024 - ]

  5. REMOVE UPPER INVERTER COVER SUB-ASSEMBLY
    Refer to PROCEDURE - Step 5
  6. REMOVE INVERTER TERMINAL COVER
    Refer to PROCEDURE - Step 6
  7. CHECK TERMINAL VOLTAGE
    Refer to PROCEDURE - Step 7
  8. INSTALL INVERTER TERMINAL COVER
    Refer to PROCEDURE - Step 15
  9. INSTALL UPPER INVERTER COVER SUB-ASSEMBLY
    Refer to PROCEDURE - Step 16
  10. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Refer to INSTALLATION [02/2024 - ]

  11. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Refer to PROCEDURE - Step 3

  12. REMOVE REAR NO. 2 SEAT ASSEMBLY (w/ Rear No. 2 Seat)

    Refer to REMOVAL [02/2024 - ]

  13. REMOVE DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 10

  14. REMOVE ROPE HOOK ASSEMBLY (w/o Rear No. 2 Seat)
    Refer to PROCEDURE - Step 9
  15. REMOVE DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 11

  16. REMOVE REAR FLOOR BOARD REAR LH (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 13

  17. REMOVE REAR FLOOR BOARD REAR RH (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 14

  18. REMOVE DECK SIDE TRIM BOX RH (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 16

  19. REMOVE REAR FLOOR REAR MAT SUPPORT PLATE (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 15

  20. REMOVE REAR DECK FLOOR BOX (w/o Rear No. 2 Seat)
    Refer to PROCEDURE - Step 12
  21. REMOVE REAR DECK FLOOR BOX (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 17

  22. REMOVE NO. 1 REAR FLOOR BOARD ASSEMBLY (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 18

  23. REMOVE ROPE HOOK ASSEMBLY

    Refer to PROCEDURE - Step 9

  24. REMOVE REAR FLOOR REAR MAT (w/ Rear No. 2 Seat)

    Refer to PROCEDURE - Step 23

  25. REMOVE EV BATTERY PANEL SUB-ASSEMBLY (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 24

  26. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 29

  27. REMOVE REAR DOOR SCUFF PLATE RH
    1. Use the same procedure described for the LH side.
  28. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
    HINT:
    Remove a part of the rear door opening trim weatherstrip LH so that the deck trim side panel assembly LH can be removed.

    Refer to REMOVAL [02/2024 - ]

  29. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
    1. Use the same procedure described for the LH side.
  30. REMOVE OUTER LAP BELT ANCHOR COVER

    Refer to PROCEDURE - Step 16

  31. REMOVE REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH (LAP BELT ANCHOR)

    Refer to PROCEDURE - Step 17

  32. REMOVE REAR NO. 1 SEAT OUTER BELT ASSEMBLY RH (LAP BELT ANCHOR)
    1. Use the same procedure described for the LH side.
  33. REMOVE REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH (LAP BELT ANCHOR) (w/ Rear No. 2 Seat)

    Refer to PROCEDURE - Step 3

  34. REMOVE REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH (LAP BELT ANCHOR) (w/ Rear No. 2 Seat)
    1. Use the same procedure described for the LH side.
  35. REMOVE NO. 1 TONNEAU COVER HOLDER CAP

    Refer to PROCEDURE - Step 49

  36. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 50

  37. REMOVE NO. 2 CUP HOLDER
    Refer to PROCEDURE - Step 51
  38. REMOVE NO. 1 CUP HOLDER
    1. Use the same procedure described for the LH side.
  39. REMOVE BATTERY SERVICE HOLE COVER ASSEMBLY LH

    Refer to PROCEDURE - Step 53

  40. REMOVE BATTERY SERVICE HOLE COVER ASSEMBLY RH
    1. Use the same procedure described for the LH side.
  41. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Refer to PROCEDURE - Step 55

  42. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

    Refer to PROCEDURE - Step 56

  43. REMOVE NO. 1 HV BATTERY INTAKE DUCT LH
    WARNING:

    Wear insulated gloves.

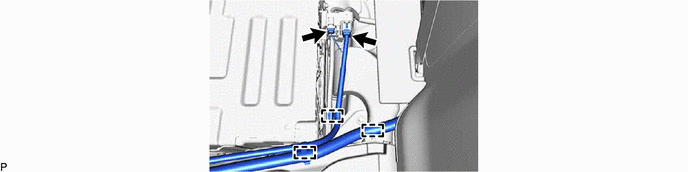

    1. GTY1224636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

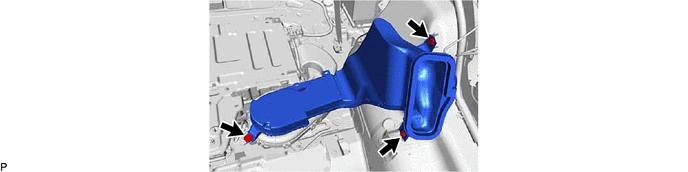

    2. GTY1224637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE NO. 1 HYBRID BATTERY INTAKE DUCT

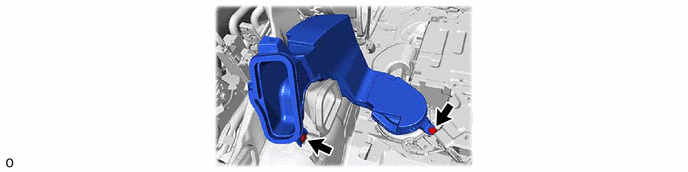

    1. GTY1221908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. REMOVE NO. 2 BATTERY COOLING BLOWER ASSEMBLY WITH NO. 2 HV BATTERY INTAKE DUCT LH
    NOTE:
    • Do not touch the rotating parts of the fan.
    • Make sure that foreign matter does not enter the inside of the blower case.

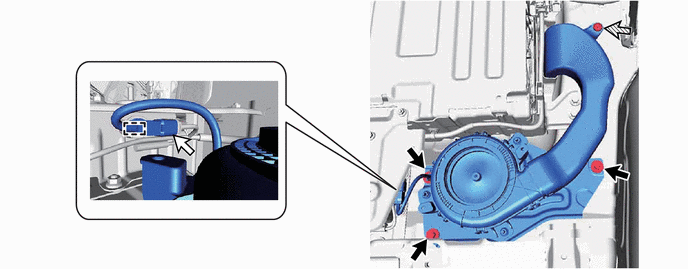

    1. GTY1225688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Connector
      Clip - -
  46. REMOVE BATTERY COOLING BLOWER ASSEMBLY WITH NO. 2 HYBRID BATTERY INTAKE DUCT
    NOTE:
    • Do not touch the rotating parts of the fan.
    • Make sure that foreign matter does not enter the inside of the blower case.

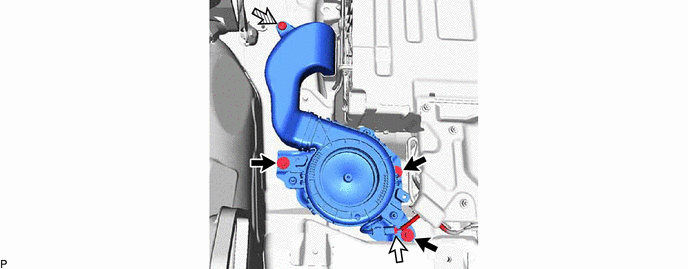

    1. GTY1224427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Connector
      Clip - -
  47. REMOVE NO. 2 HV BATTERY INTAKE DUCT LH
    NOTE:
    • Do not touch the rotating parts of the fan.
    • Make sure that foreign matter does not enter the inside of the blower case.

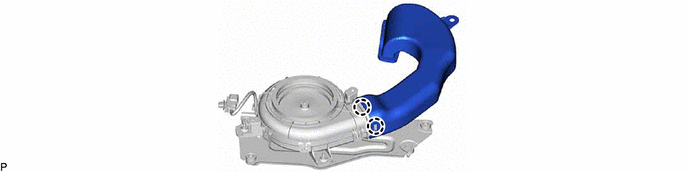

    1. GTY1224623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. INSTALL NO. 2 HYBRID BATTERY INTAKE DUCT
    NOTE:
    • Do not touch the rotating parts of the fan.
    • Make sure that foreign matter does not enter the inside of the blower case.

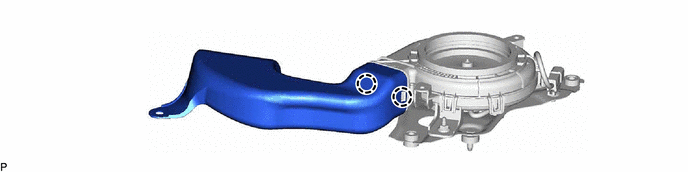

    1. GTY1226948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. REMOVE BATTERY COOLING BLOWER ASSEMBLY (for LH Side)
    NOTE:
    • Do not touch the rotating parts of the fan.
    • Make sure that foreign matter does not enter the inside of the blower case.

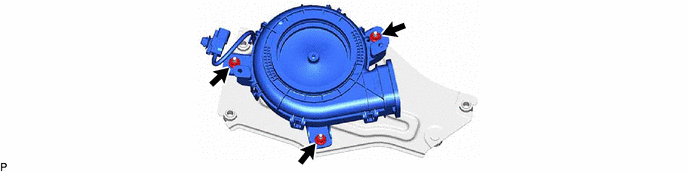

    1. GTY1224614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. REMOVE BATTERY COOLING BLOWER ASSEMBLY (for RH Side)
    NOTE:
    • Do not touch the rotating parts of the fan.
    • Make sure that foreign matter does not enter the inside of the blower case.

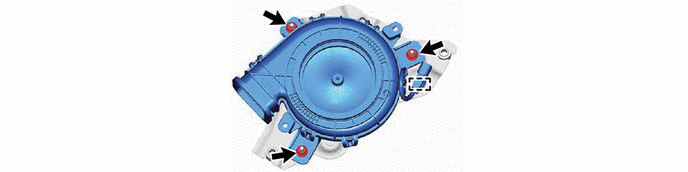

    1. GTY1224624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
