Removal [02/2024 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    Refer to PRECAUTION [02/2024 - ]

    GTY571595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [02/2024 - ]
  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    WARNING:
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to REMOVAL [02/2024 - ]

  3. REMOVE REAR NO. 2 SEAT ASSEMBLY (w/ Rear No. 2 Seat)

    Refer to REMOVAL [02/2024 - ]

  4. REMOVE TONNEAU COVER ASSEMBLY (w/o Rear No. 2 Seat, w/ Tonneau Cover)

    Refer to PROCEDURE - Step 3

  5. REMOVE ROPE HOOK ASSEMBLY (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 9

  6. REMOVE DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 10

  7. REMOVE DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 11

  8. REMOVE REAR FLOOR BOARD REAR LH (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 13

  9. REMOVE REAR FLOOR BOARD REAR RH (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 14

  10. REMOVE DECK SIDE TRIM BOX RH (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 16

  11. REMOVE REAR FLOOR MAT REAR SUPPORT PLATE (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 15

  12. REMOVE REAR DECK FLOOR BOX (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 17

  13. REMOVE REAR NO. 1 FLOOR BOARD ASSEMBLY (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 18

  14. REMOVE REAR DECK FLOOR BOX (w/o Rear No. 2 Seat)
    Refer to PROCEDURE - Step 12
  15. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 29

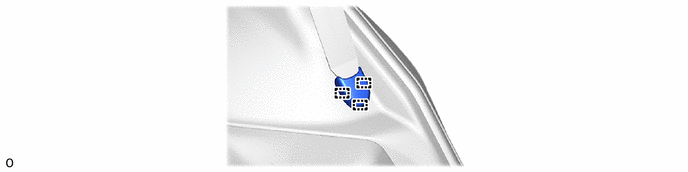

  16. REMOVE OUTER LAP BELT ANCHOR COVER
    1. GTY1211598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

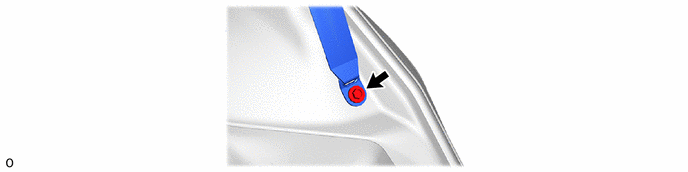

  17. REMOVE REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH (LAP BELT ANCHOR)
    1. GTY1211599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

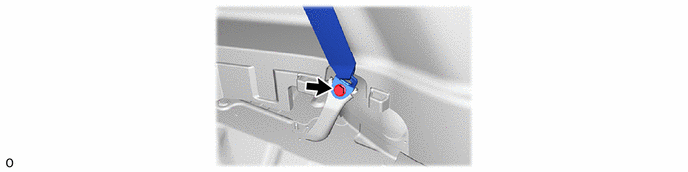

  18. REMOVE REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH (LAP BELT ANCHOR) (w/ Rear No. 2 Seat)
    1. GTY1218270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE NO. 1 TONNEAU COVER HOLDER CAP

    Refer to PROCEDURE - Step 49

  20. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 50

  21. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
    HINT:
    Remove the rear side of the rear door opening trim weatherstrip LH so that the deck trim side panel assembly LH and front quarter trim panel assembly LH can be removed.

    Refer to PROCEDURE - Step 2

  22. REMOVE NO. 2 CUP HOLDER
    Refer to PROCEDURE - Step 51
  23. REMOVE BATTERY SERVICE HOLE COVER ASSEMBLY LH

    Refer to PROCEDURE - Step 53

  24. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Refer to PROCEDURE - Step 55

  25. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)

    Refer to PROCEDURE - Step 56

  26. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY LH

    Refer to PROCEDURE - Step 57

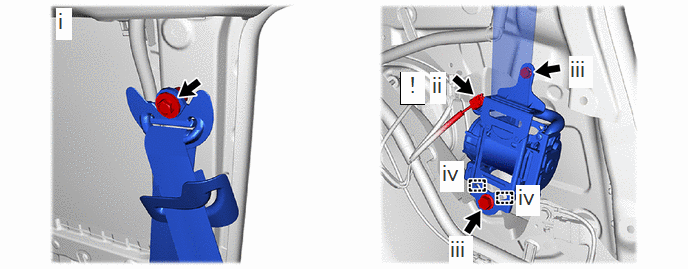

  27. REMOVE REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH
    1. GTY1226390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Loosen the bolt and remove the shoulder anchor of the rear No. 1 seat outer belt assembly LH.
      2. Disconnect the pretensioner connector.

        HINT:

        Refer to How to Connect or Disconnect Airbag Connector:

        Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [02/2024 - ]

      3. Remove the 2 bolts.
      4. Detach the guide and remove the rear No. 1 seat outer belt assembly LH.
