Removal [02/2024 - ]: Procedure
- PRECAUTION NOTE:
- If the HV supply battery assembly has been struck or dropped, replace it.
- When connecting a connector to the HV supply battery assembly, confirm that the connector is securely connected through the following:
- Push the connector until a click sound is heard.
- Visually check and confirm that the connector is securely connected by pulling on it.
- Make sure to insulate the high-voltage connectors and terminals of the HV supply battery assembly with insulating tape after removing it.
If the HV supply battery assembly stored without insulating the connectors and terminals, electric shock or fire may result.
- When performing repairs around the HV supply battery assembly, such as using a tap, do not allow metal shavings to enter the HV supply battery assembly.
- Do not touch any high voltage wire harnesses, connectors or parts with bare hands.

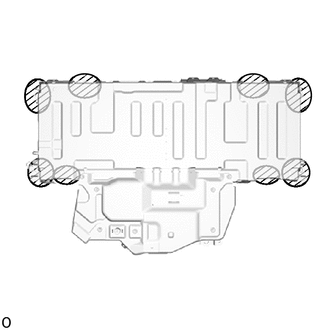

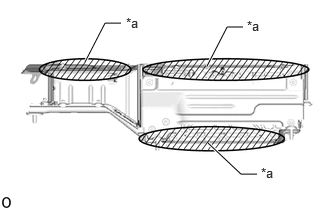

- Hold the areas shown in the illustration and lift the HV supply battery assembly.
- Do not allow foreign matter, such as grease or oil, to adhere to the bolts or nuts of the HV supply battery assembly.
- Do not put your hands into the openings of the HV supply battery assembly.
*a Opening - When removing/installing/moving the HV supply battery assembly assembly, make sure not to tilt it more than 80°.
- Do not climb on top of or stand on the HV supply battery assembly.
- Do not allow any foreign matter or water to enter the HV supply battery assembly.
- If any bolts, nuts or clips are dropped into the HV supply battery assembly, make sure to remove them.
- READ VALUE USING GTS
- Read the Data List.
Powertrain > Hybrid Control > Data List
Tester Display Hybrid/EV Battery Temperature 1 Hybrid/EV Battery Temperature 2 Hybrid/EV Battery Temperature 3 Hybrid/EV Battery Temperature 4 Hybrid/EV Battery Temperature 5 Hybrid/EV Battery Temperature 6 NOTE:If any of the temperatures listed in "Hybrid/EV Battery Temperature 1 to 6" are 50°C or more, leave the vehicle until the temperature drops to less than 50°C.
- Read the Data List.
- REMOVE SERVICE PLUG GRIP
Refer to REMOVAL [02/2024 - ]
- REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
Refer to REMOVAL [02/2024 - ]
- REMOVE UPPER INVERTER COVER SUB-ASSEMBLY
See step 5 - REMOVE INVERTER TERMINAL COVER
See step 6 - CHECK TERMINAL VOLTAGE
See step 7 - INSTALL INVERTER TERMINAL COVER
See step 15 - INSTALL UPPER INVERTER COVER SUB-ASSEMBLY
See step 16 - INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
Refer to INSTALLATION [02/2024 - ]
- REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)
Refer to PROCEDURE - Step 3
- REMOVE REAR NO. 2 SEAT ASSEMBLY (w/ Rear No. 2 Seat)
Refer to REMOVAL [02/2024 - ]
- REMOVE DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)
Refer to PROCEDURE - Step 10
- REMOVE ROPE HOOK ASSEMBLY (w/o Rear No. 2 Seat)
Refer to PROCEDURE - Step 9 - REMOVE DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)
Refer to PROCEDURE - Step 11
- REMOVE REAR FLOOR BOARD REAR LH (w/o Rear No. 2 Seat)
Refer to PROCEDURE - Step 13
- REMOVE REAR FLOOR BOARD REAR RH (w/o Rear No. 2 Seat)
Refer to PROCEDURE - Step 14
- REMOVE DECK SIDE TRIM BOX RH (w/o Rear No. 2 Seat)
Refer to PROCEDURE - Step 16
- REMOVE REAR FLOOR REAR MAT SUPPORT PLATE (w/o Rear No. 2 Seat)
Refer to PROCEDURE - Step 15
- REMOVE REAR DECK FLOOR BOX (w/o Rear No. 2 Seat)
Refer to PROCEDURE - Step 12 - REMOVE REAR DECK FLOOR BOX (w/o Rear No. 2 Seat)
Refer to PROCEDURE - Step 17
- REMOVE NO. 1 REAR FLOOR BOARD ASSEMBLY (w/o Rear No. 2 Seat)
Refer to PROCEDURE - Step 18
- REMOVE REAR FLOOR REAR MAT (w/ Rear No. 2 Seat)

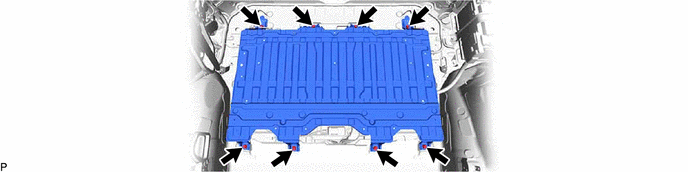

- REMOVE EV BATTERY PANEL SUB-ASSEMBLY (w/o Rear No. 2 Seat)
- REMOVE NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY
Refer to PROCEDURE - Step 8

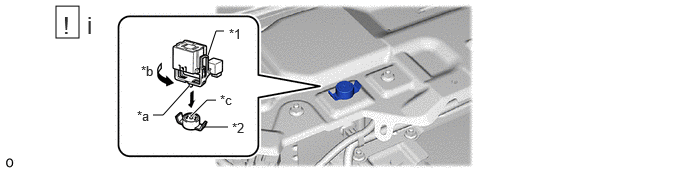

- REMOVE BATTERY COVER LOCK STRIKER WARNING:
Wear insulated gloves.

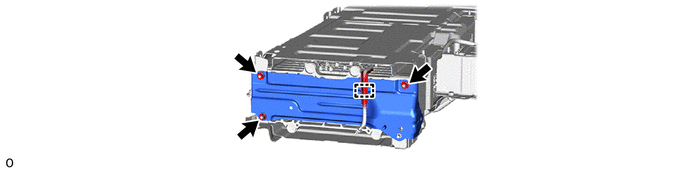

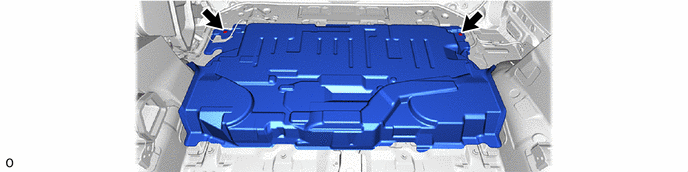

- REMOVE NO. 9 HV BATTERY SHIELD PANEL WARNING:
Wear insulated gloves.

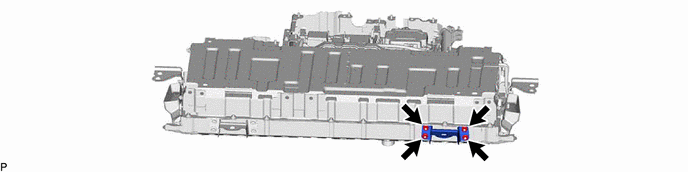

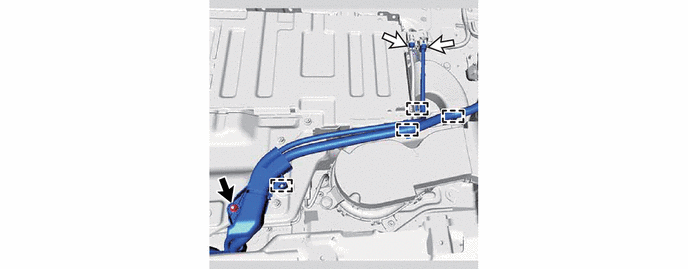

- DISCONNECT FLOOR UNDER WIRE WARNING:
Wear insulated gloves.
- DISCONNECT NO. 3 FLOOR WIRE WARNING:
Wear insulated gloves.

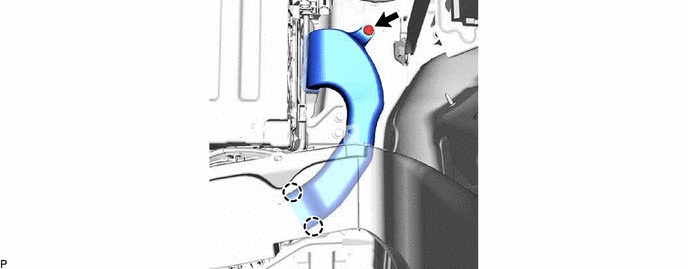

- REMOVE NO. 2 HV BATTERY INTAKE DUCT LH

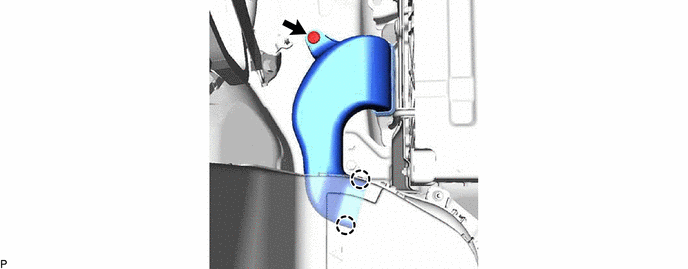

- REMOVE NO. 2 HYBRID BATTERY INTAKE DUCT

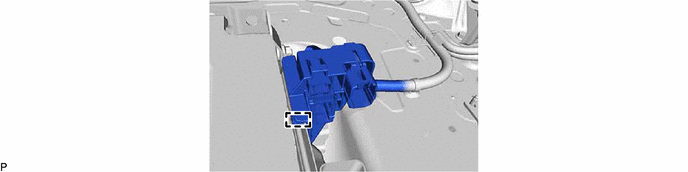

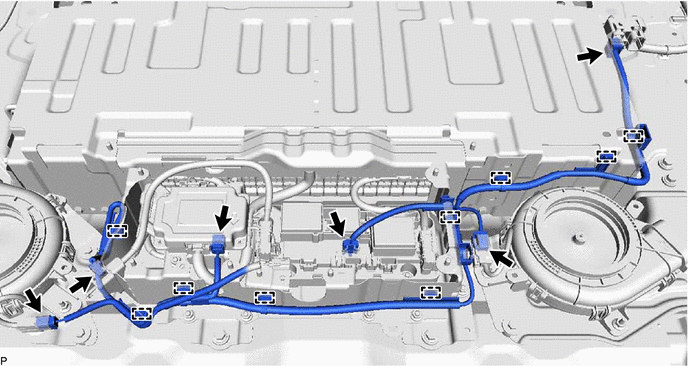

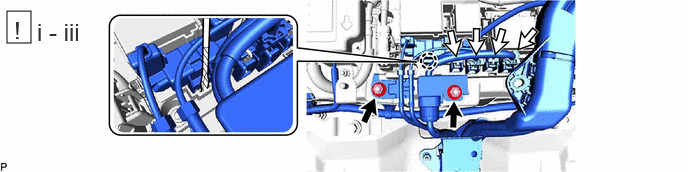

- DISCONNECT FLOOR WIRE
- REMOVE HV SUPPLY BATTERY ASSEMBLY WARNING:
Wear insulated gloves.

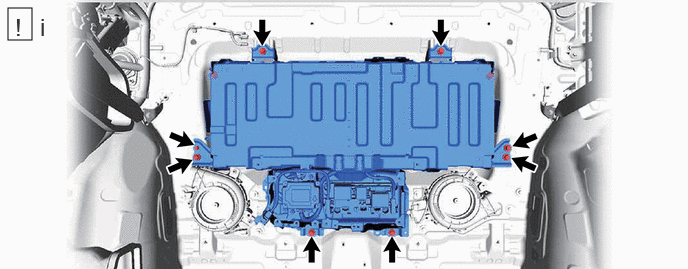

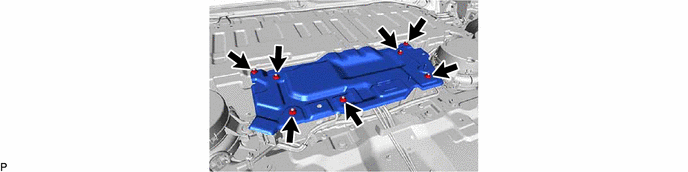

- Remove the 8 bolts and HV supply battery assembly.NOTE:
- Do not allow foreign matter, such as grease or oil, to adhere to the bolts of the HV supply battery assembly.
- To prevent the wire harness from being caught, make sure to bundle the wire harness using insulating tape or equivalent.
- Since the HV supply battery assembly is very heavy, 2 people are needed to remove it. When removing the HV supply battery assembly, be careful not to damage the parts around it.
- When removing/installing/moving the HV supply battery assembly, make sure not to tilt it more than 80°.
- If the HV supply battery assembly has been struck or dropped, replace it.
- Remove the 8 bolts and HV supply battery assembly.

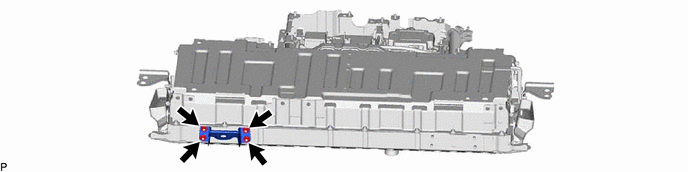

- REMOVE NO. 11 EV BATTERY CARRIER BRACKET WARNING:
Wear insulated gloves.
- REMOVE NO. 10 EV BATTERY CARRIER BRACKET WARNING:
Wear insulated gloves.

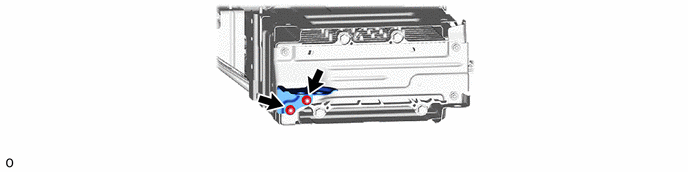

- REMOVE NO. 3 HYBRID BATTERY INTAKE DUCT LH WARNING:
Wear insulated gloves.

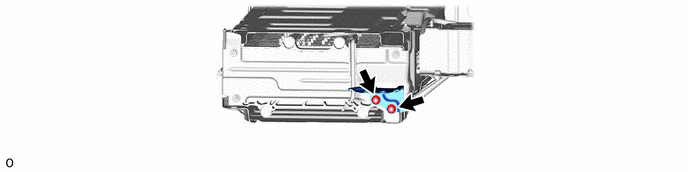

- REMOVE NO. 3 HYBRID BATTERY INTAKE DUCT RH WARNING:
Wear insulated gloves.

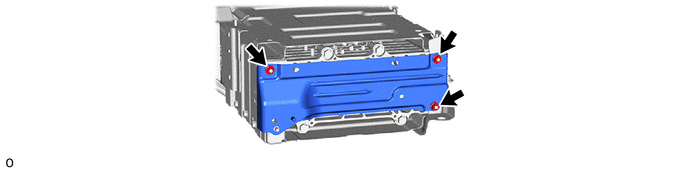

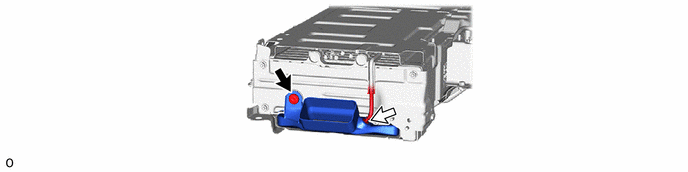

- REMOVE NO. 2 HV BATTERY SHIELD PANEL WARNING:
Wear insulated gloves.
- REMOVE NO. 1 HV BATTERY SHIELD PANEL WARNING:
Wear insulated gloves.

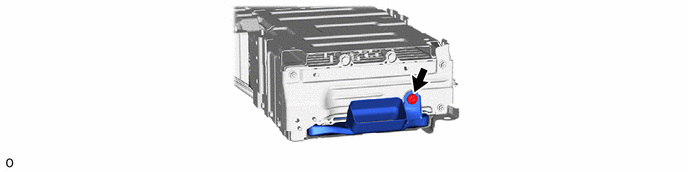

- REMOVE NO. 13 EV BATTERY CARRIER BRACKET WARNING:
Wear insulated gloves.
- REMOVE NO. 12 EV BATTERY CARRIER BRACKET WARNING:
Wear insulated gloves.
