Removal [02/2024 - ]: Procedure

  1. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Refer to REMOVAL [02/2024 - ]

  2. REMOVE REAR QUARTER TRIM PANEL ASSEMBLY LH

    Refer to PROCEDURE - Step 59

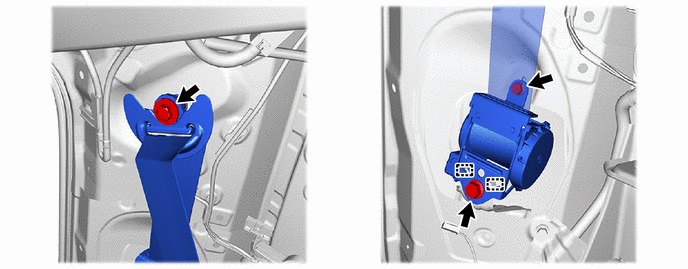

  3. REMOVE REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH
    1. GTY1211810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

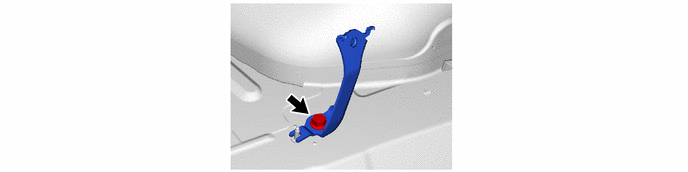

  4. REMOVE REAR SEAT OUTER BELT ANCHOR PLATE SUB-ASSEMBLY LH

    HINT:

    Perform this procedure when removing the rear seat outer belt anchor plate sub-assembly LH.

    1. GTY1211844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
