Disassembly [02/2024 - ]: Procedure
- PRECAUTION NOTE:

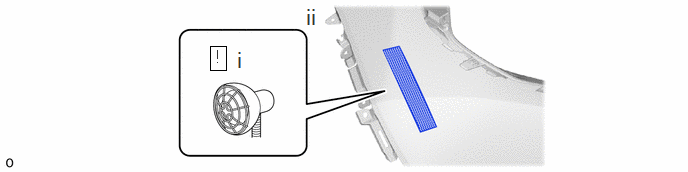

When removing parts with double-sided tape applied, heat the portion of the parts with tape residue with a heat light if the double-sided tape is difficult to remove.
Standard Value
Part Temperature Metal parts 40 to 60°C (104 to 140°F) Resin parts 20 to 30°C (68 to 86°F) WARNING:- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
*a Heated Part *b Heat Light NOTE:Do not heat the part excessively.
- REMOVE RADIATOR SHUTTER ASSEMBLY
See step 2
- REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
Refer to PROCEDURE - Step 2
- REMOVE FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)
Refer to PROCEDURE - Step 2
- REMOVE FRONT CENTER ULTRASONIC SENSOR
Refer to PROCEDURE - Step 2
- REMOVE FRONT CORNER ULTRASONIC SENSOR
Refer to PROCEDURE - Step 3

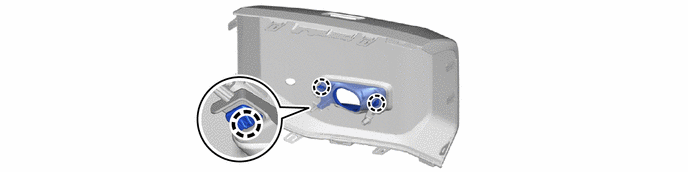

- REMOVE FRONT CENTER ULTRASONIC SENSOR RETAINER
Refer to PROCEDURE - Step 4 - REMOVE FRONT CORNER ULTRASONIC SENSOR RETAINER
- Use the same procedure described for the front center ultrasonic sensor retainer.
- REMOVE FOG LIGHT UNIT LH (w/ Fog Light)
Refer to PROCEDURE - Step 2
- REMOVE FOG LIGHT UNIT RH (w/ Fog Light)
- Use the same procedure described for the LH side.

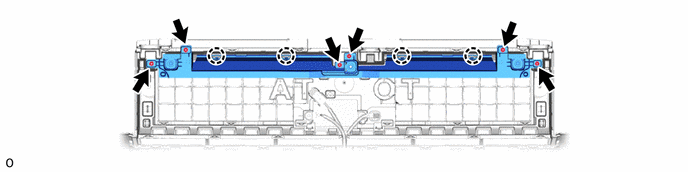

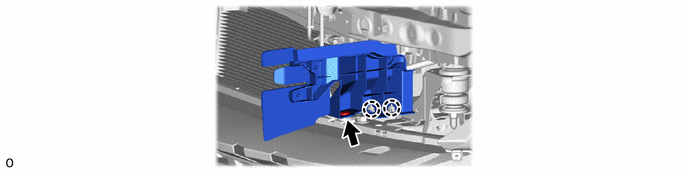

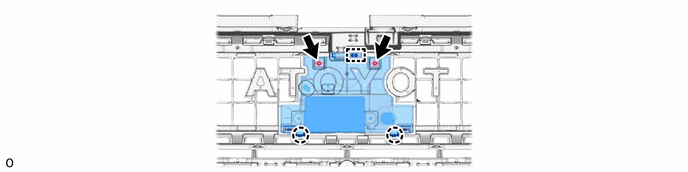

- REMOVE NO. 1 RADIATOR GRILLE RETAINER
- REMOVE NO. 2 RADIATOR GRILLE BRACKET
- Use the same procedure described for the No. 1 radiator grille retainer.

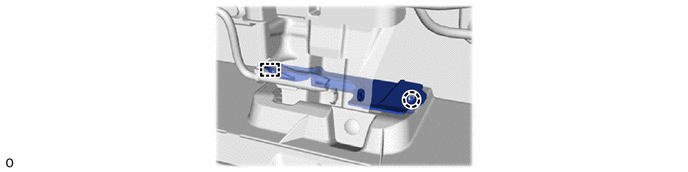

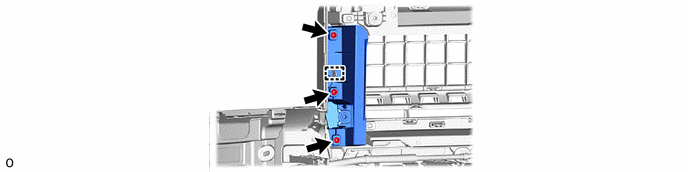

- REMOVE RADIATOR GRILLE BRACKET

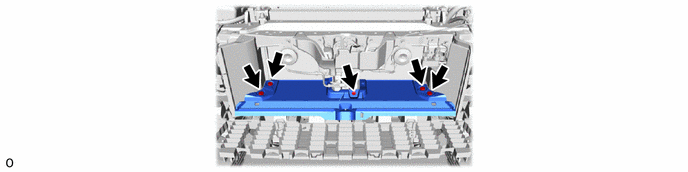

- REMOVE NO. 2 RADIATOR GRILLE RETAINER

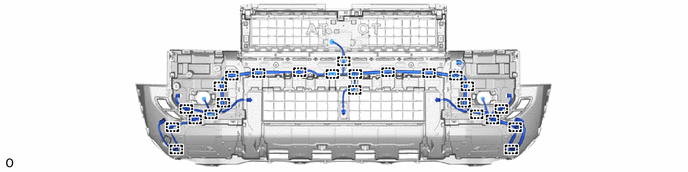

- REMOVE NO. 4 ENGINE ROOM WIRE
HINT:
The illustration is an example, so the details may differ.

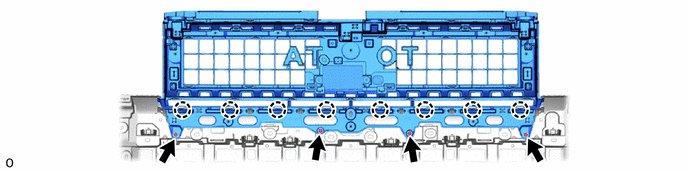

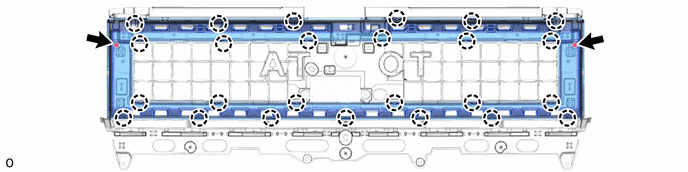

- REMOVE RADIATOR GRILLE

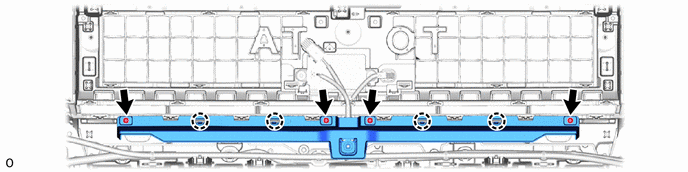

- REMOVE RADIATOR GRILLE MOULDING
- REMOVE NO. 1 RADIATOR GRILLE GARNISH (w/ Garnish)

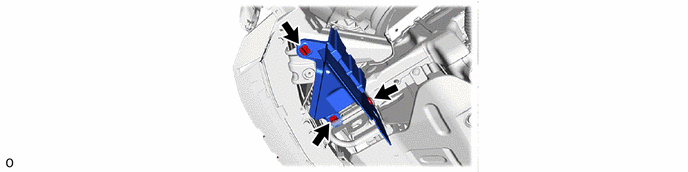

- REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET
- REMOVE FRONT BUMPER GUARD

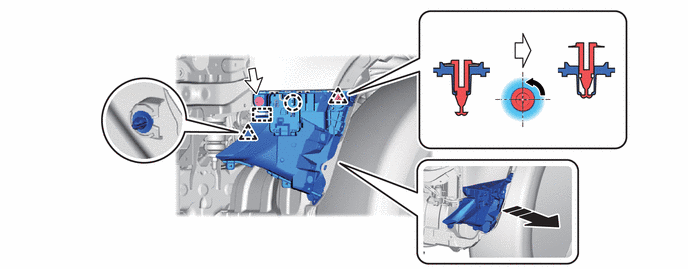

- REMOVE FRONT BUMPER EXTENSION LH
- REMOVE FRONT BUMPER EXTENSION RH
- Use the same procedure described for the LH side.
- REMOVE FRONT BUMPER GARNISH LH
- REMOVE FRONT BUMPER GARNISH
- Use the same procedure described for the LH side.
- REMOVE NO. 1 MOULDING TAPE
- REMOVE SIDE BUMPER SUB-ASSEMBLY LH
- REMOVE SIDE BUMPER SUB-ASSEMBLY RH
- Use the same procedure described for the LH side.

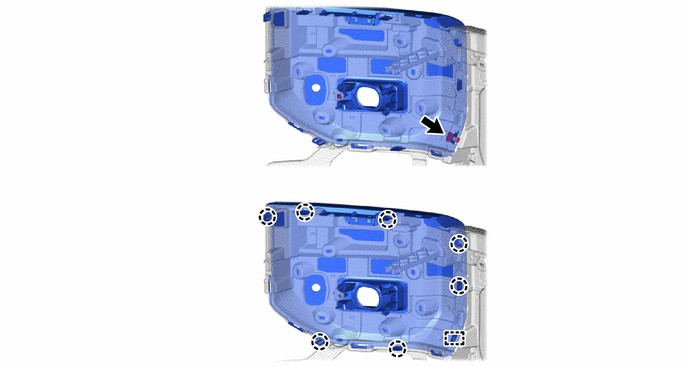

- REMOVE FOG LIGHT COVER LH
HINT:
The illustration is an example, so the details may differ.
- REMOVE FOG LIGHT COVER RH
- Use the same procedure described for the LH side.
- REMOVE FRONT CENTER BUMPER SUB-ASSEMBLY
- REMOVE NO. 2 RADIATOR GRILLE SEAL
- REMOVE RADIATOR GRILLE SEAL
- Use the same procedure described for the No. 2 radiator grille seal.

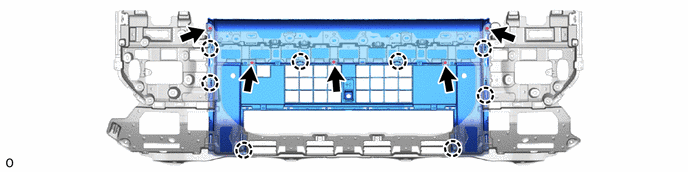

- REMOVE NO. 2 RADIATOR GRILLE GARNISH
HINT:
The illustration is an example, so the details may differ.
- REMOVE FRONT SPOILER SIDE PROTECTOR LH
- REMOVE FRONT SPOILER SIDE PROTECTOR RH
- Use the same procedure described for the LH side.

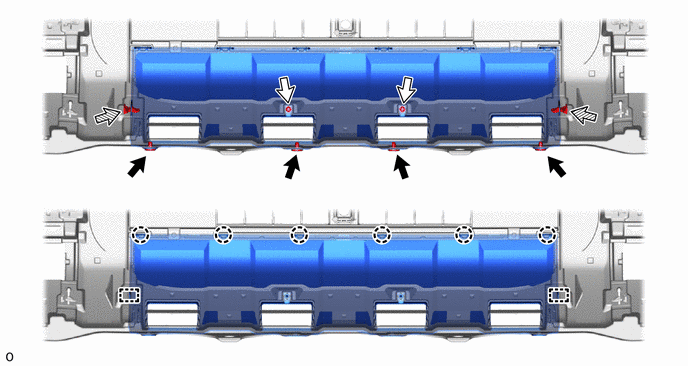

- REMOVE NO. 2 RADIATOR AIR GUIDE
- REMOVE NO. 2 RADIATOR AIR GUIDE
- REMOVE FRONT BUMPER ENERGY ABSORBER

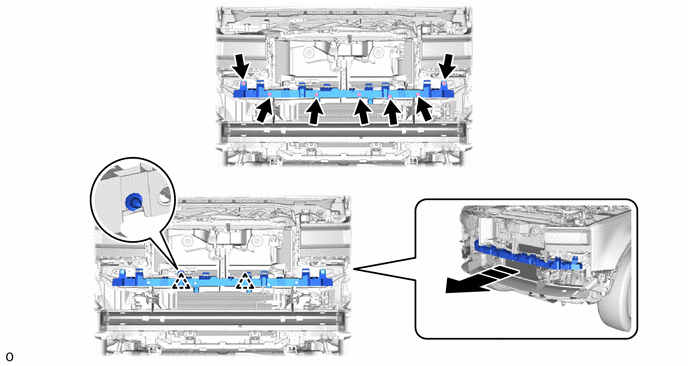

- REMOVE FRONT BUMPER UPPER CENTER RETAINER

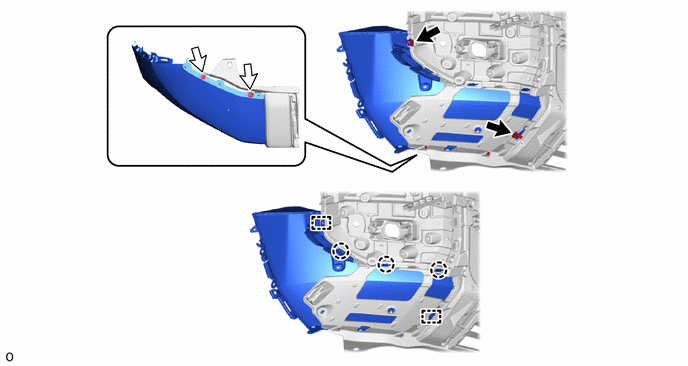

- REMOVE NO. 2 COOL AIR INTAKE DUCT
- REMOVE NO. 1 COOL AIR INTAKE DUCT
- Use the same procedure described for the No. 2 cool air intake duct.

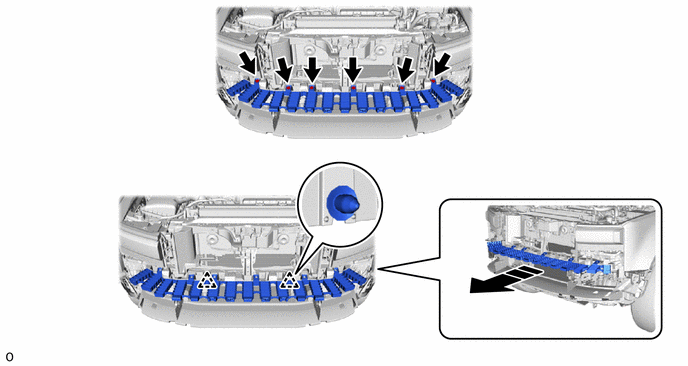

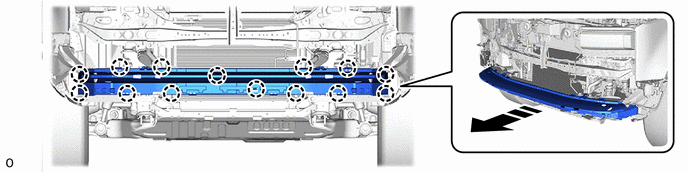

- REMOVE FRONT BUMPER LOWER ABSORBER
- REMOVE FRONT BUMPER NO. 2 RETAINER BRACKET

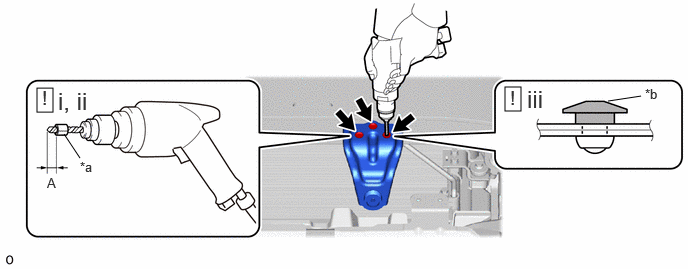

*a Tape *b Flange - Insert a 6.0 mm (0.236 in.) drill bit into a drill.
- Tape the 6.0 mm (0.236 in.) drill bit 5.0 mm (0.197 in.) from the tip as shown in the illustration.
Standard Measurement
Area Measurement Area Measurement A 5.0 mm (0.197 in.) - - NOTE:Tape the 6.0 mm (0.236 in.) drill bit to prevent the drill bit from going too deep.
- Lightly press the drill against the rivets to drill off the rivet flanges, and remove the 3 rivets.WARNING:
Be careful of the drilled rivets, as they may be hot.
NOTE:- Pressing the drill too firmly will cause the rivet to turn and result in the rivet not being drilled through.
- Prying the rivets with the drill may damage the rivet installation holes or drill bit.
- Detach the guide and remove the front bumper No. 2 retainer bracket.
- REMOVE FRONT BUMPER NO. 1 RETAINER BRACKET
- Use the same procedure described for the front bumper No. 2 retainer bracket.
- REMOVE FRONT BUMPER MOUNTING BRACKET

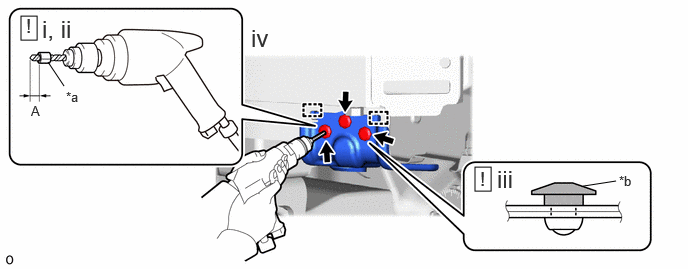

*a Tape *b Flange - Insert a 6.0 mm (0.236 in.) drill bit into a drill.
- Tape the 6.0 mm (0.236 in.) drill bit 5.0 mm (0.197 in.) from the tip as shown in the illustration.
Standard Measurement
Area Measurement Area Measurement A 5.0 mm (0.197 in.) - - NOTE:Tape the 6.0 mm (0.236 in.) drill bit to prevent the drill bit from going too deep.
- Lightly press the drill against the rivets to drill off the rivet flanges, and remove the 3 rivets and front bumper mounting bracket.WARNING:
Be careful of the drilled rivets, as they may be hot.
NOTE:- Pressing the drill too firmly will cause the rivet to turn and result in the rivet not being drilled through.
- Prying the rivets with the drill may damage the rivet installation holes or drill bit.
- Use the same procedure for the other side.

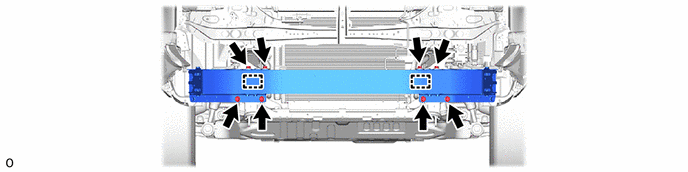

- REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY
- REMOVE FRONT BUMPER ARM SUB-ASSEMBLY LH
- REMOVE FRONT BUMPER ARM SUB-ASSEMBLY RH
- Use the same procedure described for the LH side.
- REMOVE FRONT SIDE RADAR SENSOR

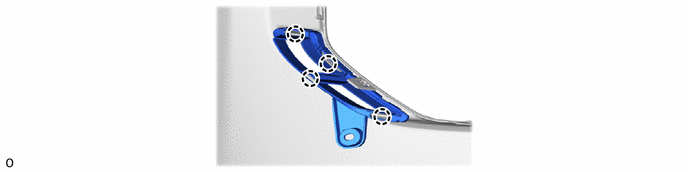

Refer to PROCEDURE - Step 3 - REMOVE FRONT BUMPER SIDE RETAINER LH
- REMOVE FRONT BUMPER SIDE RETAINER RH
- Use the same procedure described for the LH side.
