Removal [02/2024 - ]: Procedure

Refer to REMOVAL [02/2024 - ]

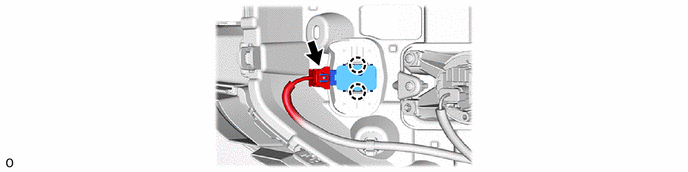

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. The orientation for the RH side is the opposite of the LH side.

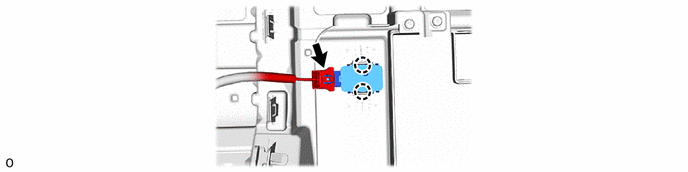

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. The orientation for the RH side is the opposite of the LH side.

HINT:

Perform this procedure only when replacement of the front center ultrasonic sensor retainer is necessary.

WARNING:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

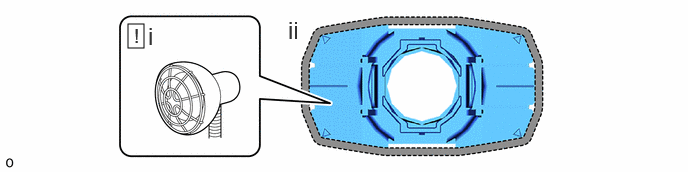

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

Standard Value

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Heated Area

   -

   -

   1. Heat the adhesive of the front bumper assembly and front center ultrasonic sensor retainer using a heat light.
   2. Remove the front center ultrasonic sensor retainer.
2. The orientation for the RH side is the opposite of the LH side.

HINT:

Perform this procedure only when replacement of the front corner ultrasonic sensor retainer is necessary.

1. Use the same procedure described for the front center ultrasonic sensor retainer.

HINT:

Perform this procedure only when replacement of the ultrasonic sensor cushion set is necessary.

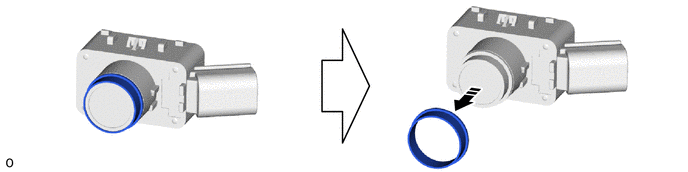

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

   -

   -
