Removal [02/2024 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [02/2024 - ]

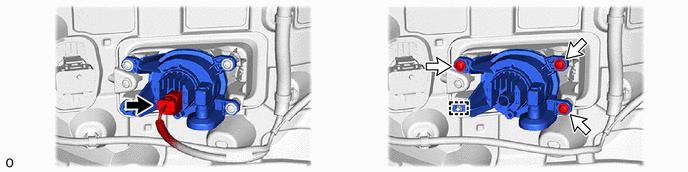

  2. REMOVE FOG LIGHT UNIT LH
    1. GTY1226765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connector Screw
