Removal [02/2024 - ]: Procedure

  1. FRONT SIDE RADAR ECU DATA SAVE

    See step  1

  2. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [02/2024 - ]

  3. REMOVE FRONT SIDE RADAR SENSOR
    NOTE:
    • Do not drop the front side radar sensor.
    • If the front side radar sensor is dropped, replace it with a new one.

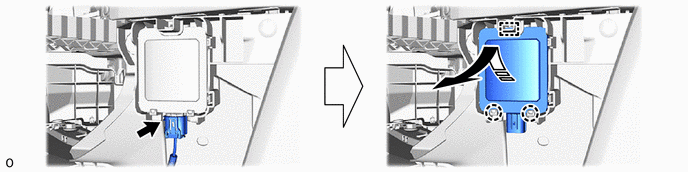

    1. GTY1221727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
    2. The orientation for the RH side is the opposite of the LH side.
