Removal [09/2024 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY (for UC80F)

    Refer to REMOVAL [09/2024 - ]

  2. REMOVE MANUAL TRANSAXLE ASSEMBLY (for EA67F)

    Refer to REMOVAL [11/2022 - ]

  3. REMOVE EXHAUST PIPE SUPPORT STAY (for UC80F)

    Refer to PROCEDURE - Step 23

  4. REMOVE TRANSFER ASSEMBLY
    1. Type A:

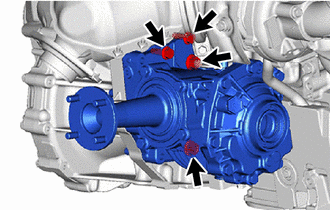

      1. Remove the 2 bolts and 2 nuts.
        GTY1023112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Type B:

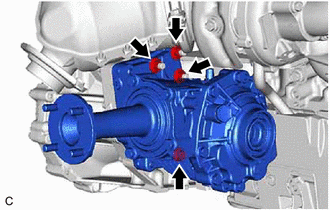

      1. Remove the 4 nuts.
        GTY1111030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

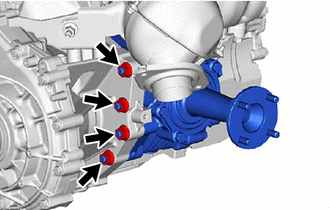

    3. GTY1114477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 4 nuts and transfer assembly.
