Removal [09/2024 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [09/2022 - ]

  2. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    Refer to PROCEDURE - Step 1

  3. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PRECAUTION [11/2022 - ]

  4. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  5. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  6. REMOVE BATTERY

    Refer to PROCEDURE - Step 3

  7. SECURE STEERING WHEEL

    Refer to PROCEDURE - Step 2

  8. REMOVE FRONT WHEELS

    Refer to REMOVAL [09/2022 - ]

  9. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
    1. Remove the 4 bolts, 10 clips and No. 1 engine under cover assembly from the vehicle.

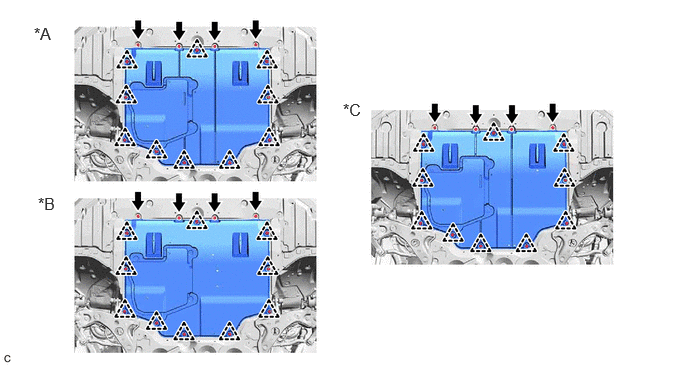

      GTY941877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Type A *B Type B
      *C Type C - -
  10. REMOVE REAR ENGINE UNDER COVER LH
    1. Remove the 3 clips.

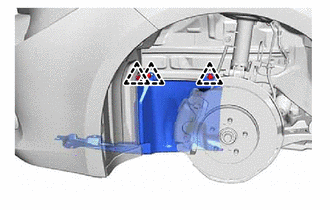

      GTY1107198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Type A:
      1. Remove the screw.
        GTY941508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the clip and rear engine under cover LH from the vehicle.
    3. Type B:
      1. Remove the screw.

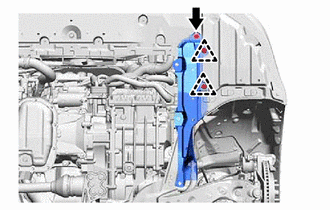

        GTY907707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the 2 clips and rear engine under cover LH from the vehicle.
  11. REMOVE REAR ENGINE UNDER COVER RH
    1. Remove the 3 clips.

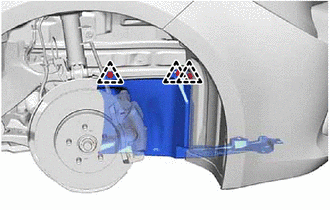

      GTY907705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Type A:
      1. Remove the screw.

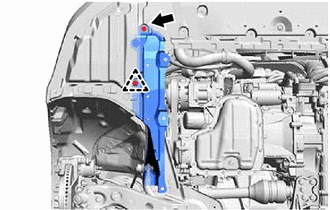

        GTY907704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the clip and rear engine under cover RH from the vehicle.
    3. Type B:
      1. Remove the screw.

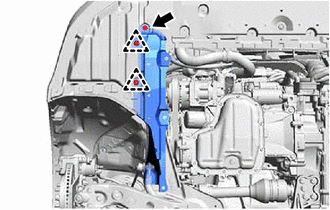

        GTY907706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the 2 clips and rear engine under cover RH from the vehicle.
  12. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 2

  13. DRAIN ENGINE COOLANT (for Fully Sealed Type)

    Refer to PROCEDURE - Step 1

  14. DRAIN ENGINE COOLANT (for Non-Fully Sealed Type)

    Refer to PROCEDURE - Step 2

  15. DRAIN CONTINUOUSLY VARIABLE TRANSAXLE FLUID

    Refer to PROCEDURE - Step 3

  16. REMOVE ECM

    Refer to REMOVAL [09/2024 - ]

  17. DISCONNECT ENGINE WIRE
    1. Remove the 2 bolts to separate the engine wire from the vehicle.

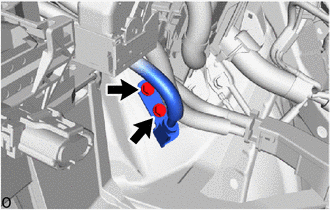

      GTY861568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 nuts to separate the engine wire from the positive (+) battery terminal.
      GTY801482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 3 clamps to separate the engine wire from the vehicle.

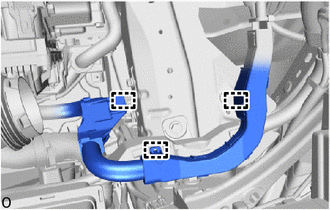

      GTY861567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE BATTERY CLAMP SUB-ASSEMBLY
    1. Disengage the clamp to separate the engine wire from the battery clamp sub-assembly.

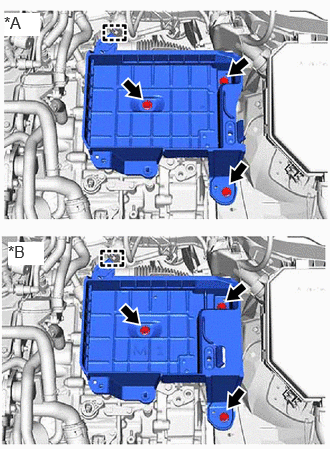

      GTY1019483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Type A
      *B Type B
    2. Remove the 3 bolts and battery clamp sub-assembly from the vehicle.
  19. DISCONNECT FLOOR SHIFT TRANSMISSION CONTROL SELECT CABLE

    Refer to PROCEDURE - Step 5

  20. DISCONNECT NO. 1 RADIATOR HOSE
    GTY801483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Slide the clip and disconnect the No. 1 radiator hose from the water outlet.
  21. DISCONNECT NO. 2 RADIATOR HOSE
    GTY832996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disengage the clamp to separate the No. 2 radiator hose.
    2. Slide the clip and disconnect the No. 2 radiator hose from the radiator assembly.
  22. DISCONNECT WATER INLET HOSE
    1. Slide the clip and disconnect the water inlet hose from the oil cooler assembly.

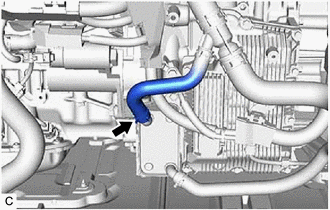

      GTY1108455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. DISCONNECT NO. 2 WATER BY-PASS HOSE
    1. Slide the clip and disconnect the No. 2 water by-pass hose from the oil cooler assembly.

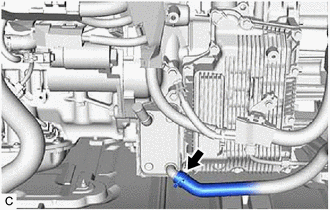

      GTY1103653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. DISCONNECT NO. 1 VACUUM HOSE CONNECTOR

    Refer to PROCEDURE - Step 4

  25. DISCONNECT NO. 1 FUEL VAPOR FEED HOSE
    1. Disengage the clamp to separate the No. 1 fuel vapor feed hose.
      GTY832997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the clip and disconnect the No. 1 fuel vapor feed hose from the vacuum surge tank.
  26. DISCONNECT INLET HEATER WATER HOSE
    1. Pull out the retainer to disengage the lock claws and pull off the inlet heater water hose.

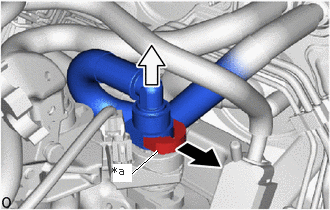

      GTY994020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      Pull out
      Pull off
    2. Check that there is no foreign matter on the sealing surfaces of the disconnected water lines. Clean them if necessary.
    3. Cover the disconnected flow shutting valve (water valve) and inlet heater water hose connector with plastic bags to prevent damage and contamination.
  27. DISCONNECT OUTLET HEATER WATER HOSE
    1. Pull out the retainer to disengage the lock claws and pull off the outlet heater water hose.
      GTY817460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      Pull out
      Pull off
    2. Check that there is no foreign matter on the sealing surfaces of the disconnected water lines. Clean them if necessary.
    3. Cover the disconnected No. 2 water by-pass pipe sub-assembly and outlet heater water hose connector with plastic bags to prevent damage and contamination.
  28. DISCONNECT FUEL TUBE SUB-ASSEMBLY
    1. Disengage the clamp to separate the fuel tube sub-assembly.
      GTY801314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the fuel tube sub-assembly from the fuel pump assembly.

      Refer to PRECAUTION [11/2022 - ]

  29. DISCONNECT NO. 4 WATER BY-PASS HOSE
    1. Slide the hose clip and disconnect the No. 4 water by-pass hose from the No. 2 water by-pass pipe assembly.
      GTY801307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  31. DISCONNECT SUCTION HOSE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  32. REMOVE COLUMN HOLE COVER SILENCER SHEET

    Refer to PROCEDURE - Step 13

  33. SEPARATE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

    Refer to PROCEDURE - Step 14

  34. SEPARATE NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  35. REMOVE FRONT FLOOR COVER LH (for Double Wishbone Type Suspension)

    Refer to PROCEDURE - Step 1

  36. REMOVE FRONT FLOOR COVER RH (for Double Wishbone Type Suspension)

    Refer to PROCEDURE - Step 2

  37. REMOVE FRONT FLOOR CENTER BRACE

    for Double Wishbone Type Suspension: Refer to PROCEDURE - Step 3

    for Torsion Beam Type Suspension: Refer to PROCEDURE - Step 1

  38. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

    for Double Wishbone Type Suspension: Refer to PROCEDURE - Step 4

    for Torsion Beam Type Suspension: Refer to PROCEDURE - Step 2

  39. REMOVE DRIVE SHAFT ASSEMBLY

    Refer to REMOVAL [09/2024 - ]

  40. REMOVE REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 19

  41. REMOVE REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  42. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
    1. Set the engine assembly with transaxle on an engine lifter.
      NOTE:
      • Using height adjustment attachments and plate lift attachments, keep the engine assembly with transaxle and front suspension crossmember sub-assembly level.
      • Do not perform any procedures while the engine assembly is suspended because doing so may cause the engine assembly to drop, resulting in injury. However, the engine assembly needs to be suspended when it is installed to or removed from an engine stand.
      • To prevent the engine assembly from unexpectedly moving, securely support the engine assembly until it is secured to an engine stand.
      • To prevent the oil pan sub-assembly from deforming, do not place any attachments under the oil pan sub-assembly of the engine assembly with transaxle.
    2. Type A:
      1. Remove the 2 bolts and nut and separate the engine mounting insulator sub-assembly RH from the engine mounting bracket RH.

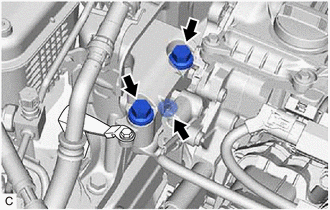

        GTY907995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Type B:
      1. Remove the 2 bolts and nut and separate the engine mounting insulator sub-assembly RH from the engine mounting bracket RH.

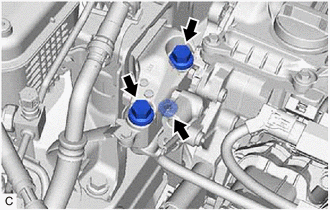

        GTY907992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the through bolt and nut and separate the engine mounting insulator LH from the engine mounting bracket LH.

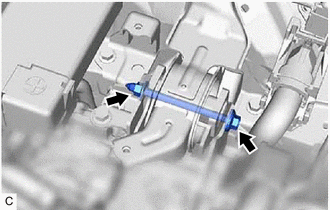

      GTY1019906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      While holding the nut in place, loosen the through bolt.

    5. Remove the 4 bolts to separate the front suspension crossmember sub-assembly from the vehicle.

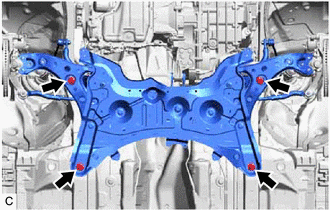

      GTY872353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Operate the engine lifter and remove the engine assembly with transaxle from the vehicle.
      NOTE:
      • Make sure that the engine assembly with transaxle is clear of all wiring and hoses.
      • While lowering the engine assembly with transaxle from the vehicle, do not allow it to contact the vehicle.
  43. REMOVE FUEL DELIVERY GUARD
    1. Remove the bolt and fuel delivery guard from the engine mounting bracket RH.

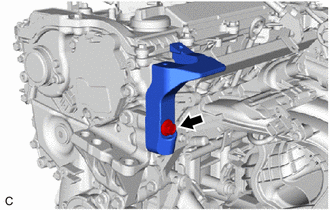

      GTY918516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. INSTALL ENGINE HANGER
    1. Install the No. 1 engine hanger and No. 2 engine hanger with the 4 bolts as shown in the illustration.

      Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

      HINT:

      No. 1 Engine Hanger 12281-25030
      No. 2 Engine Hanger 12282-25010
      Bolt 91552-F1040
      90105-A0354
      GTY835800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Engine Hanger
      *2 No. 2 Engine Hanger
      Bolt
    2. Attach an engine sling device and hang the engine assembly with transaxle with a chain block.
      NOTE:
      • Pay attention to the angle of the sling device as the engine assembly or No. 1 engine hanger and No. 2 engine hanger may be damaged or deformed if the angle is incorrect.
      • Do not perform any procedure while the engine assembly with transaxle is suspended because doing so may cause the engine assembly with transaxle to drop, resulting in injury. However, the engine assembly with transaxle needs to be suspended when it is installed to or removed from an engine stand.
  45. REMOVE ENGINE MOUNTING INSULATOR LH

    HINT:

    Perform this procedure only when replacement of the engine mounting insulator LH is necessary.

    1. Remove the 4 bolts, nut and engine mounting insulator LH from the vehicle.

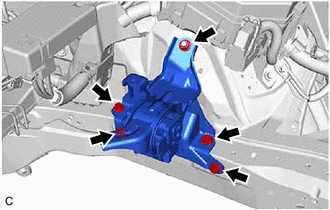

      GTY1019908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. REMOVE ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH

    HINT:

    Perform this procedure only when replacement of the engine mounting insulator sub-assembly RH is necessary.

    1. Type A:
      1. Remove the 2 bolts and No. 2 earth wire from the engine mounting insulator sub-assembly RH and vehicle.

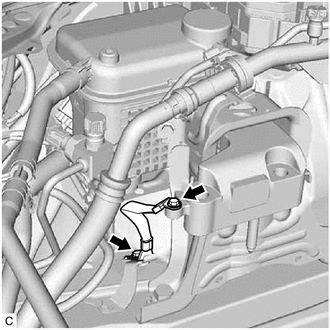

        GTY907993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Type B:

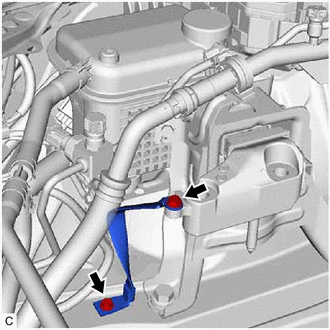

      1. Remove the 2 bolts and No. 2 earth wire from the engine mounting insulator sub-assembly RH and vehicle.
        GTY908219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Type A:
      1. Remove the bolt, nut and disconnect the air conditioner tube and accessory assembly.

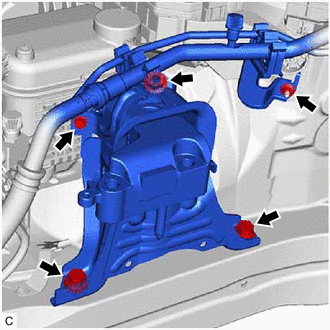

        GTY1026155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the 2 bolts, nut and engine mounting insulator sub-assembly RH from the vehicle.
    4. Type B:
      1. Remove the bolt, nut and disconnect the air conditioner tube and accessory assembly.

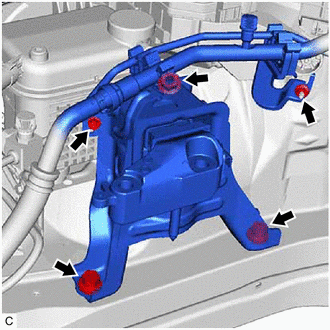

        GTY1020099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the 2 bolts, nut and engine mounting insulator sub-assembly RH from the vehicle.
  47. REMOVE STARTER ASSEMBLY

    Refer to PROCEDURE - Step 6

  48. REMOVE FLYWHEEL HOUSING SIDE COVER
    1. Remove the flywheel housing side cover from the cylinder block sub-assembly.
      GTY801320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. REMOVE ENGINE WIRE
    1. Disconnect all the clamps and connectors and remove the engine wire from the engine assembly with transaxle.
  50. REMOVE MANIFOLD STAY

    for Double Wishbone Type Suspension: Refer to PROCEDURE - Step 9

    for Torsion Beam Type Suspension: Refer to PROCEDURE - Step 7

  51. REMOVE DRIVE SHAFT HEAT INSULATOR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 33

  52. REMOVE FLYWHEEL HOUSING UNDER COVER
    1. Disengage the 2 claws and guide to remove the flywheel housing under cover from the cylinder block sub-assembly.

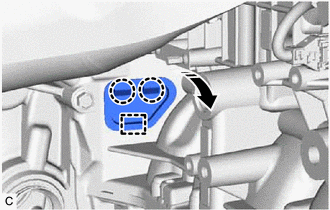

      GTY879820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  53. REMOVE DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT

    Refer to PROCEDURE - Step 35

  54. REMOVE ENGINE ASSEMBLY
    1. Remove the 8 bolts and engine assembly from the continuously variable transaxle assembly.

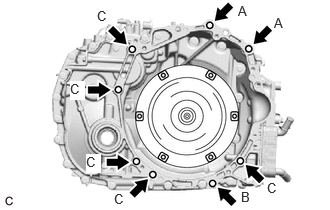

      GTY880960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      To prevent damage to the 2 knock pins, do not pry between the continuously variable transaxle assembly and engine assembly.

      HINT:

      • Bolt (A), (B): Remove from continuously variable transaxle assembly side.
      • Bolt (C): Remove from engine assembly side.
  55. REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  56. REMOVE NO. 1 CRANKSHAFT POSITION SENSOR PLATE

    Refer to PROCEDURE - Step 3

  57. REMOVE V-RIBBED BELT

    Refer to PROCEDURE - Step 2

  58. REMOVE GENERATOR ASSEMBLY
  59. REMOVE COMPRESSOR ASSEMBLY WITH PULLEY

    Refer to PROCEDURE - Step 6

  60. INSTALL ENGINE TO ENGINE STAND
    1. Install the engine assembly to an engine stand.
  61. REMOVE ENGINE HANGER
    1. Remove the 4 bolts, No. 1 engine hanger and No. 2 engine hanger.
