Removal [11/2022 - ]: Procedure

PRECAUTION
NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

Refer to BEFORE DISCONNECTING BATTERY [09/2022 - ]
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2
REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 9 [11/2022 - 03/2023] , or refer to PROCEDURE - Step 9 [03/2023 - 09/2024] , or refer to PROCEDURE - Step 9 [09/2024 - ]
REMOVE INTAKE MANIFOLD
Refer to REMOVAL [11/2022 - ]

REMOVE FLYWHEEL HOUSING SIDE COVER

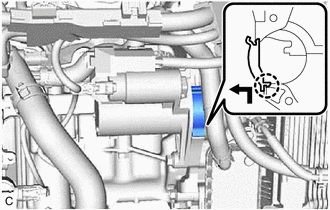

Disengage the claw as shown in the illustration to remove the flywheel housing side cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE STARTER ASSEMBLY

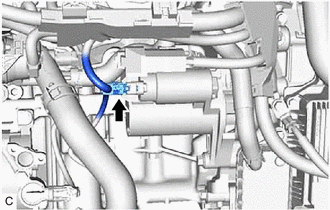

Disconnect the starter assembly connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

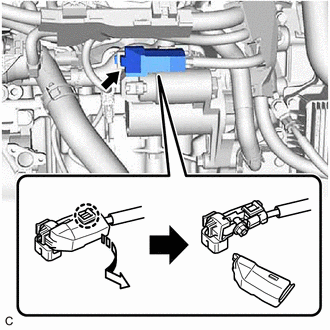

Disengage the claw and remove the starter assembly cover (cover B) from the starter assembly cover (base) and starter assembly cover (cover A).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

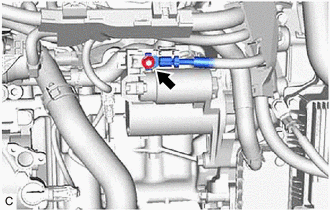

Remove the nut to disconnect the engine wire from terminal 30.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

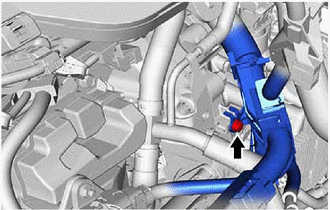

Remove the bolt and disconnect the engine wire.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

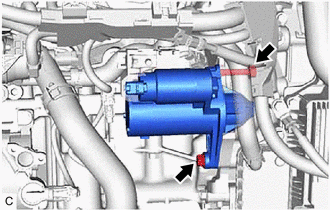

Remove the 2 bolts and starter assembly.

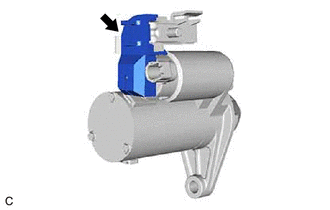

Remove the starter assembly cover (cover A) from the starter assembly cover (base).

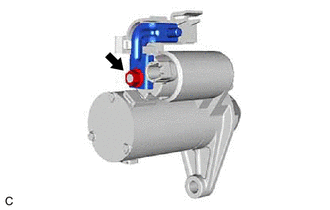

Remove the nut and starter terminal from the starter assembly.

Disengage the 2 claws and remove the starter terminal from the starter assembly cover (base).
