Removal [01/2019 - ]: Procedure

  1. REMOVE REAR ENGINE UNDER COVER RH

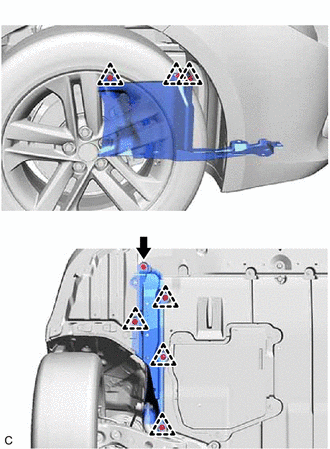

    1. Type A:
      1. Remove the screw, 7 clips and rear engine under cover RH from the vehicle.
        GTY919752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Type B:
      1. Remove the screw, 8 clips and rear engine under cover RH from the vehicle.
        GTY907693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE V-RIBBED BELT

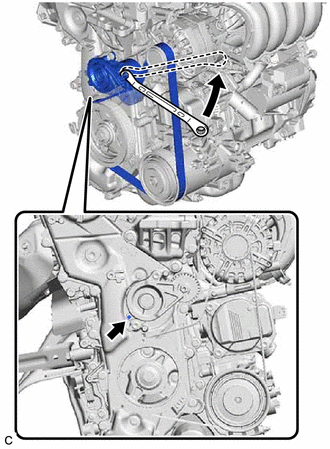

    1. Release the V-ribbed belt tension by turning the V-ribbed belt tensioner assembly counterclockwise.
      GTY918732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the V-ribbed belt tensioner assembly counterclockwise to align its holes, and then insert a 5 mm hexagon wrench to secure the V-ribbed belt tensioner assembly.
    3. Remove the V-ribbed belt.
