Removal [09/2024 - ]: Procedure

  1. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  2. SECURE STEERING WHEEL

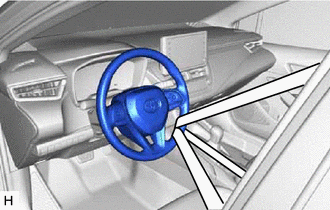

    1. Secure the steering wheel with the seat belt in order to prevent rotation.
      GTY940784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      This operation is useful to prevent damage to the spiral cable.

  3. REMOVE COLUMN HOLE COVER SILENCER SHEET

    Refer to PROCEDURE - Step 13

  4. SEPARATE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

    Refer to PROCEDURE - Step 14

  5. SEPARATE NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY

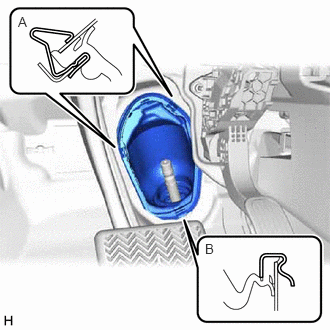

    1. Separate the clip (A), disengage the clip (B) from the vehicle body and separate the No. 1 steering column hole cover sub-assembly.
      NOTE:

      Do not damage the clips (A) or (B).

      GTY894378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FRONT WHEELS

    Refer to REMOVAL [09/2022 - ]

  7. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    for M20A-FKS: Refer to PROCEDURE - Step 9

    for 2ZR-FXE: Refer to PROCEDURE - Step 7

    for G16E-GTS: Refer to PROCEDURE - Step 9

  8. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH (for G16E-GTS)

    Refer to PROCEDURE - Step 2

  9. REMOVE PIN HOLD CLIP (for G16E-GTS)

    Refer to PROCEDURE - Step 4

  10. REMOVE FRONT FENDER LINER RETAINER (for G16E-GTS)

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 32

  11. REMOVE FRONT BUMPER ASSEMBLY (for G16E-GTS)

    Refer to REMOVAL [09/2024 - ]

  12. DRAIN WASHER FLUID (for G16E-GTS)

    Refer to PROCEDURE - Step 6

  13. REMOVE INLET HOSE (for G16E-GTS)

    Refer to PROCEDURE - Step 19

  14. REMOVE WINDSHIELD WASHER JAR ASSEMBLY (for G16E-GTS)

    Refer to PROCEDURE - Step 20

  15. REMOVE NO. 2 ENGINE UNDER COVER AIR GUIDE (for G16E-GTS)

    Refer to PROCEDURE - Step 21

  16. REMOVE REAR ENGINE UNDER COVER LH (for G16E-GTS)

    Refer to PROCEDURE - Step 16

  17. REMOVE REAR ENGINE UNDER COVER LH (except G16E-GTS)

    for M20A-FKS: Refer to PROCEDURE - Step 10

    for 2ZR-FXE: Refer to PROCEDURE - Step 8

  18. REMOVE REAR ENGINE UNDER COVER RH

    for M20A-FKS: Refer to PROCEDURE - Step 11

    for 2ZR-FXE: Refer to PROCEDURE - Step 9

    for G16E-GTS: Refer to PROCEDURE - Step 24

  19. REMOVE REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY LH (except G16E-GTS)

    Refer to PROCEDURE - Step 19

  20. REMOVE REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY RH (except G16E-GTS)

    HINT:

    Perform the same procedure as for the LH side.

  21. REMOVE REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY LH (for G16E-GTS)

    Refer to PROCEDURE - Step 21

  22. REMOVE REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY RH (for G16E-GTS)

    Refer to PROCEDURE - Step 22

  23. SEPARATE FRONT STABILIZER LINK ASSEMBLY LH

    Refer to PROCEDURE - Step 23

  24. SEPARATE FRONT STABILIZER LINK ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  25. SEPARATE TIE ROD END SUB-ASSEMBLY LH

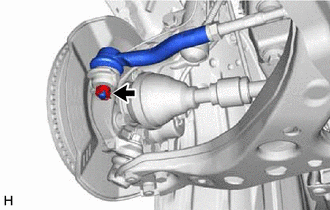

    1. Remove the cotter pin and nut.
      GTY904435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

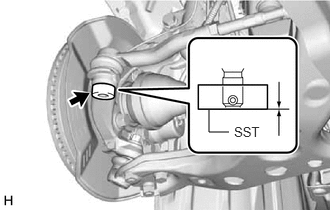

    2. Install SST to the tie rod end sub-assembly LH.
      GTY914457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09960-20010
        1. 09961-02060
      NOTE:

      Make sure that the upper ends of the tie rod end sub-assembly LH and SST are aligned.

    3. Secure SST using a string.
      NOTE:

      Be sure to tighten the string firmly to secure SST to the steering knuckle LH to prevent SST from falling off.

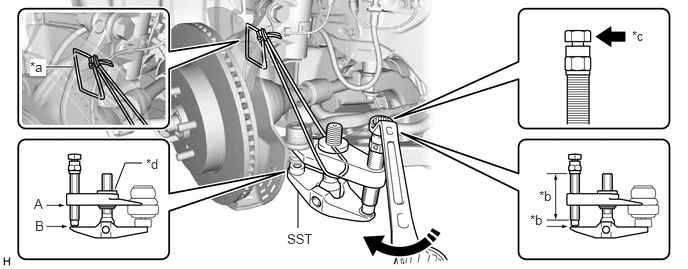

    4. Using SST, separate the tie rod end sub-assembly LH from the steering knuckle LH.
      • SST: 09960-20010
        1. 09961-02010
      GTY943798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a String *b Molybdenum Grease Application Area
      *c Place wrench here *d Center Nut
      Turn - -
      WARNING:

      Apply molybdenum grease to the bolt threads and the tip of SST.

      NOTE:
      • Be sure to tighten the string firmly to secure SST to the steering knuckle LH to prevent SST from falling off.
      • Install SST with the center nut so that (A) and (B) shown in the illustration are parallel. Otherwise, the ball joint dust cover may be damaged.
      • Be sure to place the wrench on the part shown in the illustration.
      • Do not damage the front disc brake dust cover.
      • Do not damage the ball joint dust cover.
      • Do not damage the steering knuckle LH.
  26. SEPARATE TIE ROD END SUB-ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  27. SEPARATE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH

    for G16E-GTS: Refer to PROCEDURE - Step 7

    except G16E-GTS: Refer to PROCEDURE - Step 7

  28. SEPARATE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  29. REMOVE FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY

    for G16E-GTS: Refer to PROCEDURE - Step 30

    except G16E-GTS: Refer to PROCEDURE - Step 29

  30. REMOVE NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY
    1. Remove the No. 1 steering column hole cover sub-assembly from the steering link assembly.
  31. REMOVE STEERING LINK ASSEMBLY (except G16E-GTS)
    1. Remove the 2 bolts, 2 nuts and steering link assembly from the front suspension crossmember sub-assembly.
      GTY574063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

  32. REMOVE STEERING LINK ASSEMBLY (for G16E-GTS)

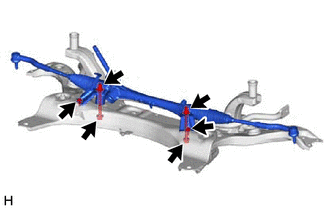

    1. Remove the 4 bolts and 2 nuts to the steering link assembly, No. 2 steering rack housing bracket and No. 1 steering rack housing bracket from the front suspension crossmember sub-assembly.
      GTY1115181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

  33. SECURE STEERING LINK ASSEMBLY

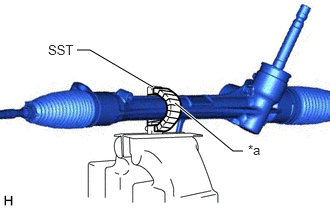

    1. Using SST, secure the steering link assembly in a vise.
      • SST: 09612-00012
      GTY890599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

      HINT:

      Wrap SST with protective tape before use.

  34. REMOVE TIE ROD END SUB-ASSEMBLY LH
    1. Put matchmarks on the tie rod end sub-assembly LH and steering gear assembly.
      GTY925743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    2. Remove the tie rod end sub-assembly LH and lock nut.
  35. REMOVE TIE ROD END SUB-ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.
