Installation [03/2019 - ]: Procedure

  1. REMOVE ENGINE STAND

    HINT:

    Conduct the following operation with the assistance of a second person.

    1. Connect both hooks of the special tool 0 490 567 (11 0 020) to the front and back of the engine with the engine hangers.
      GTY907883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09200-WA860

      HINT:

      The workshop crane, lifting gear and the engine hangers on the engine must all be connected to each other so that the engine hangs straight upon lifting.

    2. Raise the engine slowly.
    3. Release the bolts (1) and remove the engine stand attachment No. 2.
      GTY908808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the No. 1 front engine mounting bracket RH (2).
      GTY946096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Tighten the E12 bolts (1).

      Torque: 38 N.m (387 kgf/cm, 28 ft.lbf)

  2. INSTALL ENGINE ASSEMBLY
    WARNING:
    • Components connected to the engine joint or cross member.

      Danger of injury!

      • Check lifting eyes and engine mounting brackets for damage, e.g. cracks.
      • Attach the component to correctly mounted engine joints or cross members only.
      • Exclusively lift the component, do not move it forwards, backwards or in transverse direction.
    1. Install and lower the engine.
    2. Make sure that the No. 1 front engine mounting brackets rest completely on the front engine mounting insulators.
    3. Tighten down E14 bolt (1).
      GTY1154433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 100 N.m (1020 kgf/cm, 74 ft.lbf)

      NOTE:

      In order to prevent play, lower the engine completely before screwing the engine mount and engine mounting bracket.

    4. Tighten down E14 bolt (1).
      GTY1154434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 100 N.m (1020 kgf/cm, 74 ft.lbf)

      NOTE:

      In order to prevent play, lower the engine completely before screwing the engine mount and engine mounting bracket.

    5. Release both hooks of the special tool 0 490 567 (11 0 020) at the front and back of the engine from the engine hangers.
      GTY907883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09200-WA860
    6. Unscrew the bolts (1) of the special tool 2 459 012.
      GTY946360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09200-WA610
    7. Feed out the special tool 2 459 012 at the cylinder head and remove.
      • SST: 09200-WA610
  3. CONNECT WATER HOSE

    HINT:

    Make sure that the connections are locked correctly. The locks must engage audibly.

    1. Connect and lock No. 6 water by-pass hose (3).
      GTY946079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect and lock the radiator reserve tank hose (1) and No. 7 water by-pass hose (2).
    3. Connect and lock the No. 6 radiator hose (1) to the water pump sub-assembly (2).
      GTY946344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect and lock the No. 7 water by-pass hose (1) to the water pump sub-assembly (2).
      GTY946342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Feed in and install No. 1 water by-pass hose (1).
      GTY946078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Connect and lock No. 1 water by-pass hose (1), heater water hose (2), No. 7 water by-pass hose (3) and No. 5 water by-pass hose (4) in the marked areas.
  4. INSTALL SUCTION PIPE SUB-ASSEMBLY
    1. Replace O-ring.
    2. Position suction pipe sub-assembly (2).
      GTY925936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Tighten the T45 bolts (1).

      Torque: 19 N.m (194 kgf/cm, 14 ft.lbf)

  5. INSTALL AIR CONDITIONING TUBE ASSEMBLY
    1. Replace O-ring.
    2. Position air conditioning tube assembly (2).
      GTY945555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Tighten the T45 bolts (1).

      Torque: 19 N.m (194 kgf/cm, 14 ft.lbf)

  6. INSTALL GENERATOR WIRE
    1. Insert and install the generator wire.
    2. Tighten nut.

      Torque: 19 N.m (194 kgf/cm, 14 ft.lbf)

  7. INSTALL OIL COOLER TUBE
    1. Position the oil cooler tube in the No. 1 automatic transmission oil cooler tube clamp (2).
      GTY946468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten down T25 screw (1).

      Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)

  8. TEMPORARILY TIGHTEN AUTOMATIC TRANSMISSION ASSEMBLY

    Refer to PROCEDURE - Step 2 [07/2020 - ] , or refer to PROCEDURE - Step 2 [07/2020 - ]

  9. FULLY TIGHTEN AUTOMATIC TRANSMISSION ASSEMBLY

    Refer to PROCEDURE - Step 4 [07/2020 - ] , or refer to PROCEDURE - Step 6 [07/2020 - ]

  10. INSTALL NO. 2 MANIFOLD STAY

    Refer to PROCEDURE - Step 3 [07/2020 - ] , or refer to PROCEDURE - Step 5 [07/2020 - ]

  11. INSTALL PROPELLER SHAFT ASSEMBLY

    Refer to PROCEDURE - Step 10 [07/2020 - ] , or refer to PROCEDURE - Step 15 [07/2020 - ]

  12. INSTALL ENGINE REAR MOUNTING MEMBER

    Refer to PROCEDURE - Step 12 [07/2020 - ] , or refer to PROCEDURE - Step 17 [07/2020 - ]

  13. INSTALL FLOOR HEAT INSULATOR

    Refer to PROCEDURE - Step 13 [07/2020 - ] , or refer to PROCEDURE - Step 18 [07/2020 - ]

  14. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR

    Refer to PROCEDURE - Step 4 [03/2019 - 07/2022] , or refer to PROCEDURE - Step 4 [07/2022 - ]

  15. INSTALL FRONT FLOOR COVER LH

    Refer to PROCEDURE - Step 6 [03/2019 - 07/2022] , or refer to PROCEDURE - Step 8 [07/2022 - ]

  16. INSTALL FRONT FLOOR COVER RH

    HINT:

    Use the same procedure as for the LH side.

  17. INSTALL EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY

    Refer to INSTALLATION [03/2019 - ]

  18. INSTALL STARTER ASSEMBLY

    Refer to INSTALLATION [03/2019 - ]

  19. INSTALL NO. 2 RADIATOR HOSE

    Refer to PROCEDURE - Step 1

  20. CONNECT NO. 3 RADIATOR HOSE

    HINT:

    Make sure that the connections are locked correctly. The locks must engage audibly.

    GTY946082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect and lock the No. 3 radiator hose (1).
  21. INSTALL NO. 2 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  22. INSTALL IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2

  23. INSTALL OXYGEN SENSOR

    Refer to PROCEDURE - Step 1

  24. INSTALL WIDE RANGE AIR FUEL RATIO SENSOR

    Refer to PROCEDURE - Step 1

  25. INSTALL AIR CLEANER HOSE ASSEMBLY

    Refer to PROCEDURE - Step 1

  26. INSTALL AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 1

  27. INSTALL FAN SHROUD

    Refer to INSTALLATION [03/2019 - ]

  28. INSTALL FRONT UPPER FENDER PROTECTOR LH

    Refer to PROCEDURE - Step 2 [03/2019 - 07/2020] , or refer to PROCEDURE - Step 2 [07/2020 - ]

  29. INSTALL FRONT UPPER FENDER PROTECTOR RH

    HINT:

    Use the same procedure described for the LH side.

  30. CONNECT NO. 2 FUEL VAPOR FEED HOSE
    1. Connect and lock the No. 2 fuel vapor feed hose (1).
      GTY946083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the clamp.
  31. CONNECT CONNECTOR TO BRAKE BOOSTER TUBE
    1. Connect and lock the connector to brake booster tube (1).
      GTY946077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. INSTALL FLOOR WIRE
    1. Clip in the floor cable (1) for the voltage supply of the power distribution box in the marked area.
      GTY946075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL ENGINE ROOM ECM BOX
    NOTE:
    • Improper routing of cables and wiring harnesses.

      Trapped, crushed or damaged cables may cause short circuits and malfunctions.

      • Route all cables without abrasions, do not trap and crush.
    1. Feed the engine room ECM box (2) into the guide and install.
      GTY946386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten the bolts (1).

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

    3. Feed the wiring harnesses into the holder at the engine room ECM box.
    4. Engage the 3 clamps
    5. Connect connectors (1) and lock.
    6. The locks (1) and (2) must engage audibly.
      GTY946387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL NO. 1 INTEGRATION RELAY

    Refer to INSTALLATION [03/2019 - 07/2020] , or refer to INSTALLATION [07/2020 - ]

  35. INSTALL WIRE HARNESS CLAMP BRACKET
    1. Install wire harness clamp bracket (2) for the generator wire.
      GTY946087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten the E8 screws (1).

      Torque: 6.0 N.m (61 kgf/cm, 4 ft.lbf)

    3. Clip in the lines in the marked areas.
  36. POSITIVE BATTERY CABLE
    1. Position the starter wire (3).
      GTY946455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Secure clamps (2).
    3. Tighten nut (1).

      Torque: 19 N.m (194 kgf/cm, 14 ft.lbf)

    4. Insert and install the generator wire (3).
      GTY946446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Secure clamps (2).
    6. Tighten nut (1).

      Torque: 19 N.m (194 kgf/cm, 14 ft.lbf)

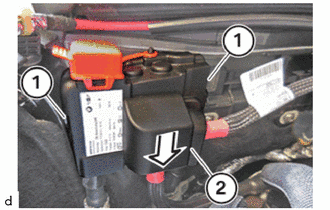

    7. Insert and install the cover (2) in the direction of the arrow.
      GTY945956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. The locks (1) must engage audibly.
  37. INSTALL NO. 1 ENGINE COVER

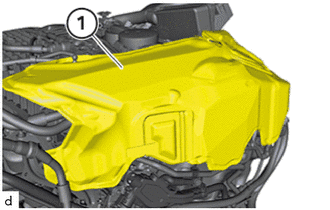

    1. Make sure the No. 1 engine cover (1) is correctly positioned on the rear side of the engine.
      GTY945849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the No. 1 engine cover (1) from the top and clip it in at the grommets into the marked areas.
      GTY946104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY
    NOTE:
    • Damage to the No. 1 engine cover sub-assembly.

      Jerky movements during disassembly and excessive application of force during installation may result in breakage of the No. 1 engine cover sub-assembly.

      • Disassemble or mount the No. 1 engine cover sub-assembly carefully.
      • Disassemble or mount snap-lock couplings of the ball pivots one after the other.
      • Disassemble or mount No. 1 engine cover sub-assembly only at temperatures >20 °C.

        Vehicle information / Control unit list / DME / Call up control unit functions / Diagnostic request / Diagnostic request / 117 Ambient temperature

      • Use only distilled water as an auxiliary material during installation, no lubricants.

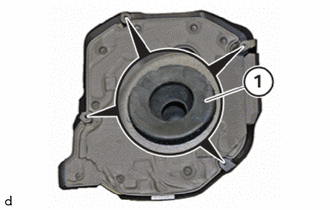

    1. Check the rubber mount (1) for correct fit in the No. 1 engine cover sub-assembly.
      GTY945709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install No. 1 engine cover sub-assembly (1) and fix in the grommets (marks).
      GTY907898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. INSTALL NO. 2 COWL TOP VENTILATOR LOUVER PROTECTOR

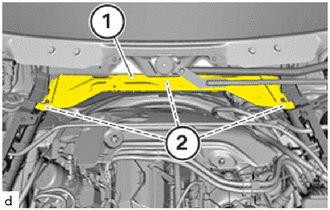

    1. Position the No. 2 cowl top ventilator louver protector (1).
      GTY899591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten down bolts and nut (2).

      Torque: 2.6 N.m (27 kgf/cm, 23 in.lbf)

  40. INSTALL COWL TOP VENTILATOR LOUVER PROTECTOR
    1. Position the cowl top ventilator louver protector (2).
      GTY899602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten the bolts (1).

      Torque: 2.6 N.m (27 kgf/cm, 23 in.lbf)

  41. INSTALL UPPER FRONT SUSPENSION CENTER BRACE
    1. Position upper front suspension center brace (3).
      GTY899603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Replace E14 bolts (1) and bolts (2).
    3. Tighten the E14 bolts (1).

      Torque: 56 N.m (571 kgf/cm, 41 ft.lbf)

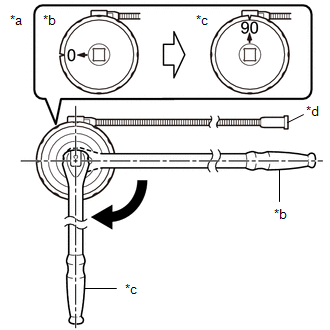

    4. Using SST, tighten the E14 bolts (1) an additional 90°.
      • SST: 09900-WA010

      HINT:

      • The magnetic portion is used to secure the gauge to the vehicle.
      • After first adjusting the needle of the gauge to 0°, tighten to the specified angle.
      • Perform the work procedure carefully so that the gauge, etc. does not become tilted.
      GTY859569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Example
      *b Before Tightening
      *c After Tightening
      *d Magnetic Portion
    5. Tighten the bolts (2).

      Torque: 56 N.m (571 kgf/cm, 41 ft.lbf)

    6. Using SST, tighten the bolts (2) an additional 90°.
      • SST: 09900-WA010

      HINT:

      • The magnetic portion is used to secure the gauge to the vehicle.
      • After first adjusting the needle of the gauge to 0°, tighten to the specified angle.
      • Perform the work procedure carefully so that the gauge, etc. does not become tilted.
      GTY859569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Example
      *b Before Tightening
      *c After Tightening
      *d Magnetic Portion
  42. INSTALL HOOD TO COWL TOP SEAL
    1. Press the hood to cowl top seal (1) into the guide.
      GTY945554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Feed the cable into the brackets in the marked area.
    3. Make sure that the hood to cowl top seal (1) and the cable are fitted correctly.
  43. INSTALL FRONT WIPER MOTOR AND LINK ASSEMBLY

    Refer to INSTALLATION [03/2019 - ]

  44. REMOVE AND INSTALL HOOD SUPPORT ASSEMBLY
    1. Support the hood sub-assembly by hand.

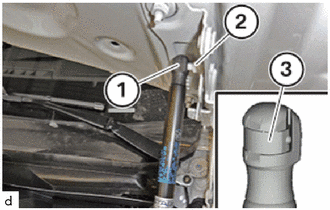

    2. Remove the special tool 0 493 647 (51 2 170) (3) from the ball pin (2).
      GTY899615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09800-WA030
    3. Pull off the special tool 0 493 647 (51 2 170) (3) from the gas pressure spring (1).
      • SST: 09800-WA030
    4. Continue to support the hood sub-assembly and repeat the operation on the other side of vehicle.
      WARNING:
      • Shutting hood sub-assembly or tailgate.

        Danger of injury!

        • Support hood sub-assembly/tailgate in fully open position with the aid of a suitable device.
    5. Check the clamp (3) is fitted correctly.
      GTY899614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Connect ball socket (1) to ball pin (2).
    7. Continue to support the hood sub-assembly and repeat the operation on the other side of vehicle.
  45. ADD ENGINE OIL

    Refer to PROCEDURE - Step 9

  46. INSTALL OIL FILLER CAP ASSEMBLY

    Refer to PROCEDURE - Step 10

  47. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT

    Refer to REPLACEMENT [03/2019 - ]

  48. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to INSTALLATION [03/2019 - ]

  49. ADD ENGINE COOLANT (for High Pressure)

    Refer to PROCEDURE - Step 3

  50. ADD ENGINE COOLANT (for Low Pressure)

    Refer to PROCEDURE - Step 5

  51. INSPECT FOR COOLANT LEAK

    Refer to ON-VEHICLE INSPECTION [03/2019 - ]

  52. CHECK ENGINE OIL LEVEL

    Refer to PROCEDURE - Step 1

  53. ADJUST AUTOMATIC TRANSMISSION FLUID LEVEL

    Refer to ADJUSTMENT [03/2019 - ]

  54. INSTALL FRONT SUSPENSION MEMBER LOWER PROTECTOR

    Refer to INSTALLATION [03/2019 - ]

scientia non olet · About LEMON Manuals
