Installation [03/2019 - 07/2022]: Procedure

1. Installation sequence:
   1. Position propeller shaft assembly with center bearing on automatic transmission.
   2. Position the propeller shaft assembly with center bearing at the rear axle differential.
   3. Position center No. 1 support bearing assembly.
2. Screw-fastening sequence:
   1. Insert nut
   2. Flexible coupling to automatic transmission
   3. Center No. 1 support bearing assembly
3. Check propeller shaft spline sleeve (1) for damage; replace if necessary.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Coat the propeller shaft spline sleeve (1) of the propeller shaft assembly with center bearing with Lubricant Olistamoly 2 LN 584 LO.

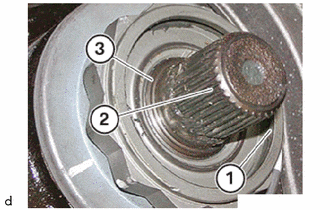

5. Clean all residue from the recessed collar (1) of the flange nut and the gearing (2) on the bevel gear (3) and degrease the components.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

6. Coat the collar insert (1) of the propeller shaft assembly with center bearing with Lubricating Grease Optitemp HT 1 LF.
   NOTE:

   • Damage to the output flange.
   • Failure to observe the greasing specifications may lead to damage on the output flange.
     • Do not contaminate the thread of the output flange with grease.
7. Remove adhesive residue from the thread (1) of the propeller shaft hub and clean it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

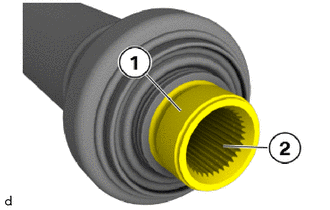

8. Clean the hub gearing (2) and subsequently coat it with Lubricating Grease Optitemp HT 1 LF.

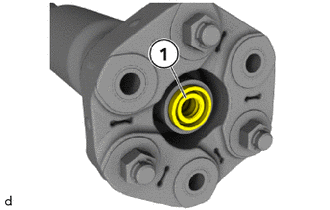

9. Replace insert nut.
10. Insert the insert nut.
11. Replace the seal and the retaining clip.
12. Position the seal and the retaining clip.
13. In order to avoid a humming noise of the drivetrain after reinstalling the propeller shaft assembly with center bearing: It is essential to reassemble the three-hole flange with the flexible coupling in the highlighted position.

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

14. Replace the 18 mm bolts and the 18 mm nuts.

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

15. Temporarily install the propeller shaft assembly with center bearing with the 18 mm bolts and 18 mm nuts.

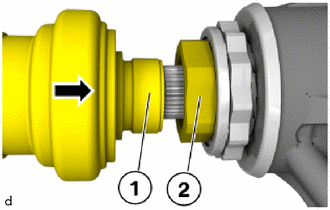

16. Push the propeller shaft assembly with center bearing (1) in the direction of the arrow against the insert nut (2) up to the limit position.

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

17. Manually screw on and tighten the insert nut (2) onto the propeller shaft assembly with center bearing (1) by a minimum of two threads.
18. center mount with TOP marking:

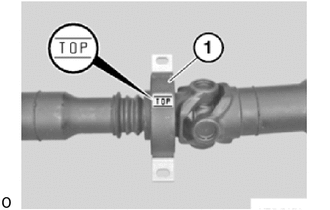

    1. The center mount (1) must be installed with the TOP marking at the top in the gearbox tunnel.

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

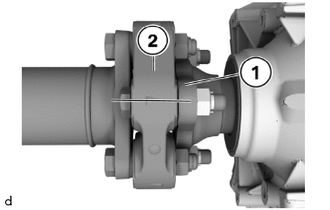

19. Position the propeller shaft assembly with center bearing (2).

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

20. Position bolts (1).
21. Secure the propeller shaft assembly with center bearing against twisting at the central universal joint using a suitable tool.

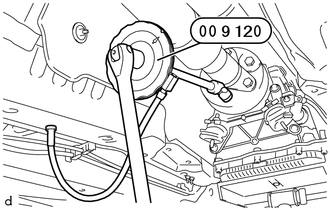

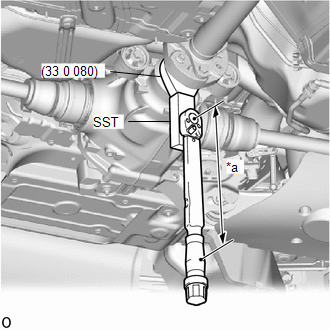

22. Tighten the insert nut in anti-clockwise direction using SST 0 496 959 (33 0 080) and SST.
    • SST: 09900-WA280
    • SST: 09500-WA170

    Torque

    100 N*m (1020 kgf*cm, 74 ft.*lbf)

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    *a	Torque Wrench Fulcrum Length

    NOTE:

    • Damage to the flange nut.
    • Failure to observe the installation specifications may lead to serious damage to the flange nut and the rear axle differential.
      • Do not use the double hexagon flange nut as counter support.
      • Screw in the insert nut within 5 minutes.

    HINT:

    Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

    Refer to PRECAUTION [03/2019 - ]

23. Screw the insert nut within 5 min.
24. Hold down the 18 mm bolts of the flexible coupling on the 18 mm nuts and tighten over the 18 mm bolts.

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    • SST: 09900-WA010

    Torque: 55 N*m (561 kgf*cm, 41 ft.*lbf)

25. Tighten the 18 mm bolts an additional 90° and counter support them at the 18 mm nuts.

    HINT:

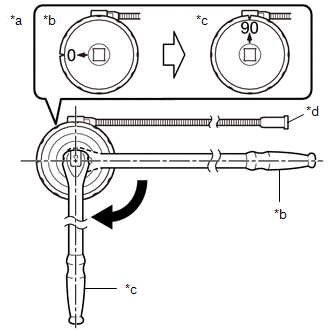

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    *a	Example
    *b	Before Tightening
    *c	After Tightening
    *d	Magnetic Portion

    • The magnetic portion is used to secure the gauge to the vehicle.
    • After first adjusting the needle of the gauge to 0°, tighten to the specified angle.
    • Perform the work procedure carefully so that the gauge, etc. does not become tilted.
26. Tighten the bolts (1).

    Torque: 21.4 N*m (218 kgf*cm, 16 ft.*lbf)

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 12 [03/2019 - 07/2020] , or refer to PROCEDURE - Step 17 [07/2020 - ]

1. Position the front No. 1 floor heat insulator of the tank (3).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Tighten the sheet metal nuts (2).

   Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)

3. Tighten the screws (1).

   Torque: 2.6 N*m (27 kgf*cm, 23 in.*lbf)

Refer to INSTALLATION [03/2019 - ]

1. Insert the front floor cover LH (2).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Tighten all screws (arrows) and nut (1).

   Torque: 2.6 N*m (27 kgf*cm, 23 in.*lbf)

HINT:

Use the same procedure as for the LH side.

Refer to PROCEDURE - Step 2
