Installation [03/2019 - ]: Procedure

  1. INSTALL AIR CLEANER ASSEMBLY

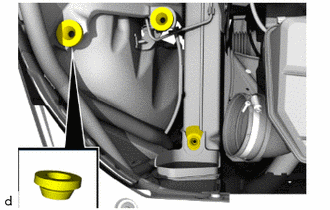

    1. Check the air cleaner support for correct fit.
      GTY946296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Feed the air cleaner assembly in and engage it in the air cleaner supports.
    3. Connect connectors and lock.

      HINT:

      • Note the installation position of the component. The component may be installed in various installation positions.
      • The connector must engage audibly.
    4. Tighten clamp.

      Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)
