Installation [03/2019 - ]: Procedure

  1. INSTALL AIR CLEANER HOSE ASSEMBLY
    1. Replace the gasket (1).

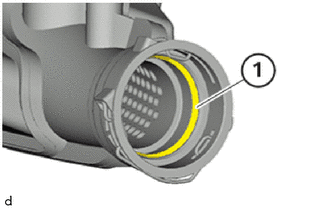

      GTY946290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Feed in air cleaner hose assembly (4) and install.

      HINT:

      The clamp must engage audibly.

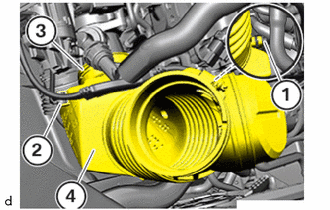

      GTY946185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Secure clamps (2) and (3).
    4. Connect the ventilation pipe sub-assembly (1) on the air cleaner hose assembly and lock.

      HINT:

      The ventilation pipe sub-assembly (1) must engage audibly.

  2. INSTALL AIR CLEANER ASSEMBLY

    Refer to INSTALLATION [03/2019 - ]

  3. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 38
