On-Vehicle Inspection [03/2019 - ]: Procedure

HINT:

Always check the engine oil level when the engine is at operating temperature (engine oil temperature > 70°C).

Vehicle information / Control unit list / DME / Call up control unit functions / Diagnostic request / Diagnostic request / 103 Engine oil tempreture

1. Park vehicle on a horizontal surface.
2. Stop engine.
3. Wait approximately 5 minutes.
4. When using the diagnosis system:
   1. Connect the diagnosis system to the vehicle and enter the following menus:

      Vehicle management / Service functions / Drive / Engine electronics / Engine oil / Motor oil quantity

5. When not using the diagnosis system:
   1. Read off the engine oil level in the combination meter assembly or on the multi-display assembly
6. Top up engine oil if necessary.

1. Remove the No. 1 engine cover sub-assembly.

   Refer to PROCEDURE - Step 12

2. Remove the oil filter cap assembly.

   Refer to PROCEDURE - Step 3

3. Remove the oil filter element.

   Refer to PROCEDURE - Step 6

4. Remount the oil filter element (1) in the special tool 2 410 238.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09200-WA550
5. If necessary, remount the O-ring (2).
6. Apply a small amount of engine oil to the O-ring.
7. Using a 32 mm socket wrench, install and tighten the special tool 2 410 238.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09200-WA550

   Torque: 25 N.m (255 kgf/cm, 18 ft.lbf)

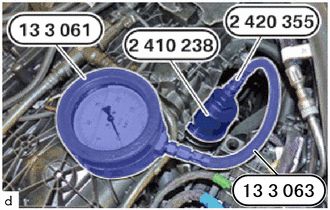

8. Connect special tool 0 491 260 (13 3 061) with special tools 0 491 262 (13 3 063), 2 420 355 and 2 410 238.
   • SST: 09200-WA55009200-WA56009200-WA93009200-WA950
9. Start the engine.
10. Measure the oil pressure, and check that the oil pressure changes according to engine speed.
11. Stop the engine.
12. Remove special tools 0 491 260 (13 3 061), 0 491 262 (13 3 063), 2 420 355 and 2 410 238.

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    • SST: 09200-WA55009200-WA56009200-WA93009200-WA950
13. Loosen the oil filter element (1) from the special tool 2 410 238.

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    • SST: 09200-WA550
14. If necessary, remount the O-ring (2).
15. Install the oil filter element.

    Refer to PROCEDURE - Step 7

16. Install the oil filter cap assembly.

    Refer to PROCEDURE - Step 8

17. Install the No. 1 engine cover sub-assembly.

    Refer to PROCEDURE - Step 38

18. Check engine oil level.

    See step  1
