Installation [08/2020 - ]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL ROOF HEADLINING ASSEMBLY

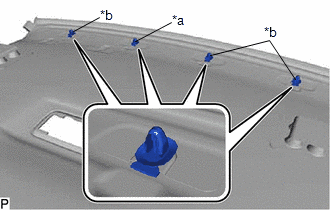

    1. Install the 4 clips to the roof headlining assembly.
      GTY868328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip (Black)
      *b Clip (White)

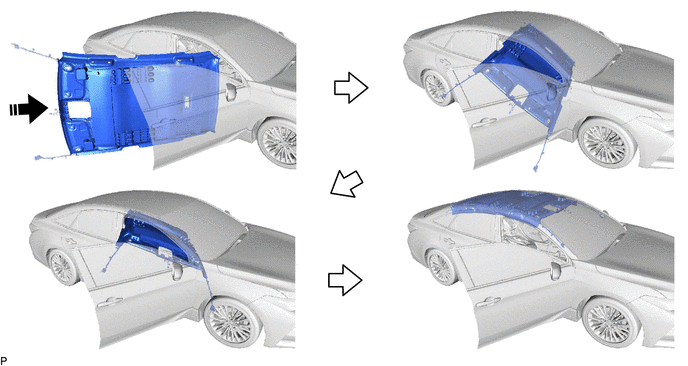

    2. Put the roof headlining assembly into the vehicle through the front door RH as shown in the illustration.
      GTY865440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
      NOTE:

      Do not damage the roof headlining assembly or vehicle interior.

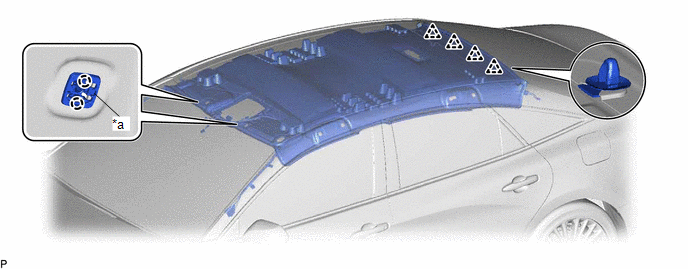

    3. for Roof Side (for Normal Roof):
      1. Engage the 2 claws to install the base of each visor holder.
        GTY903718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Base of Visor Holder - -
      2. Engage the 4 clips and install the roof headlining assembly.
    4. for Roof Side (for Moon Roof):

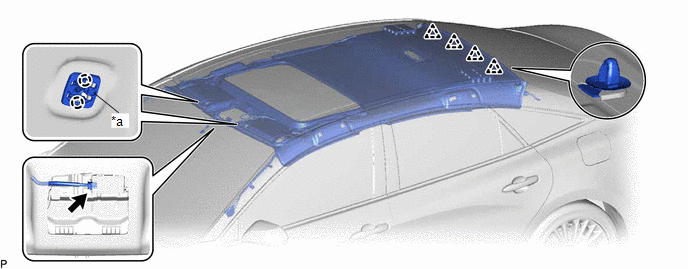

      1. Engage the 2 claws to install the base of each visor holder.
        GTY922234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Base of Visor Holder - -
      2. Engage the 4 clips and install the roof headlining assembly.
      3. Connect the connector.
    5. for Rear Pillar LH Side:
      1. Engage the guide.
      2. Connect the connector.
    6. for Rear Pillar RH Side:
      1. Engage the guide.
      2. Connect each connector.
    7. for Front Pillar LH Side:
      1. Remove the protective cover.
      2. Engage the 4 clamps.
      3. Connect the 2 connectors.
      4. Install the protective cover.
    8. for Front Pillar RH Side:
      1. Remove the protective cover.
      2. Engage the 2 clamps.
      3. Engage the guide.
      4. Connect the connector bracket with the bolt.
      5. Install the protective cover.
    9. for Windshield Glass Side:
      1. Connect each connector.
  2. INSTALL SUN ROOF OPENING TRIM MOULDING (for Moon Roof)

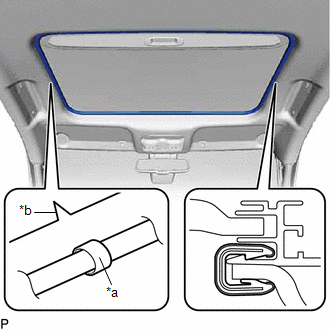

    1. Align the alignment tape on the sun roof opening trim moulding with the notch of the roof headlining assembly and install the sun roof opening trim moulding.
      NOTE:

      After installation, check that the corners fit correctly.

      GTY856944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Alignment Tape
      *b Notch

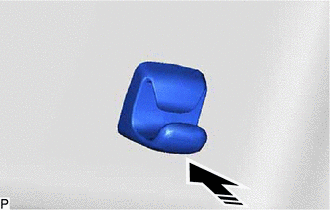

  3. INSTALL VISOR HOLDER LH
    1. Install the visor holder LH as shown in the illustration.
      GTY592312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  4. INSTALL VISOR ASSEMBLY LH
    NOTE:

    Make sure to install the visor assembly LH with its arrow facing the front of the vehicle.

    1. Connect the connector.

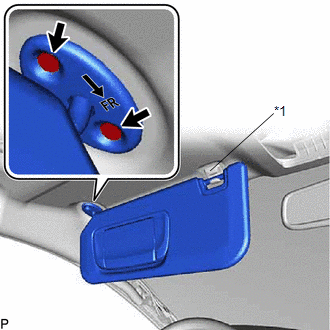

    2. Connect the visor assembly LH to the visor holder LH.
      GTY851558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Visor Holder LH
    3. for "TORX" Screw:
      1. Using a T25 "TORX" socket wrench, install the visor assembly LH with the 2 screws.
    4. except "TORX" Screw:
      1. Install the visor assembly LH with the 2 screws.
  5. INSTALL VISOR BRACKET COVER LH
    1. Engage the 4 claws to install the visor bracket cover LH.
  6. INSTALL VISOR HOLDER RH

    HINT:

    Use the same procedure as for the LH side.

  7. INSTALL VISOR ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  8. INSTALL VISOR BRACKET COVER RH

    HINT:

    Use the same procedure as for the LH side.

  9. INSTALL ASSIST GRIP SUB-ASSEMBLY

    HINT:

    Use the same procedure for all assist grip sub-assemblies.

    1. Install the 2 clips to the assist grip.
      GTY836559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Temporarily install the 2 assist grip covers to the assist grip as shown in the illustration.

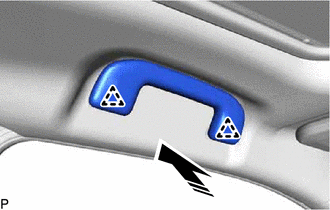

    3. Engage the 2 clips to install the assist grip sub-assembly as shown in the illustration.
      GTY903404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

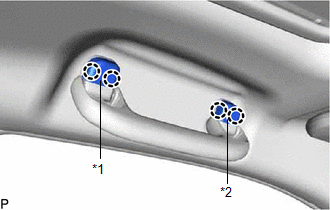

    4. Engage the 4 claws to install the assist grip cover LH and assist grip cover RH.
      GTY941551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Assist Grip Cover LH
      *2 Assist Grip Cover RH
      NOTE:

      Make sure that the clip is engaged securely.

  10. INSTALL REAR ASSIST GRIP ASSEMBLY LH

    HINT:

    Use the same procedure as for the assist grip sub-assembly.

  11. INSTALL REAR ASSIST GRIP ASSEMBLY RH

    HINT:

    Use the same procedure as for the assist grip sub-assembly.

  12. INSTALL NO. 1 FORWARD RECOGNITION COVER

    Refer to PROCEDURE - Step 3 [04/2018 - 08/2021] , or refer to PROCEDURE - Step 3 [08/2021 - ]

  13. INSTALL NO. 2 FORWARD RECOGNITION COVER

    Refer to PROCEDURE - Step 4 [04/2018 - 08/2021] , or refer to PROCEDURE - Step 4 [08/2021 - ]

  14. INSTALL SPOT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  15. INSTALL ROOF CONSOLE BOX ASSEMBLY

    Refer to PROCEDURE - Step 1

  16. INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY

    for UA80E: Refer to INSTALLATION [04/2018 - ]

    for UB80F: Refer to INSTALLATION [08/2020 - ]

    for P710: Refer to INSTALLATION [04/2018 - ]

  17. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to INSTALLATION [04/2018 - ]

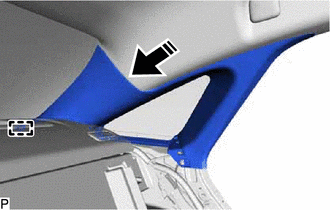

  18. INSTALL ROOF SIDE INNER GARNISH LH
    1. Install 3 new clips to the roof side inner garnish LH.
    2. Engage the guide as shown in the illustration.
      GTY869127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

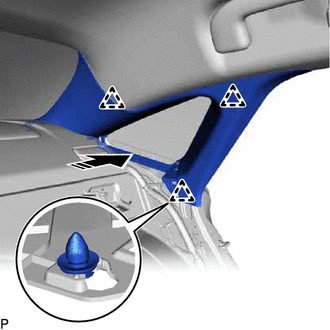

    3. Engage the 3 clips to install the roof side inner garnish LH as shown in the illustration.
      GTY863848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  19. INSTALL ROOF SIDE RAIL GARNISH ASSEMBLY LH

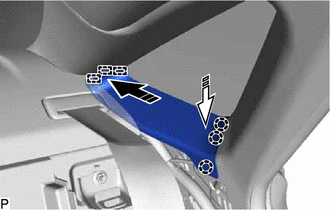

    1. Engage the 3 guides and 3 claws as indicated by the arrows, in the order shown in the illustration to install the roof side rail garnish assembly LH.
      GTY877774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
  20. INSTALL CENTER PILLAR UPPER GARNISH LH
    1. Install a new clip to the center pillar upper garnish LH.

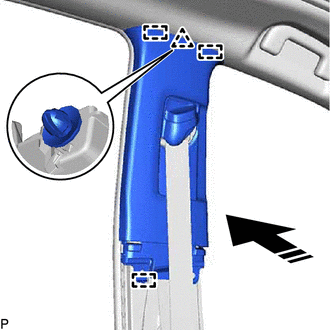

    2. Engage the 3 guides and clip as shown in the illustration.
      GTY874792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Install the center pillar upper garnish LH with the 2 clips.

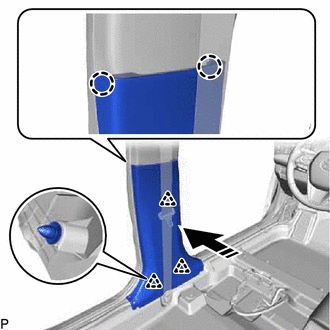

  21. INSTALL CENTER PILLAR LOWER GARNISH LH
    1. Engage the 2 claws and 3 clips to install the center pillar lower garnish LH as shown in the illustration.
      GTY891251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  22. CONNECT FRONT SEAT OUTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 6

  23. INSTALL LAP BELT OUTER ANCHOR COVER (for LH Side)

    Refer to PROCEDURE - Step 7

  24. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 1

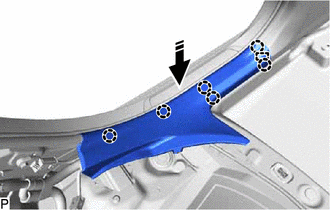

  25. INSTALL REAR DOOR SCUFF PLATE LH (for Gasoline Model)
    1. Engage the guide and 6 claws to install the rear door scuff plate LH as shown in the illustration.
      GTY936386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  26. INSTALL REAR DOOR SCUFF PLATE LH (for HV Model)

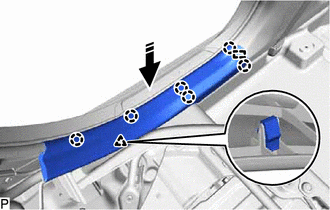

    1. Engage the guide, 6 claws and clip to install the rear door scuff plate LH as shown in the illustration.
      GTY881661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  27. INSTALL FRONT PILLAR GARNISH LH
    1. Remove the protective cover.
    2. Install 2 new front pillar garnish clips to the front pillar garnish LH.

      HINT:

      Make sure that the front pillar garnish clip is engaged correctly.

      GTY867397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Pillar Garnish Clip
      *2 Front Pillar Garnish LH

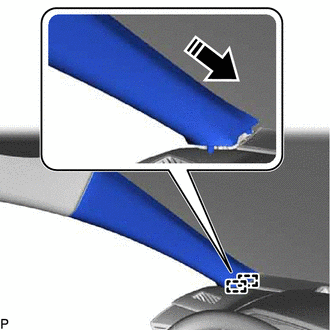

    3. w/o Front No. 3 Speaker:
      1. Push the front pillar garnish LH as shown in the illustration to engage the 2 guides.
        GTY898116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Install in this Direction
    4. w/ Front No. 3 Speaker:
      1. Connect the connector.
      2. Push the front pillar garnish LH as shown in the illustration to engage the 2 guides.

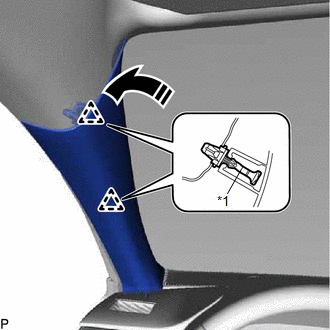

    5. Engage the 2 front pillar garnish clips to install the front pillar garnish LH as shown in the illustration.

      HINT:

      Make sure that the curtain shield airbag assembly LH is not pinched.

      GTY920477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Pillar Garnish Clip
      Install in this Direction
  28. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 1

  29. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH

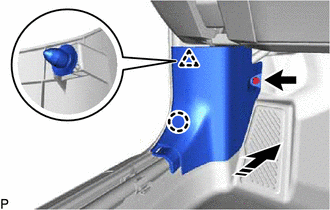

    1. Engage the claw and clip as shown in the illustration.
      GTY914678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the cowl side trim sub-assembly LH with the clip.

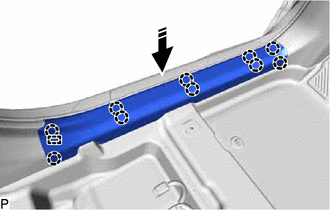

  30. INSTALL FRONT DOOR SCUFF PLATE LH
    1. Engage the guide and 10 claws to install the front door scuff plate LH as shown in the illustration.
      GTY846191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  31. INSTALL ROOF SIDE INNER GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  32. INSTALL ROOF SIDE RAIL GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  33. INSTALL CENTER PILLAR UPPER GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  34. INSTALL CENTER PILLAR LOWER GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  35. CONNECT FRONT SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  36. INSTALL LAP BELT OUTER ANCHOR COVER (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  37. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

  38. INSTALL REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  39. INSTALL FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  40. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

  41. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  42. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  43. INSTALL REAR SEAT ASSEMBLY

    Refer to INSTALLATION [08/2020 - ]

  44. INSTALL FRONT SEAT ASSEMBLY

    Refer to INSTALLATION [08/2020 - ]
