Installation [04/2018 - ]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL SPOT LIGHT ASSEMBLY
    1. Connect the connector.

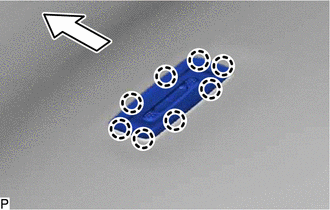

    2. Engage the 8 claws to install the spot light assembly.
      GTY894511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front
